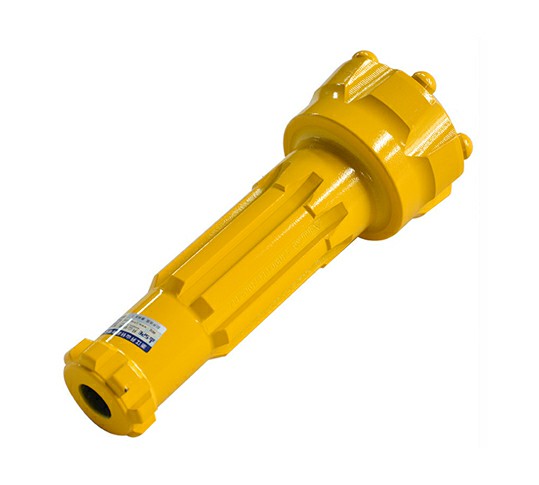

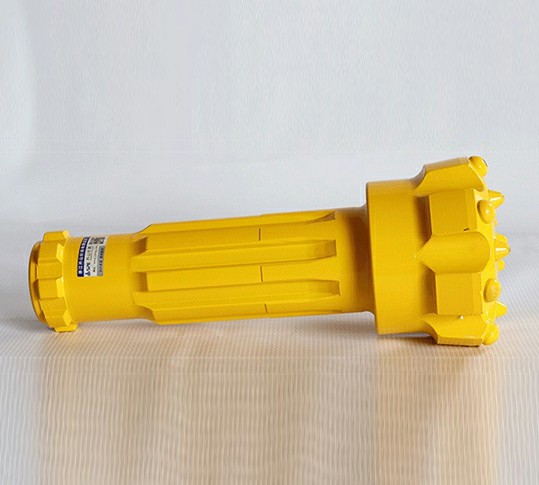

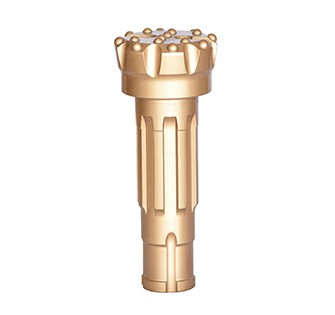

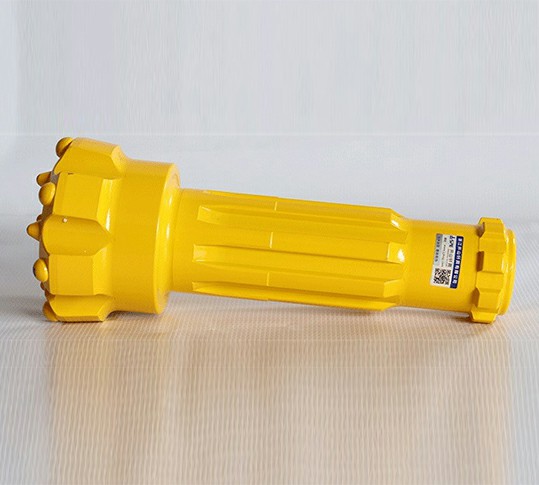

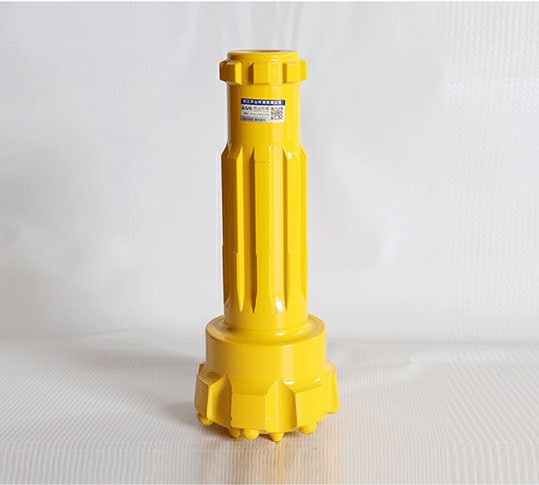

5-6 inch High Air Pressure DTH Bit

Overview:

5 inch high air pressure DTH bits
6 inch high air pressure DTH bits

Product Applications Product Features Technical Parameters Related Products

Applications

DTH drill bits are widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain.

Advantage of High Air Pressure DTH Bit

1. Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
2. Recommended for eliminating hole deviation
3. Widely used drifting and tunneling
4. Bit face design is ideal for medium-hard to hard abrasive rock

5 inch high air pressure DTH bits

Drill Bit

The Drill Head Diameter (mm)

Spline Key Number

Gauge Buttons

Front Buttons

Weight

Part No

135

2

7XΦ18

6XΦ14

15.0

HD55-135

140

2

7XΦ18

7XΦ14

16.0

HD55-140

146

2

7XΦ18

7XΦ14

17.0

HD55-146

152

2

8XΦ18

8XΦ14

17.5

HD55-152

165

2

8XΦ18

8XΦ16

18.5

HD55-165

135

2

7XΦ18

6XΦ14

15.5

SD5-135

140

2

7XΦ18

7XΦ14

16.0

SD5-140

146

2

7XΦ18

7XΦ14

16.5

SD5-146

152

2

8XΦ18

8XΦ14

17.0

SD5-152

165

2

8XΦ18

8XΦ16

18.0

SD5-165

135

2

7XΦ18

6XΦ14

15.5

QL50-135

140

2

7XΦ18

7XΦ14

16.0

QL50-140

146

2

7XΦ18

7XΦ14

16.5

QL50-146

152

2

8XΦ18

8XΦ14

17.0

QL50-152

165

2

8XΦ18

8XΦ16

18.0

QL50-165

135

2

7XΦ18

6XΦ14

12.5

HM5-135

140

2

7XΦ18

7XΦ14

13.5

HM5-140

146

2

7XΦ18

7XΦ14

14.0

HM5-146

152

2

8XΦ18

8XΦ14

14.4

HM5-152

165

2

8XΦ18

8XΦ16

15.0

HM5-165



6 inch high air pressure DTH bits

Drill Bit

The Drill Head Diameter (mm)

Spline Key Number

Gauge Buttons

Front Buttons

Weight

Part No

152

2

8XΦ18

7XΦ16

22.0

HD65-152

165

2

8XΦ18

8XΦ16

26.0

HD65-165

171

2

8XΦ18

8XΦ16

27.0

HD65-171

190

3

9XΦ18

9XΦ16

28.5

HD65-190

203

3

9XΦ18

11XΦ16

29.5

HD65-203

152

2

8XΦ18

7XΦ16

26.0

SD6-152

165

2

8XΦ18

8XΦ16

27.0

SD6-165

171

2

8XΦ18

8XΦ16

29.0

SD6-171

190

3

9XΦ18

9XΦ16

32.0

SD6-190

203

3

9XΦ18

11XΦ16

34.0

SD6-203

152

2

8XΦ18

7XΦ16

24.0

QL60-152

165

2

8XΦ18

8XΦ16

25.0

QL60-165

171

2

8XΦ18

8XΦ16

27.0

QL60-171

190

3

9XΦ18

9XΦ16

29.0

QL60-190

203

3

9XΦ18

11XΦ16

33.0

QL60-203

152

2

8XΦ18

7XΦ16

22.0

HM6-152

165

2

8XΦ18

8XΦ16

23.0

HM6-165

171

2

8XΦ18

8XΦ16

24.0

HM6-171

190

3

9XΦ18

9XΦ16

25.0

HM6-190

203

3

9XΦ18

11XΦ16

28.0

HM6-203
