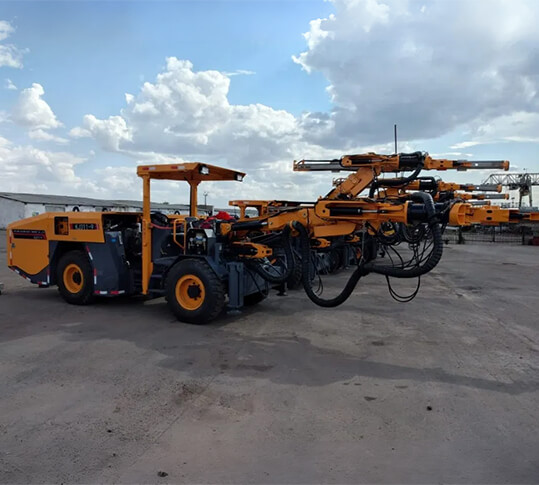

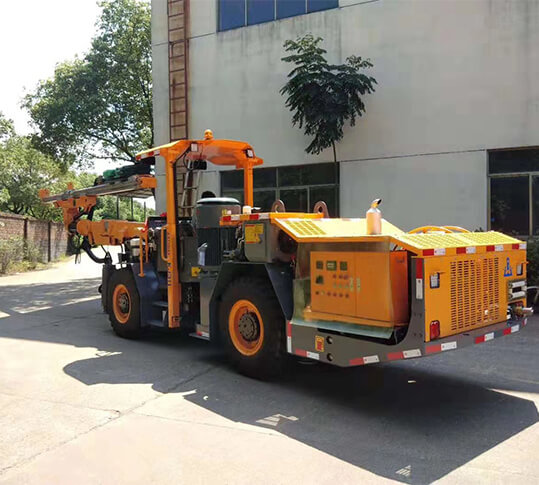

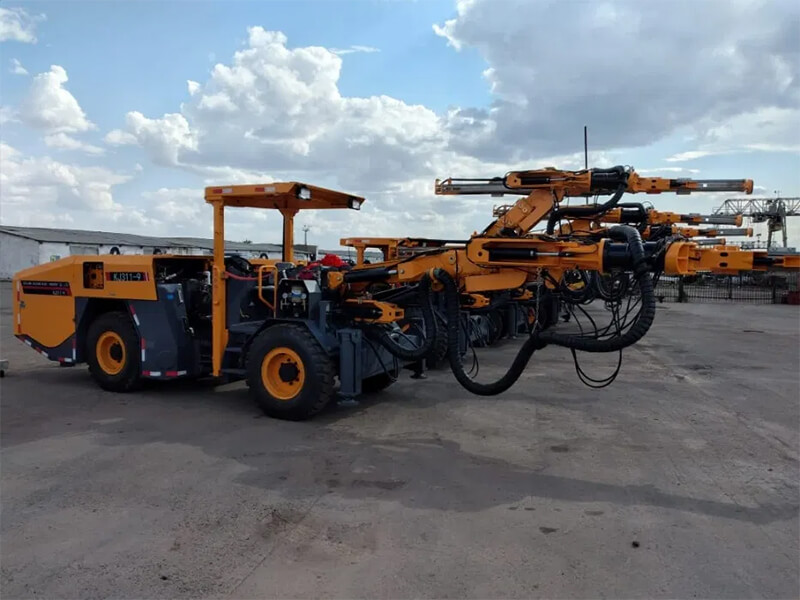

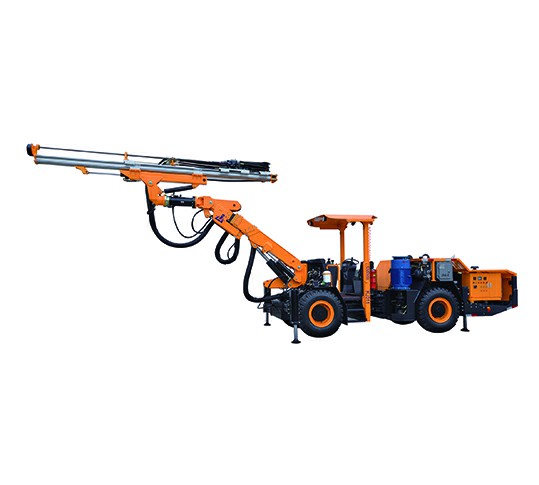

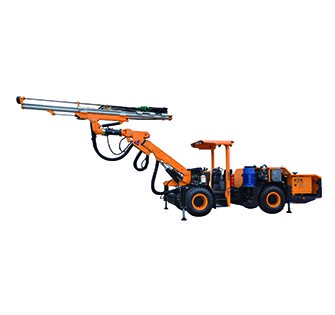

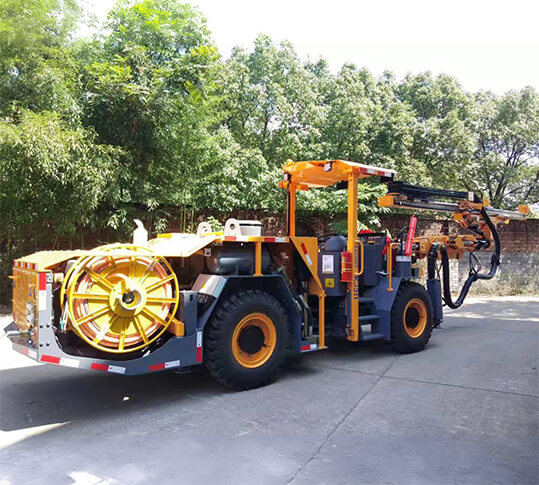

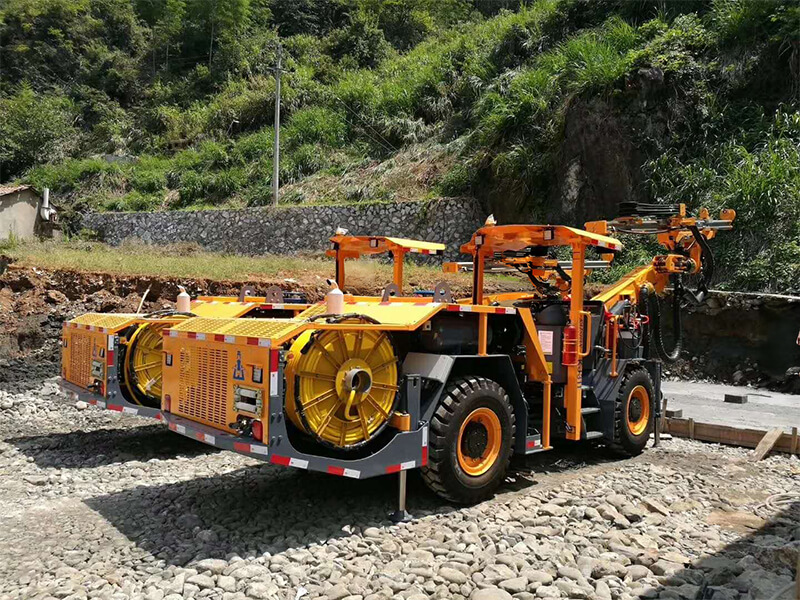

KJ311-CYTJ45(A) Hydraulic Tunneling Drilling Rig

Model: KJ311-CYTJ45(A)

Climbing capacity: ≤14°

Operating range: 3.5×3-6.5×5.5 m²

Product Applications Product Features Technical Parameters Related Products

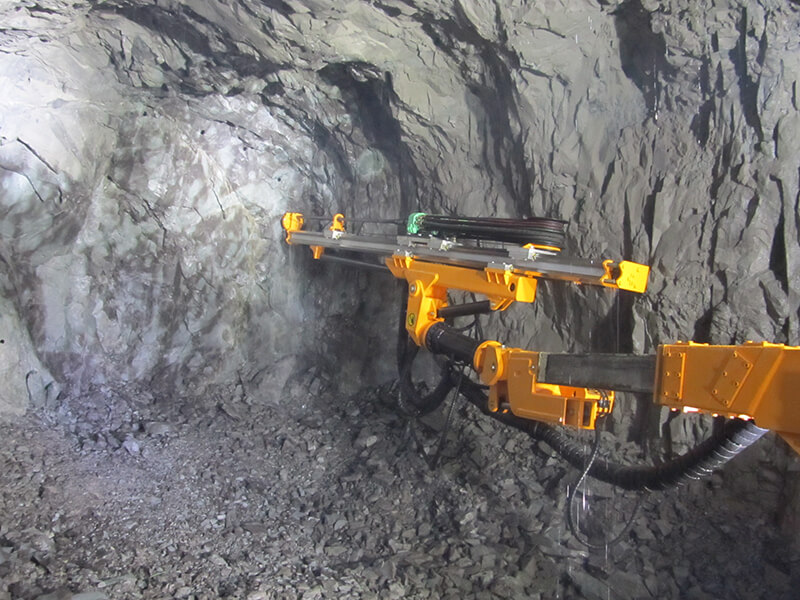

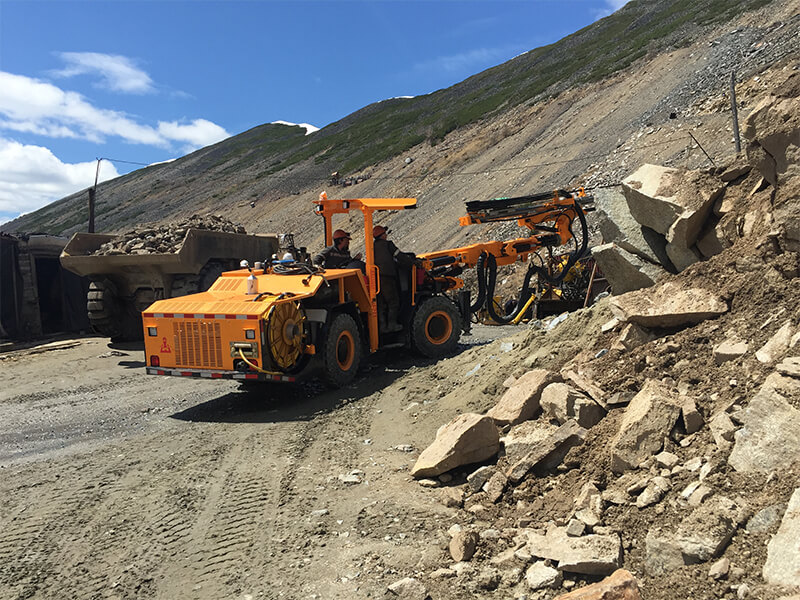

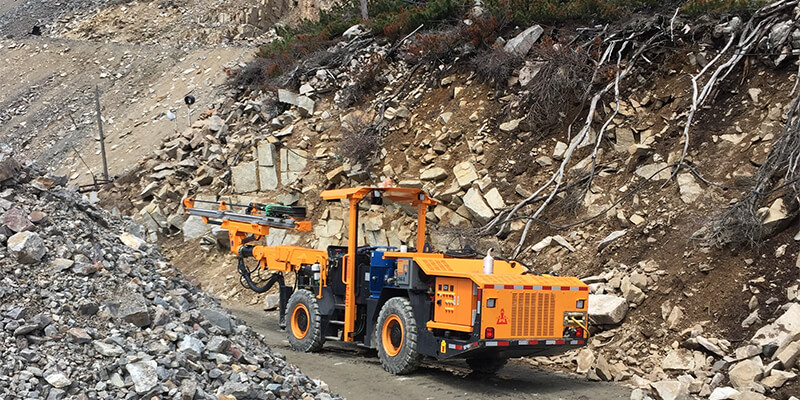

KJ311-CYTJ45(A) hydraulic tunneling drilling rig is suitably qualified for the drilling of hard rock mine whose section falls in the range of 12-35 square meters.


  • The firm flexible boom is capable of optical coverage of the section; 360° rotation and self-leveling beam make drill positioning easy; It can also be used for the drilling of lateral cross-cut and rock bolt;
  • The drill rig provides a good view for the operator; balanced layout and the articulated chassis of four-wheel drive ensure the flexible, fast and safe driving in the narrow tunnel;
  • The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and make it in good condition;
  • Considerable space and automatic functions enable the driver to concentrate on drilling in a safe, fast and accurate manner;
  • All the relevant parts are kept in good protection, meanwhile maintenance easily.

Technical Parameters

Technical Parameters
Dimensions and weight Air & water system
Length 11300mm Air compressor 1*JN5.5 Oil Consumption of lubrication 180-250g/h
Width 1750mm Capacity of air compressor 0.75m³/min
Height 2000/3000mm Pressure 6-8bar Power of water pump 1.5kW 4kW
Weight Appr. 12000㎏ Device of shank lubrication Electronic pulse lubrication pump
Tramming speed on flat ground 10km/h Air consumption of lubrication 0.3m³/min Capacity of water pump 3m3/h 6m3/h
Maximum climbing capacity 25%(14°) Chassis
Safety protection Diesel engine Cummins QSB3.9-C80-31
Tires 11.00-20
Noise level <100dB(A) Exhaust purification Exhaust catalyst Steering mechanism Articulated steering: ±40°
Lifting safety roof Meet the requirements of FOPS and ROPS Drive system Closed hydraulic system for four-wheel driving Parking braking Wet multidisc brake of reducer
    Swing angle Swing of rear axle: ±10° Travelling braking Two-circuit hydraulic brake
        Fuel tank 60L
Drilling system Electric hydraulic power unit
Rock drill HC50 HC95LMW/RD 18U HC95LMH/RD 22U Motor 45kW 55kW 75kW
Rod size R38 / T38 Impact /Feed/ Positioning Axial variable displacement piston pump
Impact power 13kW 20kW/18kW 21kW/22kW Rotation Gear pump
Impact Frequency 62Hz 62Hz/57Hz 62Hz/53Hz Filter fineness 10µ
Hole diameter Φ32-76mm Φ42-102mm Φ42-102mm Hydraulic oil tank 240L
Beam rotation 360° Hydraulic cooler Water cooler
Feed extension 1600mm Working voltage 380V
Model of drill boom K 26F Frequency 50Hz
Form of drill boom Self-leveling Starting method Star-triangle
Boom extension 1200mm Cable specifications 3×35+3G6 3×50+3G10
