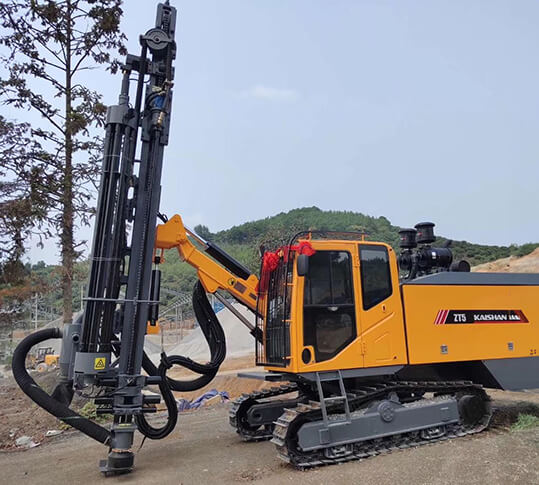

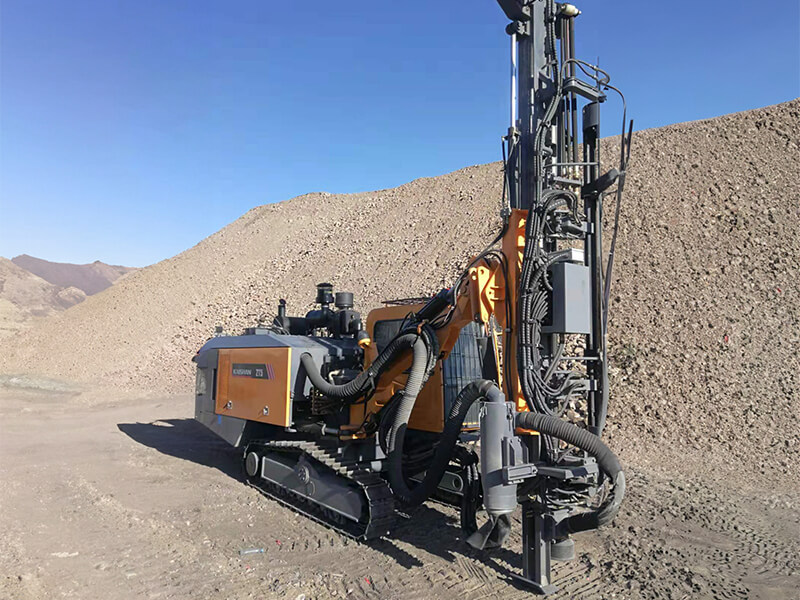

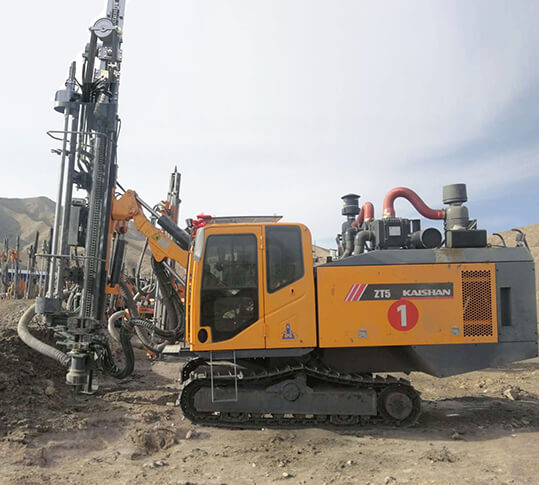

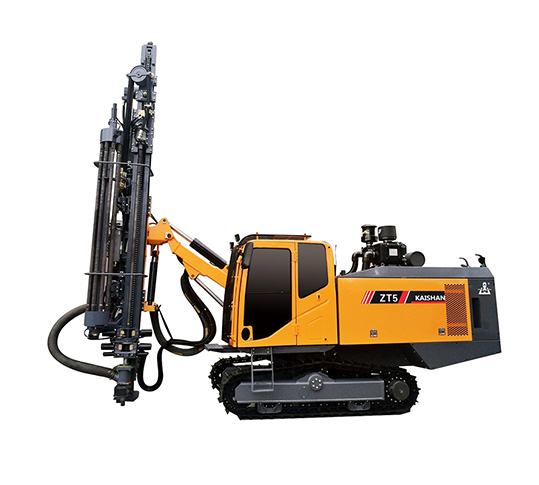

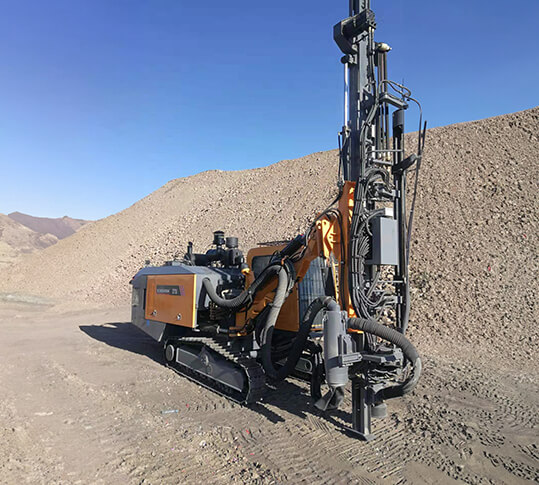

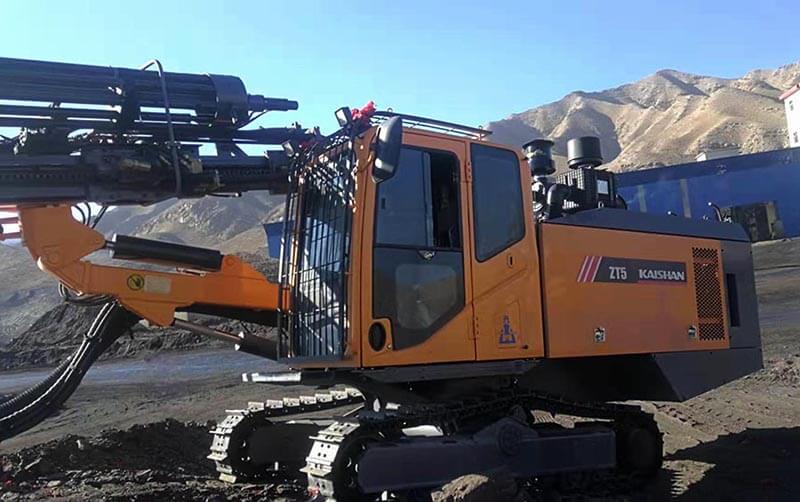

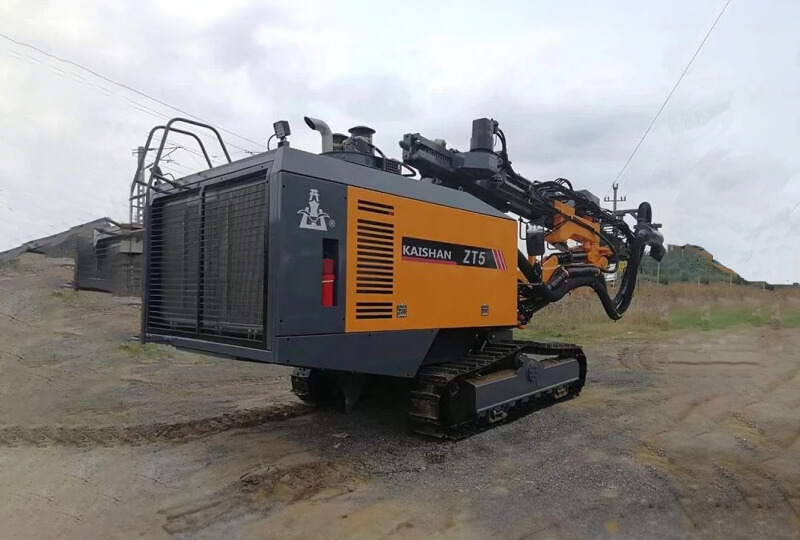

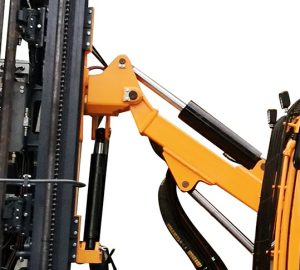

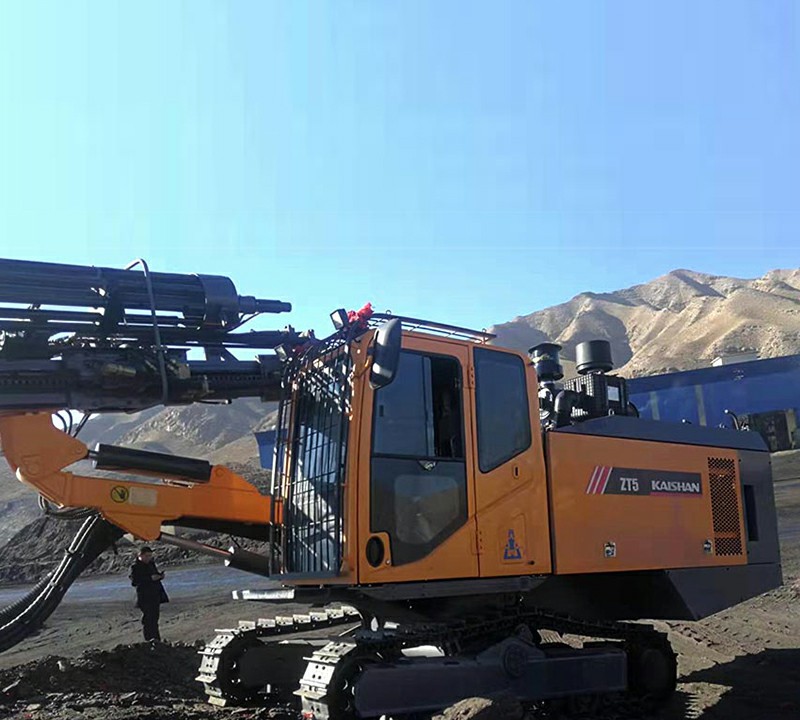

ZT5 Integrated Down the hole Drill Rig for Open Use

Technical Specifications: ZT5

Power: 176 kW /2200r/min

Drilling Diameter: 90-105 mm

Drilling Depth: 24 m

Product Applications Product Features Technical Parameters Related Products

Applications


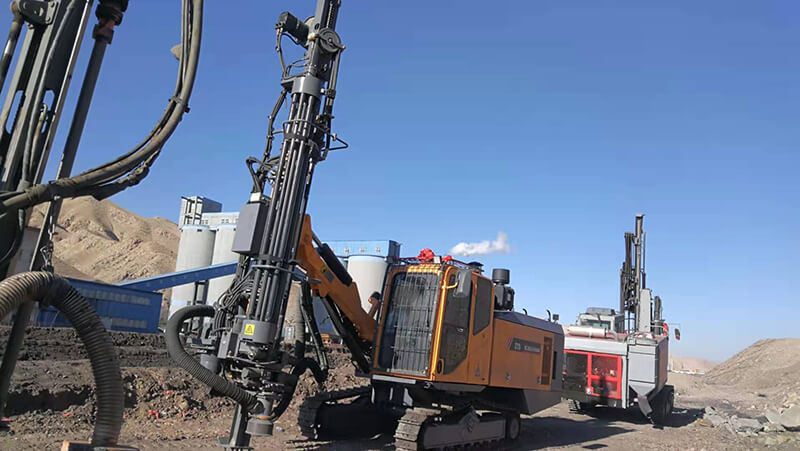

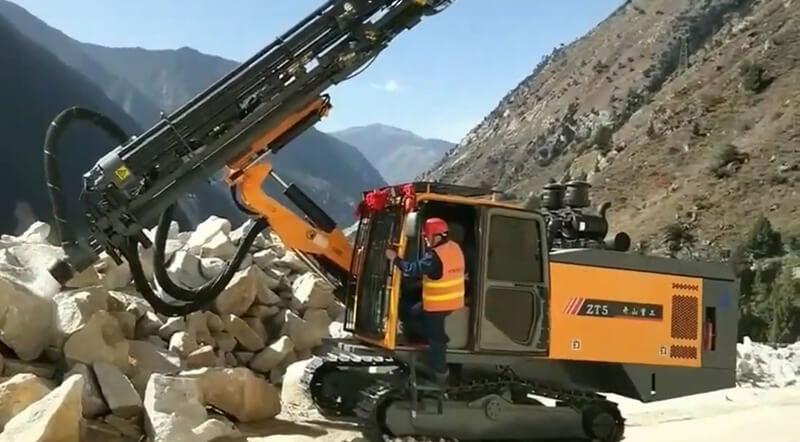

The ZT5 integrated down the hole drill rig for open use is a new drilling device developed by Kaishan Group after years of development and production of down the hole drill rig to meet the needs of large open-pit mines. Its travelling, propulsion, rotation and angle adjustments are based on hydraulic drive, thereby proving its powerfulness.

Features


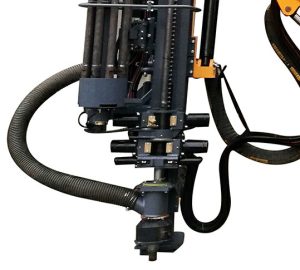

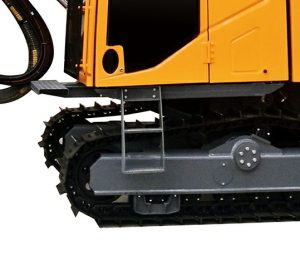

The high air-pressure screw nose and high air-pressure pneumatic Hammer contribute to efficient drilling. It is equipped with the dry hydraulic dust collector, thus reducing pollution. The hydraulic mechanism is used to dismount the drilling rod, the floating joint to protect the thread of drilling rod, the automatic unloading rod device to relieve labor intensity, the air-conditioned cab provides comfortable space and the anti-Jamming valve with automatic control reduces the possibility of sticking. And what is more, the drill rig is characterized by excellent integrity, high automation, efficient drilling,environment-friendliness, energy conservation, simple operation, flexibility and travelling,safety,etc.

Technical Parameters

Transport dimensions (L×W×H) 8850*2180*2830mm
Weight 13800Kg
Rock hardness f=6-20
Drilling diameter 90-105mm
Ground clearance 430mm
Leveling angle of track ±10°
Travelling speed 0-3Km/h
Climbing capacity 25°
Traction 120KN
Torque 1680N.m(Max)
Rotation speed 0-120rpm
Lifting angle of drill boom Up 47°, down 20°
Swing angle of drill boom Left 20°, right 50°
Swing angle of carriage Left 35°, right 95°
Tilt angle of beam 120°
Compensation stroke 1200mm
Rotation Head stroke 3490mm
Maximum propelling force 25KN
Method of propulsion Motor + roller chain
Depth of economical drilling 24m
Number of rods 7+1
Specifications of drilling rod Φ64x3000mm
DTH hammer M30
Engine YUCHAI YCA07240-T300
Rated power 176KW
Rated revolving speed 2200r/min
Screw air compressor Zhejiang Kaishan
Capacity 12m³/min
Discharge pressure 15bar
Traveling control system Hydraulic pilot
Drilling control system Hydraulic pilot
Anti-Jamming Automatic electro-hydraulic anti-jamming
Voltage 24V DC
Safe cab Meet the requirements of ROPS & FOPS
Indoor noise Below 85dB (A)
Seat Adjustable
Air-conditioning Standard temperature
Entertainment Radio
