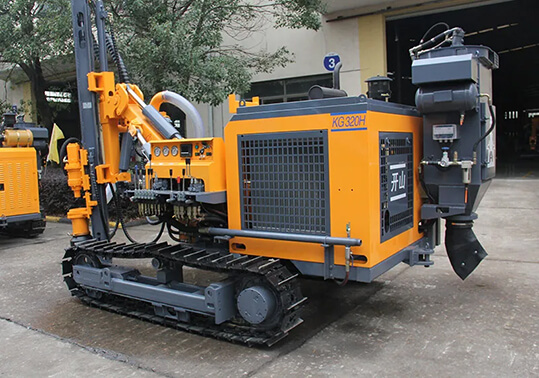

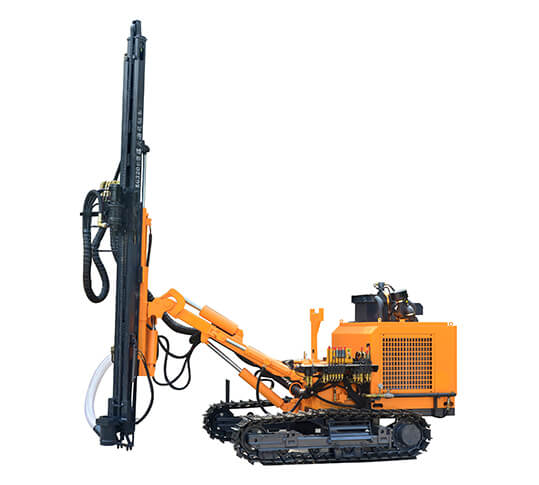

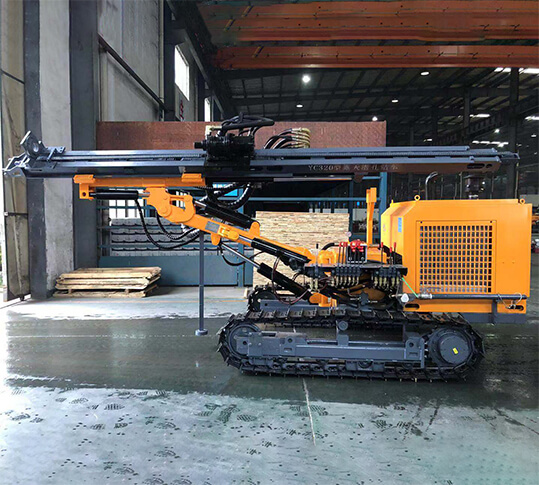

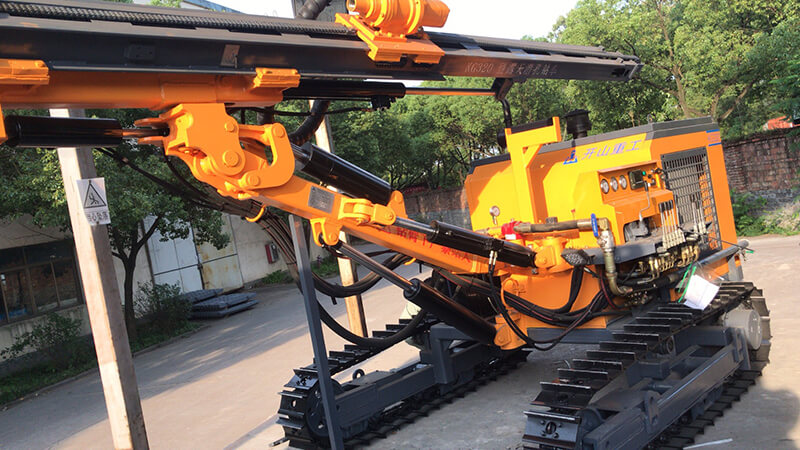

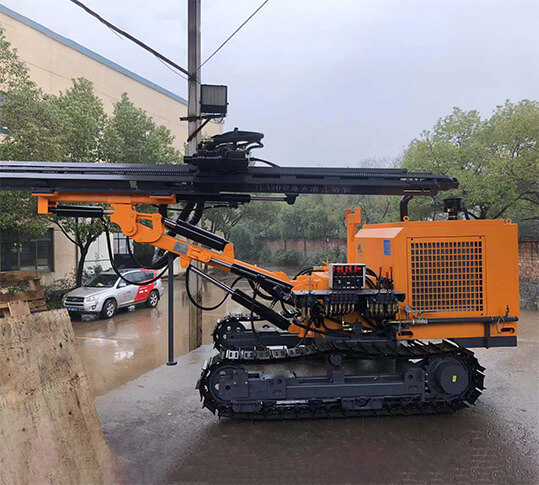

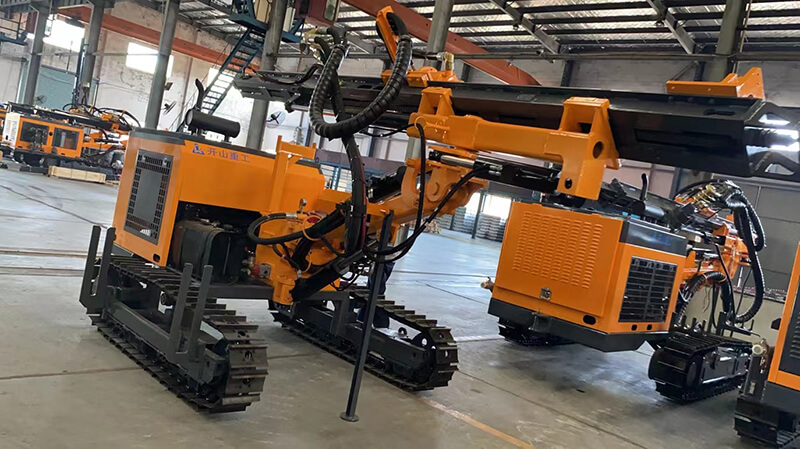

KG320/KG320H Down the hole Drill Rig for Open Use

Overview:

The KG320/KG320H down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine (China III), the drill rig meets national standards for emissions and environment. The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity.

Product Applications Product Features Technical Parameters Related Products

Applications

The KG320/KG320H down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine (China III), the drill rig meets national standards for emissions and environment. The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved, thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.

The KG320H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters

Drilling diameter :Φ80-105mm
Depth of economical drilling :25m
Method of Feed:Oil cylinder-leaf chain
Feed stroke: 3820mm
Supporting power:YCD4R23T8-80(59KW/2400r/min)/Yuchai YCD4R23T8-80(59KW/2400r/min)

Detail features

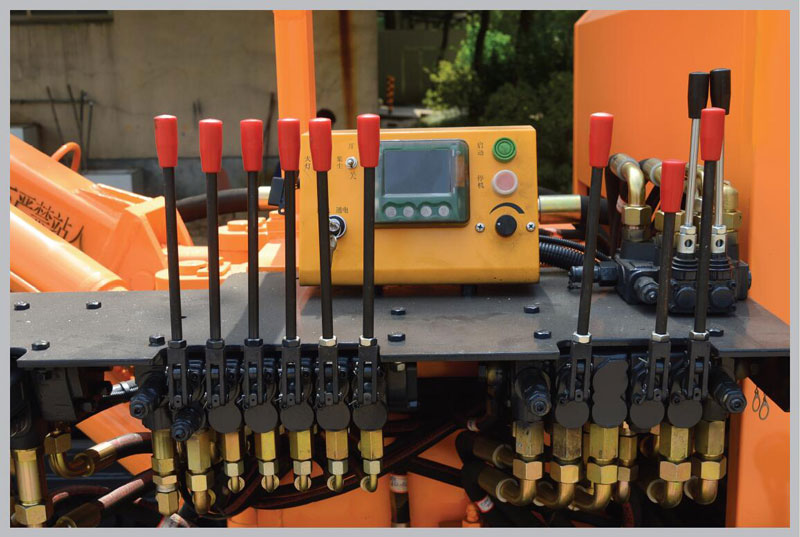

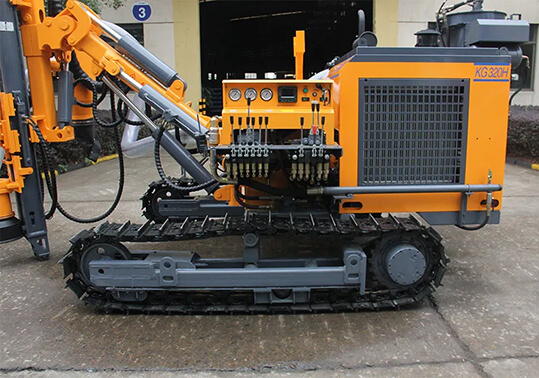

(Easy Used Control Panel)

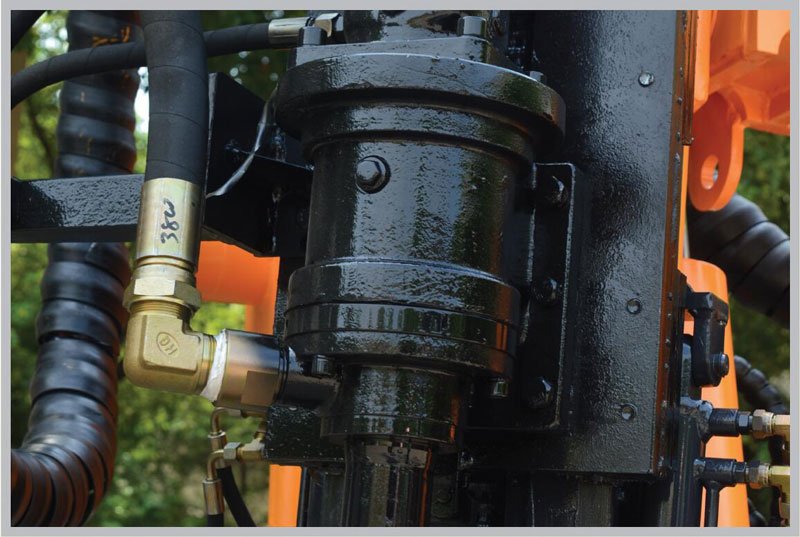

(High torque gyrator)

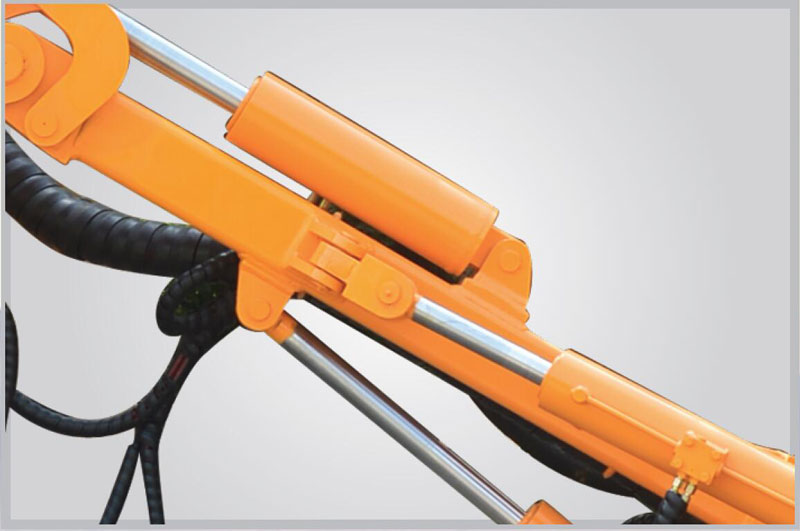

(Stable hydraulic system)

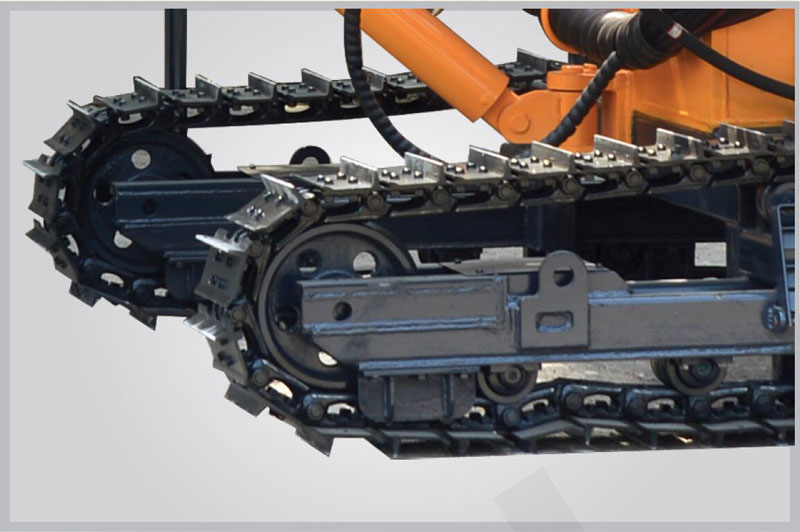

(Steel track adaptable to all terrains)

Recommended Air Compressors

Diesel engine portable screw air compressor:

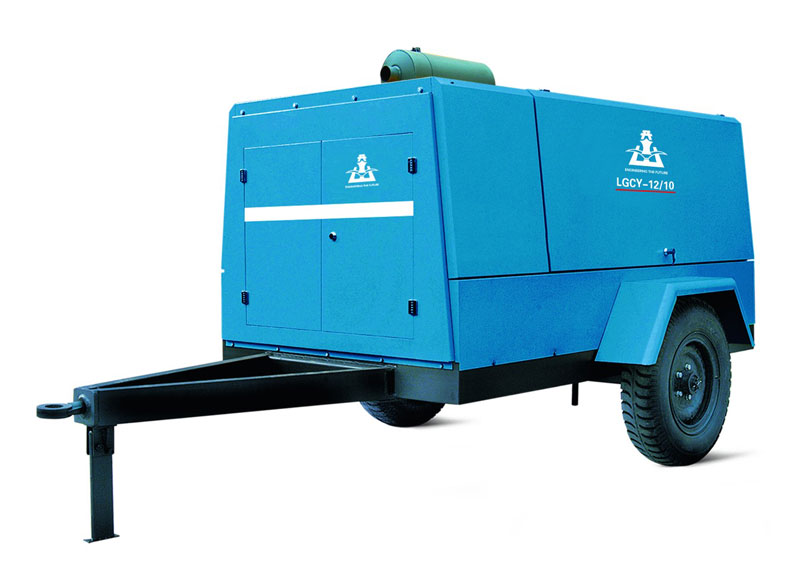

Kaishan LGCY-12/10

Kaishan LGCY-13/13

Technical Parameters

Model of drill rig KG320 KG320H
Weight of complete machine 4500KG 4700KG
Outer dimensions  5750×2100×2650mm 5750×2350×2650mm
Drilling hardness  f=6-20
Drilling diameter   Φ80-105mm
Depth of economical drilling   25m
Rotary speed   0-140rpm
Rotary torque  1250N·m
Lifting force 20KN
Method of Feed Oil cylinder-leaf chain
Feed stroke 3820mm
Travelling speed 0-2.2km/h
Climbing capacity ≤30°
Ground clearance 465mm
Tilt angle of beam  Down:135°, up: 50°, total: 185°
Swing angle of beam Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Swing angle of boom Left: 44°, right: 45°, total: 89°
Compensation length of beam 900mm
Supporting power  Yuchai power YCD4R23T8-80 (59KW/2400r/min)
Drilling rod Φ64×3m
DTH hammer M3
Air consumption

7-15m3/min

Maximum height of horizontal hole  2750mm
Minimum height of horizontal hole  750mm



Recommended Air Compressors
Diesel engine portable screw air compressor:  Kaishan LGCY-12/10
Kaishan LGCY-13/13
Note: Air compressor selection subject to hole dimameter and air hose length
