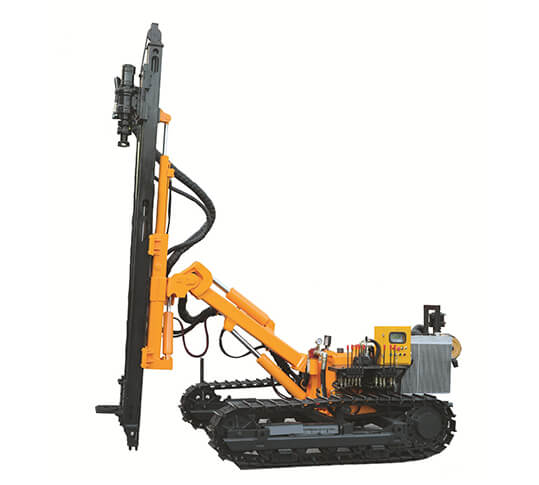

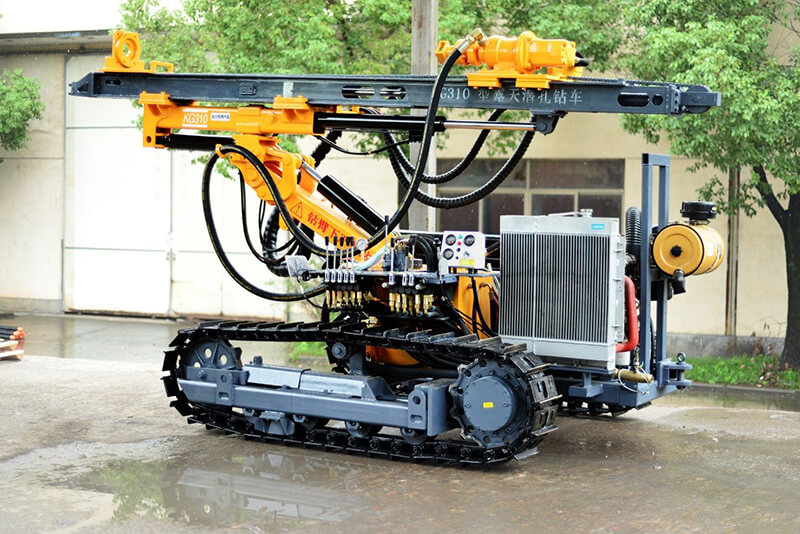

KG310/KG310H Down the hole Drill Rig for Open Use

Overview:

The KG310/KG310H down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai double-cylinder engine (China III), the drill rig meets the national standards for emissions and environment.

Product Applications Product Features Technical Parameters Related Products

Applications

The KG310/KG310H down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai double-cylinder engine (China III), the drill rig meets the national standards for emissions and environment. The flexible derricking mechanism is suitably qualified for horizontal drilling at a low level. The hydraulic system has been improved, leading to increased system flow and rotary speed. Moreover, the hydraulic cylinder has been optimized, thus making it more reliable; and the additional ring (plate) makes handling and lifting easier.

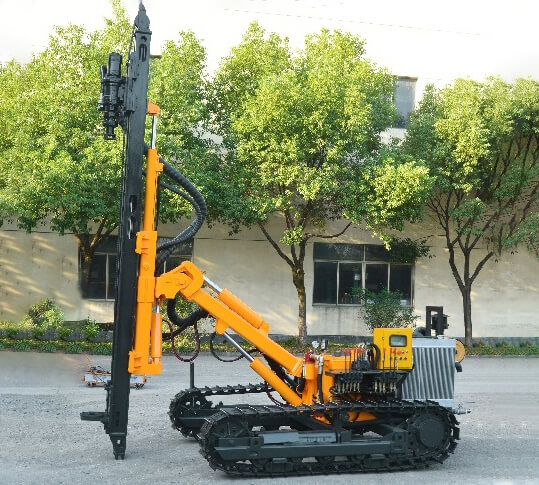

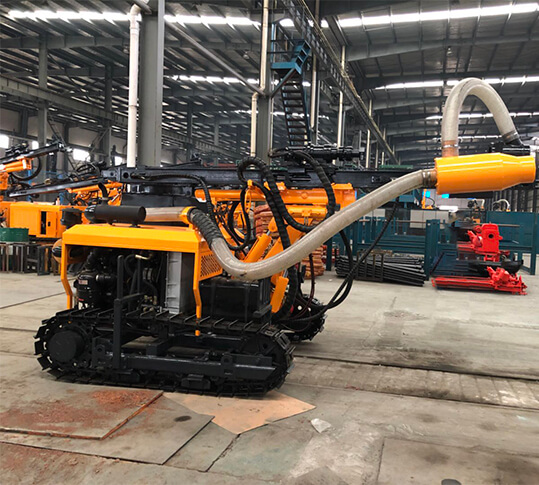

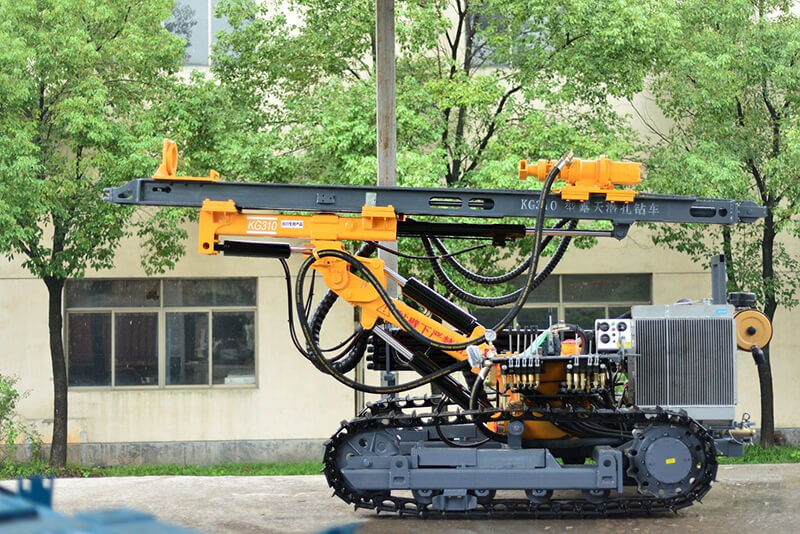

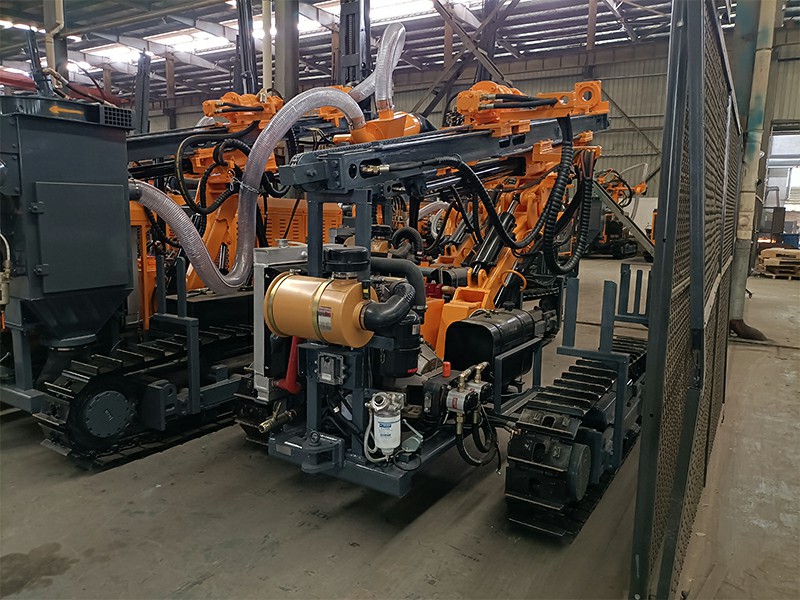

The KG310H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters

Drilling diameter :Φ80-105mm

Depth of economical drilling :20m

Method of Feed:Oil cylinder-leaf chain

Feed stroke: 2670mm

Supporting power:Yuchai power YCCA13T6-45 (33.1KW/2400r/min)

Detail features

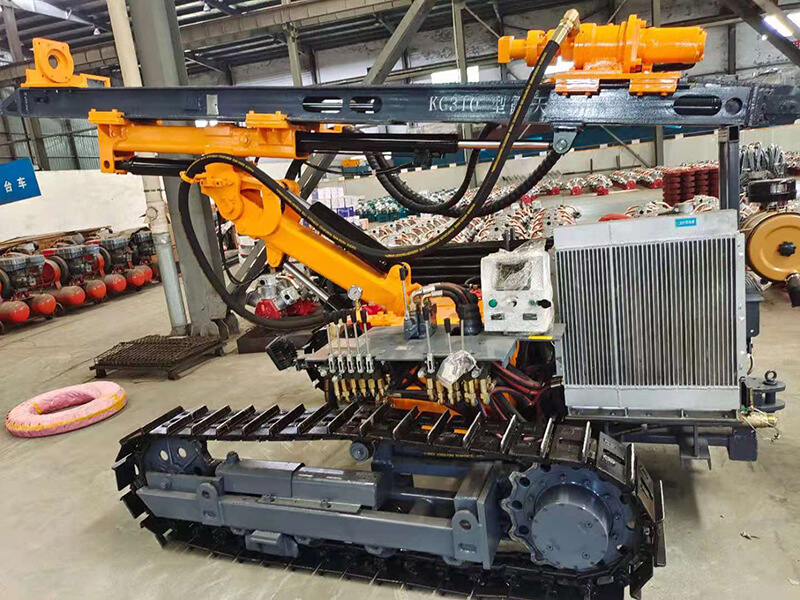

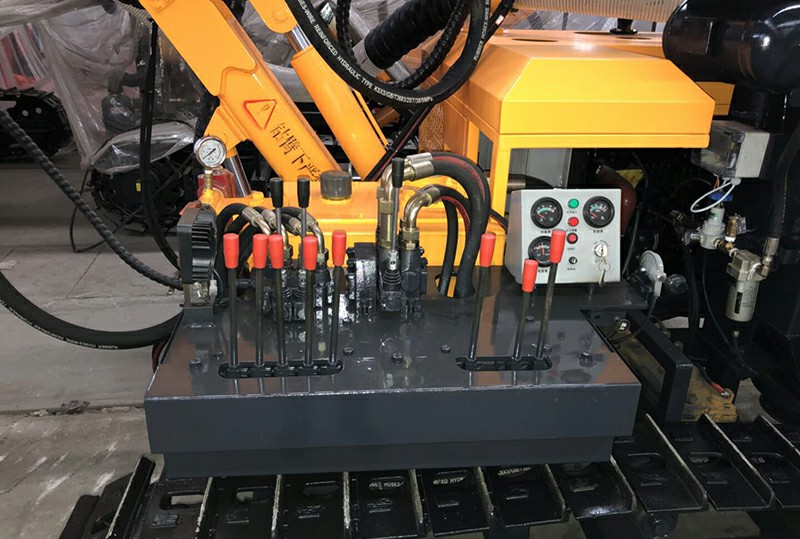

(Easy Used Control Panel)

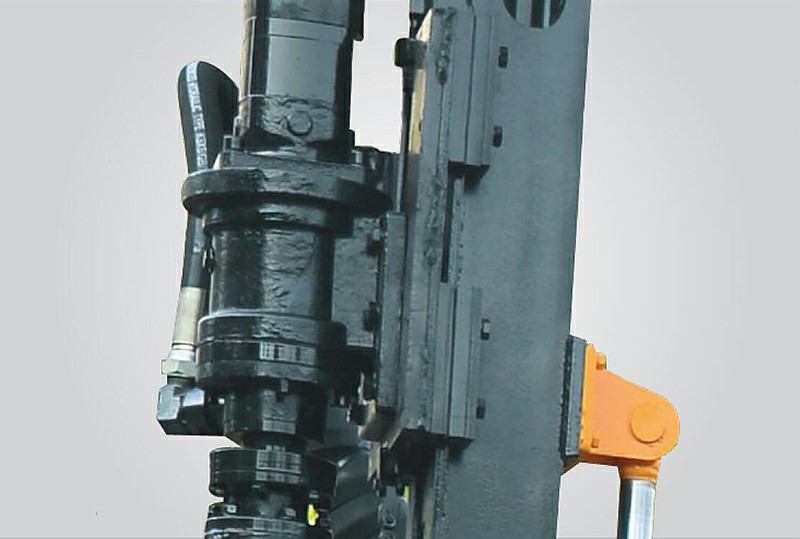

(High torque gyrator)

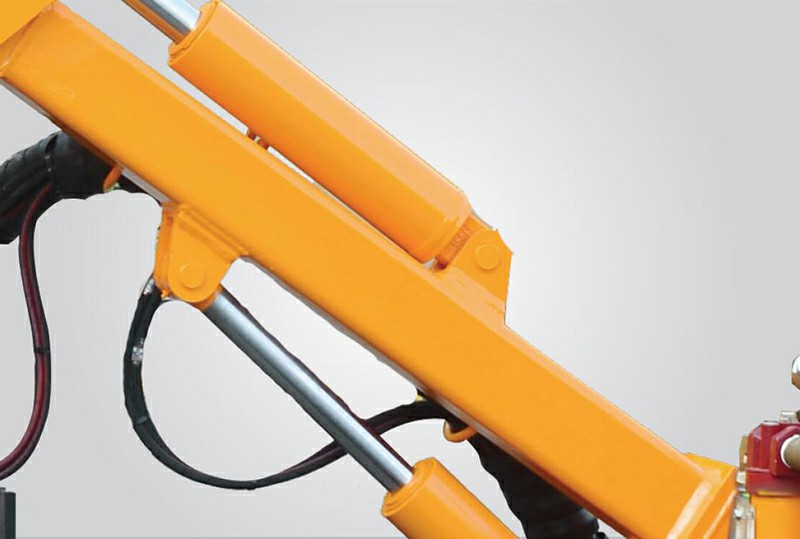

(Stable hydraulic system)

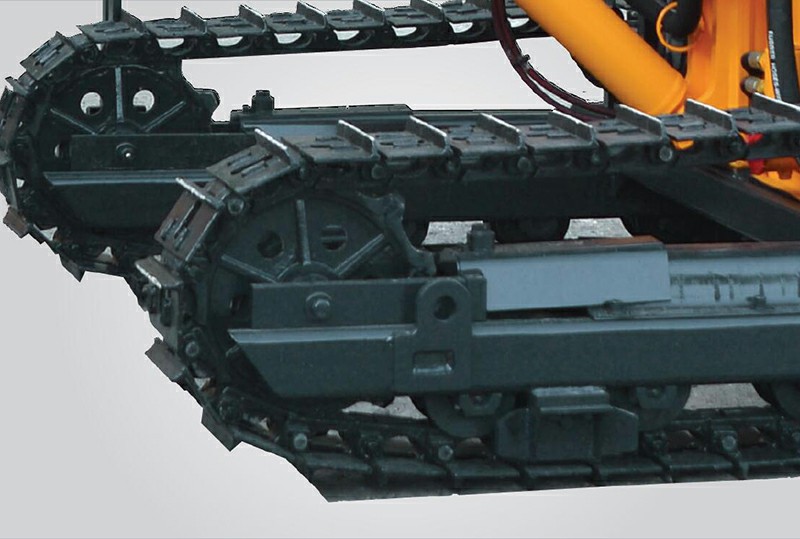

(Steel track adaptable to all terrains)

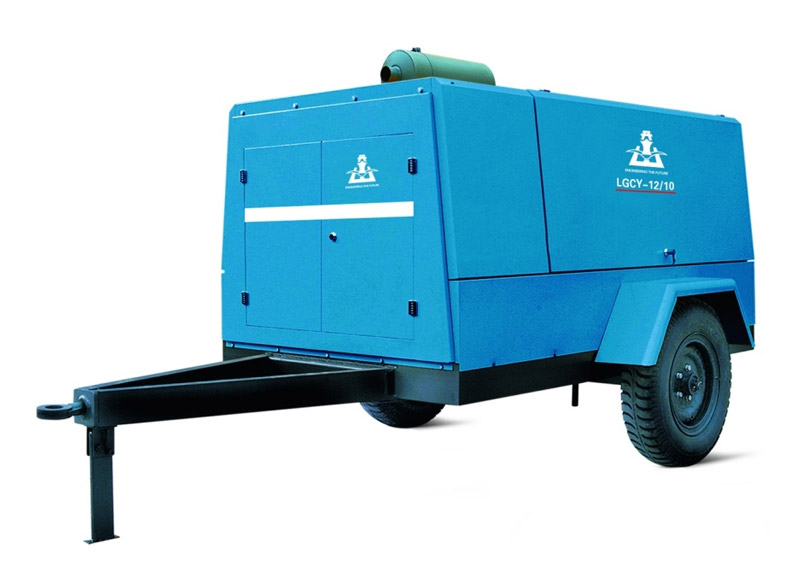

Recommended Air Compressors Kaishan LGCY-12/10 Kaishan LGCY-13/13

Technical Parameters

Model of drill rig KG310 KG310H
Weight of complete machine 4000KG 4200KG
Outer dimensions  4650×2000×2200mm 4650×2500×2200mm
Drilling hardness  f=6-20
Drilling diameter   Φ80-105mm
Depth of economical drilling   20m
Rotary speed   0-120rpm
Rotary torque  1250N·m
Lifting force 18KN
Method of Feed Oil cylinder-leaf chain
Feed stroke 2670mm
Travelling speed 0-2.0km/h
Climbing capacity ≤30°
Ground clearance 250mm
Tilt angle of beam  Down:145°, up: 55°, total: 190°
Swing angle of boom Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Compensation length of beam 900mm
Supporting power  Yuchai power YCCA13T6-45 (33.1KW/2400r/min)
Drilling rod Φ60×2m
DTH hammer L3
Air consumption

7-15m3/min

Maximum height of horizontal hole  2650mm
Minimum height of horizontal hole  660mm
Recommended Air Compressors
Diesel engine portable screw air compressor:  Kaishan LGCY-12/10
Kaishan LGCY-13/13
Note: Air compressor selection subject to hole dimameter and air hose length
