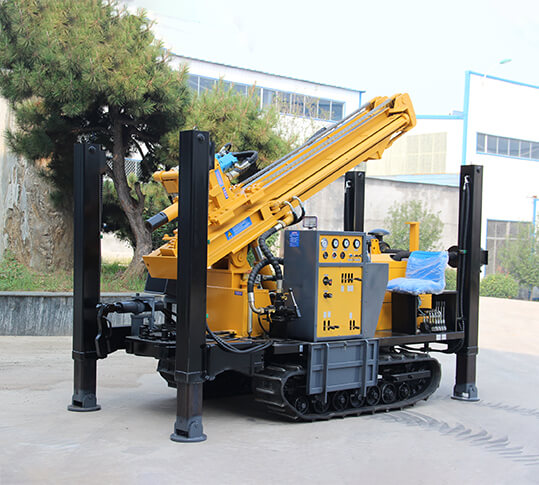

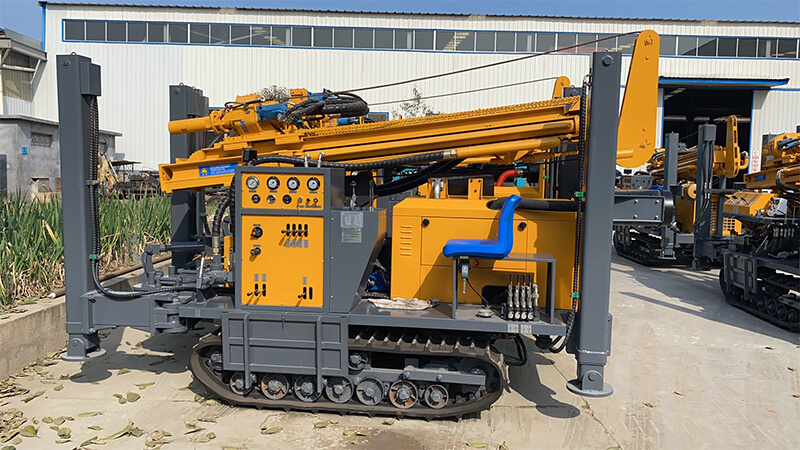

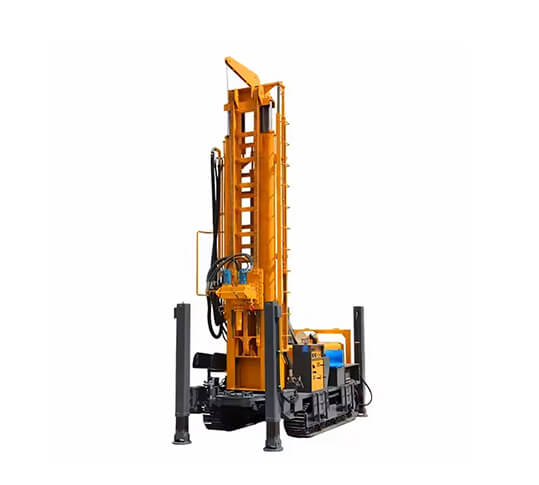

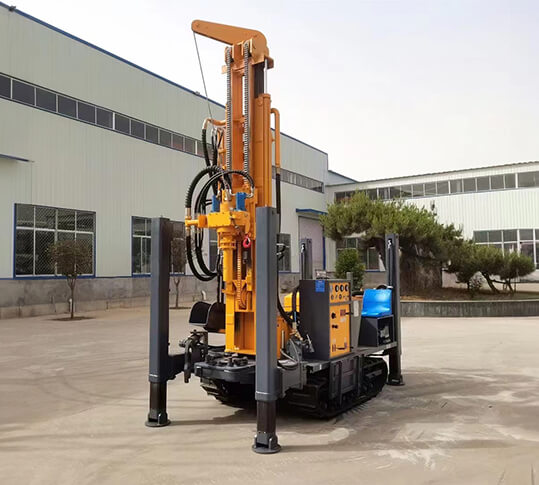

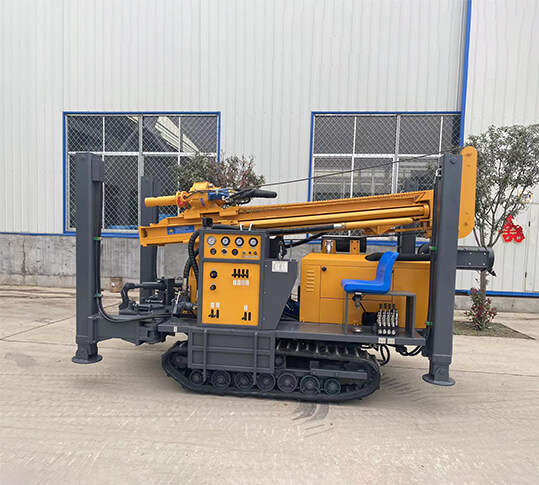

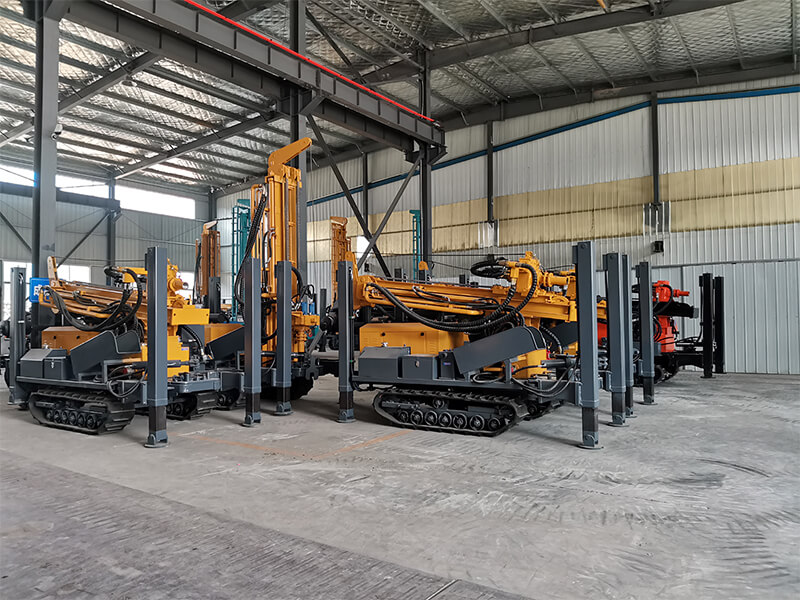

KW200R Water Well Drilling Rig

Overview:

KW200r Water well drill rig is upgrade from KW180r, compared with KW180r bore well drill rig, KW200r’s drilling diameter can reach to 305mm, and the drilling depth also can reach 200 meters, engine power also upgrade from 55Kw to 65Kw, besides, the lifting force for KW200 is 13 tons, and operation panel also more simple and convenient for the operator, at the same time KW200r equipped with rubber crawler, which is more durable and have long service life, can adapt more tough working condition.

Product Applications Product Features Technical Parameters Related Products

Applications

KW200r Water well drill rig is upgrade from KW180r, compared with KW180r bore well drill rig, KW200r’s drilling diameter can reach to 305mm, and the drilling depth also can reach 200 meters, engine power also upgrade from 55Kw to 65Kw, besides, the lifting force for KW200 is 13 tons, and operation panel also more simple and convenient for the operator, at the same time KW200r equipped with rubber crawler, which is more durable and have long service life, can adapt more tough working condition.



Performance Characteristics

  • Equipped with 65KW Quanchai brand turbocharged engine, strong power.
  • Patented design composite boom, double cylinder lift, long stroke, large tonnage.
  • The main boom of each rig is equipped with a stopper to protect the cylinder.
  • Drilling machine chassis: professional excavator chassis ,durable,heavy bearing capacity,wide chain plate, less damage to hard road.
  • Parallel gearbox design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost.
  • The travel motor is equipped with reducer, durable and long service life.
  • Dust-reducing device: effectively reduce dust pollution, for potholes, tunnel construction.
  • Fast distribution valve: the speed of three gears up to 150-160 rpm, basically achieve the dual-use function of water and air.
  • Each hydraulic hose is covered with soft management set to make the hose last longer.
  • The rig power is driven by the diesel engine, and the rig's walking, turning, propulsion, lifting, outriggers, and unloading rods are all controlled by hydraulic pressure.
  • The rig's walking is a crawler-type self-structure, which is easy to move. Its rubber crawler-type chassis makes it easy to walk in the city and the courtyard, and it is not easy to damage the ground.
  • High and Strong hydraulic legs allow quick and stable adjustment of the rig's body level for easy loading and unloading and shifting positions.
  • Dedicated wellhead setting provide a the certain center for drilling to ensure the vertical opening and positioning accuracy.
  • Mechanical positioning of the carriage and frame improves the stability of the carriage.
  • The pneumatic system has a custom oil injector that lubricates the impactor, effectively increasing the life of the impactor.

Technical Parameters

Model KW200R
Drilling depth 200m
Dia.hole φ140-305mm
Advance Length one time 3.4m
Working pressure 1.7-3.0MPa
Air consumption 15-31m³/min
Length of rod 1.5m,2m,3m
Dia. Of rod φ76, φ89,φ102
Lifting power 13T
Rotation torque 3300-4700N.m
Rotation Speed 45-65r/min
Diesel Engine Quanchai
Engine Power 65Kw
Travelling speed 0-2.5 Km/h
Climb capacity 30°
Weight 5000kgs
Dimension 3950x1700x2300mm
Application Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer 4",5",6",8" Drill hammer or CIR110, 130, 150,170



We can supply different power plan for different customers, usually the water well drill rig work with Screw Air Compressor, but some of customers need to work with mud pump for the different working condition, so we can change the power supply plan according to your requirements.

When you ready to buy our water well drill rig, please tell us the details working conditions for the water well, or you can tell us you need the bore-well machine working with air compressor or mud pump, we will prepare all the thing for you.

Normally the KW200r Water well equipped with Rubber Crawler, but if you need the steel crawler rather than the rubber one, we also can change it according to your requirements, but please note, that the different crawler type has the different prices.
