Model: PDSH600S
Rated output (kW[HP]/rpm): 181 [242.7] / 2200
L×W×H (mm): 4220×2150×2130
Engine oil capacity (L):15

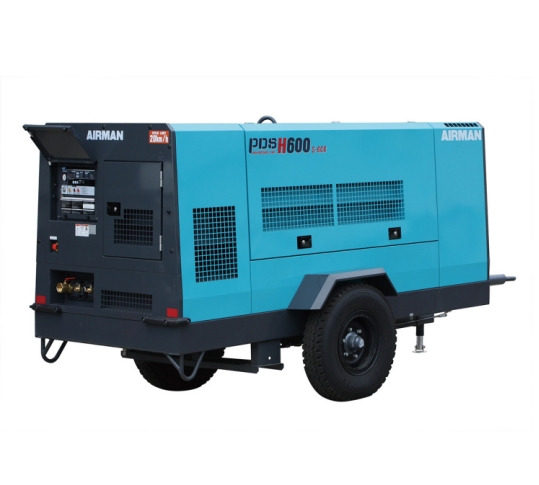

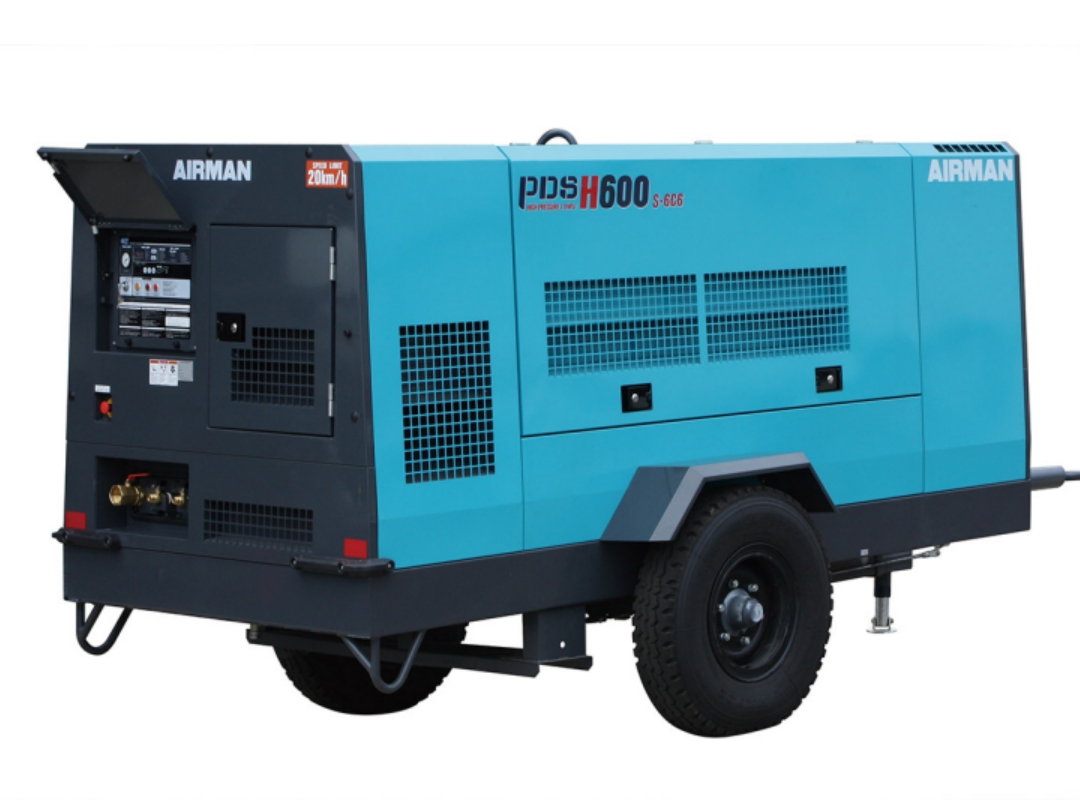

PDSH600S Mobile Diesel Screw Air Compressor is designed to deliver stable and efficient compressed air for drilling, mining, construction, and other demanding outdoor applications, with reliable performance and flexible mobility.
The new compressor system is designed for efficient operation, with improved heat, wear, and pressure resistance to support long-term reliability.
The latest-generation engine offers efficient fuel consumption and strong durability, helping maintain dependable performance during extended operation.
The upgraded control system provides precise fuel management and automatic speed adjustment, reducing fuel consumption while helping lower emissions.
Automatic preheating ensures smooth starting and reliable operation in cold and low-temperature working environments.
|
COMPRESSOR |
|
|
Type |
Rotary Twin Screw, Single‑Stage, Oil‑Injected |
|
Free air delivery (m3/min [CFM]) |
17.0 [600] |
|
Rated operating pressure (MPa)[kgf/cm2][psi] |
1.7 [17.3] [247] |
|
Compressor oil capacity (L) |
63 |
|
Air outlet valve |
3/4"×2, 2"×1 |
|
Brand |
Dongfeng Cummins |
|
Model |
QSB6.7-C260-Ⅲ |
|
Type |
Direct-Injection, Turbo-Charged, Intercooled |
|
Fuel injection / control method |
Common Rail + ECU |
|
Emission stage |
EU Stage 3A, GBⅢ |
|
Rated output (kW[HP]/rpm) |
181 [242.7] / 2200 |
|
Engine oil capacity (L) |
15 |
|
Fuel tank capacity (L) |
300 |
|
Coolant capacity (L) |
30 |
|
Battery |
120Ah×2 |
|
DIMENSION & WEIGHT, etc. |
|
|

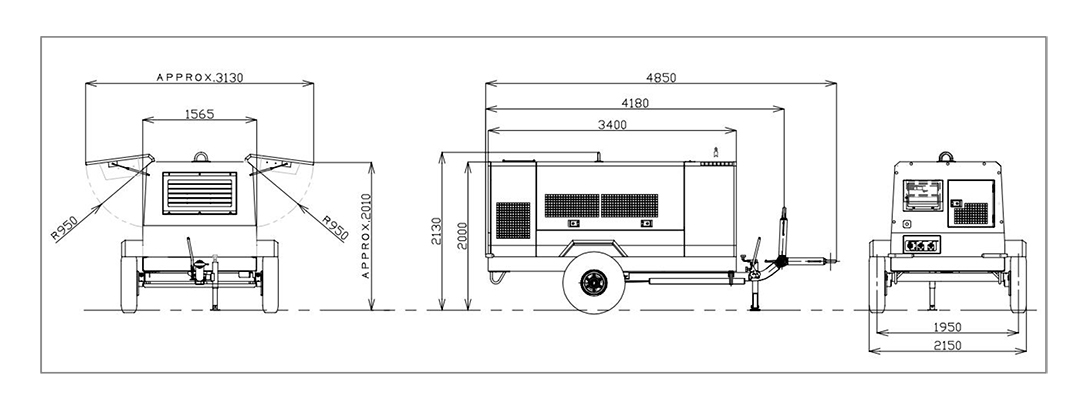

L×W×H (mm) |
4220×2150×2130 |
|
Dry (Operating) weight (kg) |
3040 (3380) |
|
Tire Size |
8.25-16 16PR×2 |
|
Sound power level in decibels (dB) |
104 |
|
Sound pressure level (dB[A]) |
76 |
