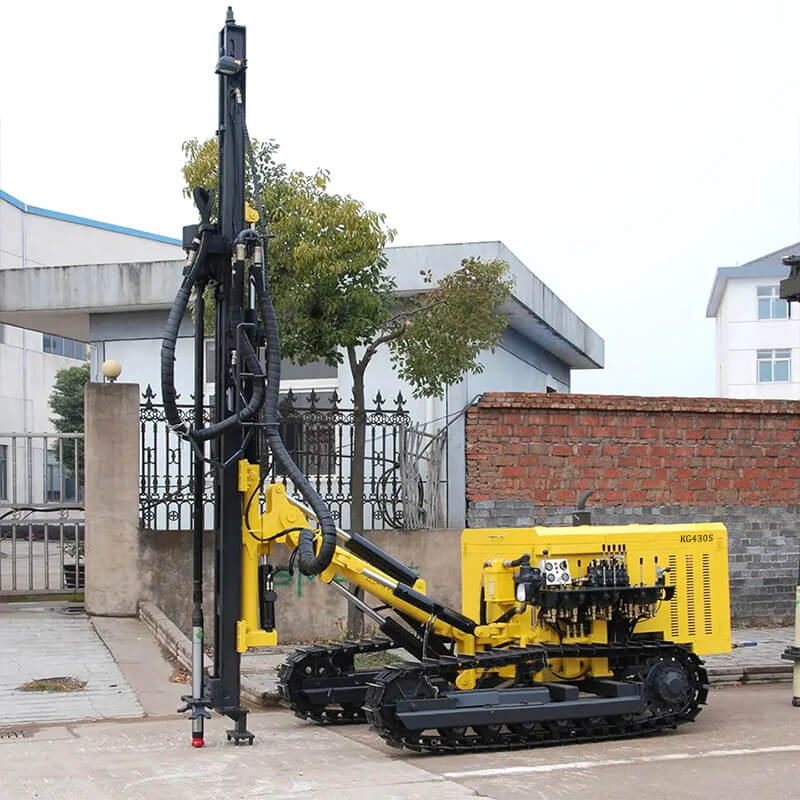

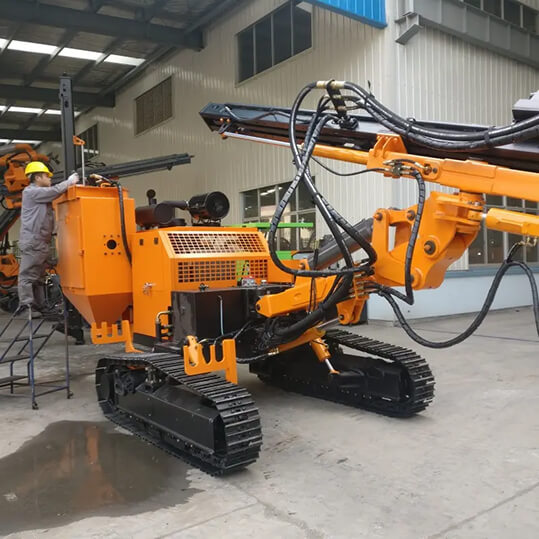

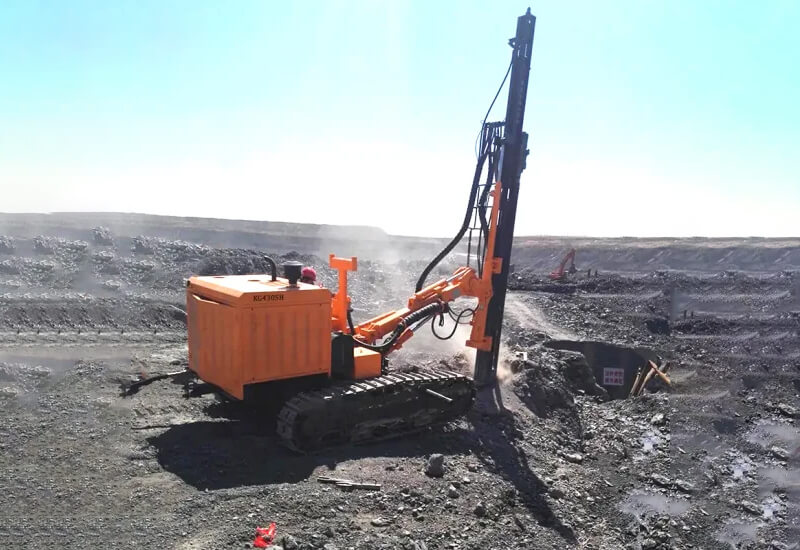

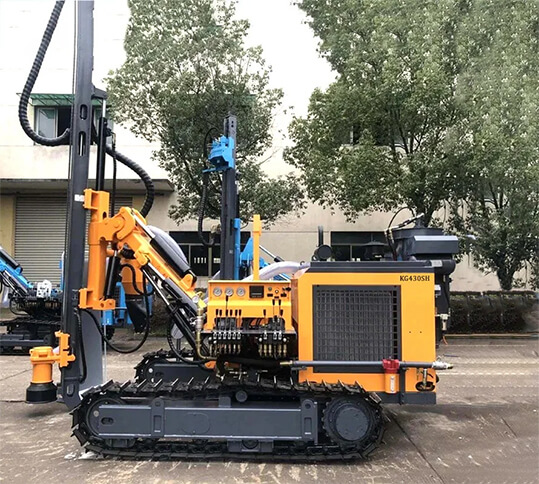

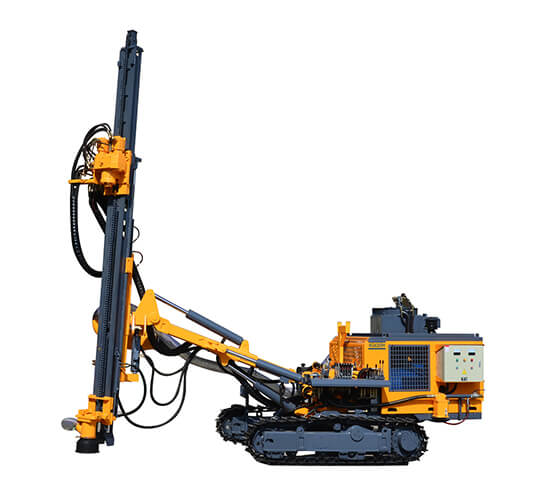

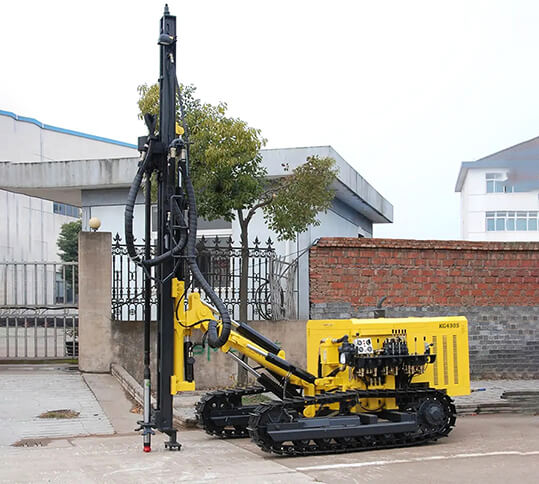

KG430S/KG430SH DTH Drill Rig for Open Use

Technical Specifications: KG430S/KG430SH

Supporting Power: 58kW/2200r/min

                               55kW/1460r/min

Drilling Diameter: 90-152 mm

Drilling Depth: 25 m

Product Applications Product Features Technical Parameters Related Products

Applications

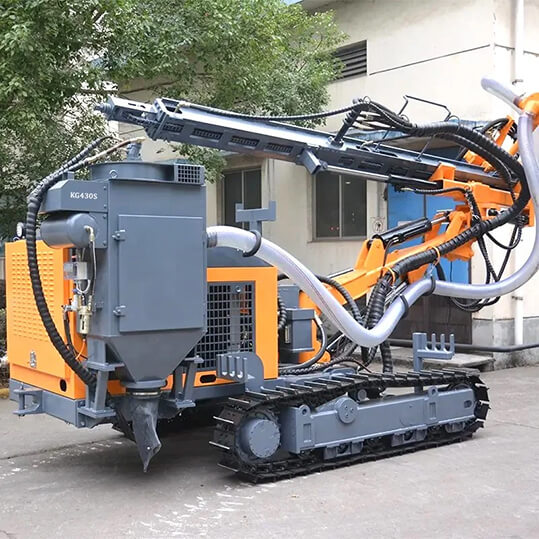

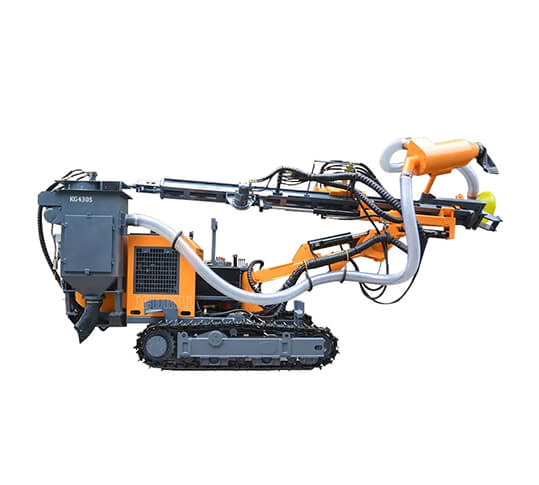

The KG430S/KG430SH dth drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Features


The KG430S/KG430SH dth drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. The drill rig is equipped with the two independent systems, namely diesel engine and motor, capable of separate operations. The folding frame track and four-wheel drive are adopted; and the waking motor of plunger piston and track leveling improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The double rotation motor increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

Recommended Air Compressors

Diesel engine portable screw air compressor:

Kaishan LGCY-18/17

Kaishan LGCY-19.5/19

Technical Parameters

Model of drill rig KG430S KG430SH
Weight of complete machine 6000KG 6200KG
Outer dimensions 6700×2200×2700mm 6700×2400×2700mm
Drilling hardness f=6-20
Drilling diameter Φ90-152mm
Depth of economical drilling 25m
Rotary speed 0-90rpm
Rotary torque 5000N·m
Lifting force 40KN
Method of Feed Oil cylinder-leaf chain
Feed stroke 3980mm
Travelling speed 0-2.5km/h
Climbing capacity ≤30°
Ground clearance 515mm
Tilt angle of Beam Down: 110°, up: 35°, total: 145°
Swing angle of boom Left: 91°, right: 5°, total: 96°
Pitch angle of drill boom Down: 55°, up: 15°, total: 70°
Swing angle of drill boom Left: 32°, right: 32°, total: 64°
Leveling angle of track ±10°
Compensation length of beam 900mm
Supporting power

Yuchai YCD4K80-T302 (58KW/2200r/min)

Motor Y250M-4 (55KW/1460r/min)

DTH hammer K40
Drilling rod Φ76×3m
Air consumption 13-20m³/min
Maximum height of horizontal hole 3700mm
Minimum height of horizontal hole 350mm
Recommended Air Compressors
Diesel engine portable screw air compressor: Kaishan LGCY-18/17
Kaishan LGCY-19.5/19
Note: Air compressor selection subject to hole dimameter and air hose length
