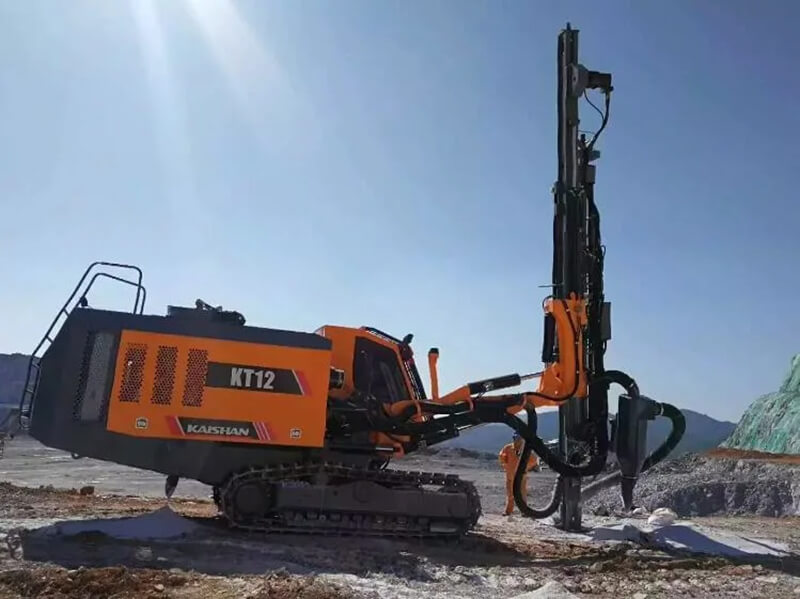

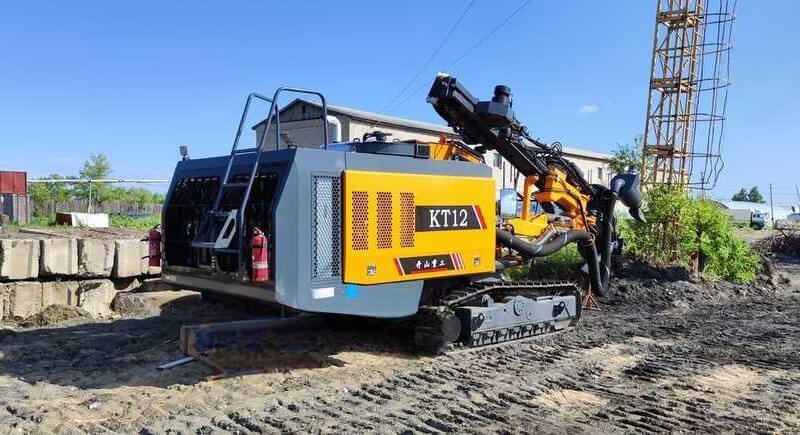

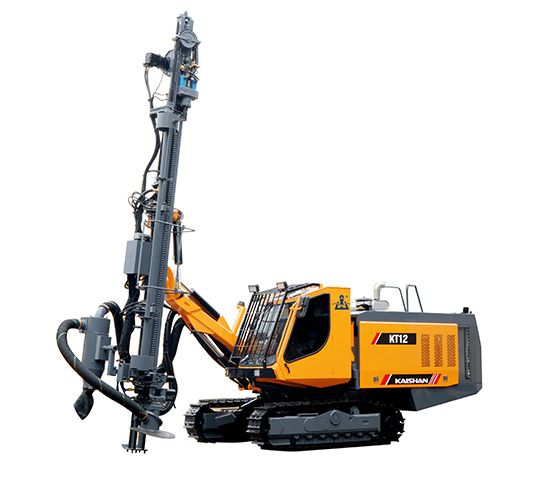

KT12 Integrated Down the hole Drill Rig

Technical Specifications: KT12

Power: 265 kW /2200r/min

Drilling Diameter: 115-152 mm

Drilling Depth: 28 m

Product Applications Product Features Technical Parameters Related Products

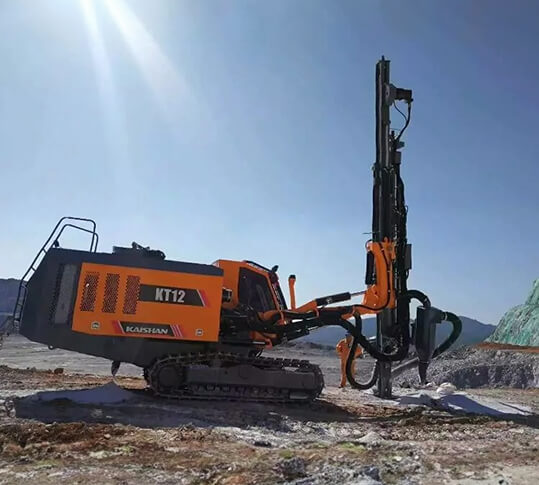

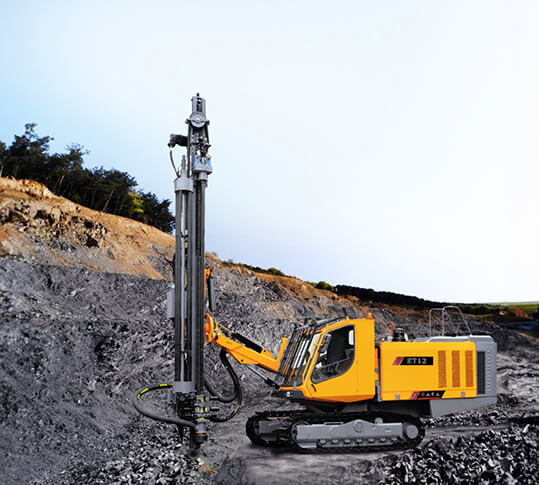

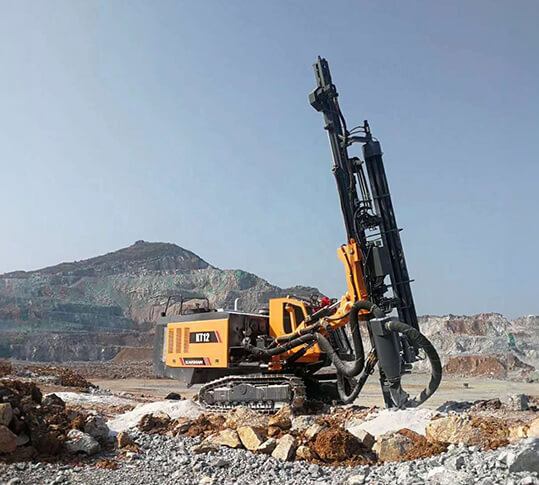

The KT12 integrated down the hole drill rig is driven by the Cummins China stage III diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system. It is capable of drillingφ115-152mm vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes.



The drill rig is equipped with the automatic rod handling system and lubricating module of drilling rod, resulting in one operator and fewer mining operations. The main control action is integrated to one handle, typical of user-friendliness. It is equipped with the anti-jamming system and optional drilling angle and depth indication are available, thus simplifying drilling and improving the drilling quality. The efficient dust-collecting system, spacious cab, high-powered air-conditioner and quality stereo system provide ideal conditions for operations, contributing to the highest working efficiency.

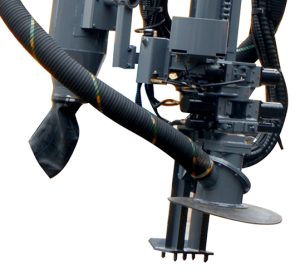

  • High Efficient Dust Collecting System


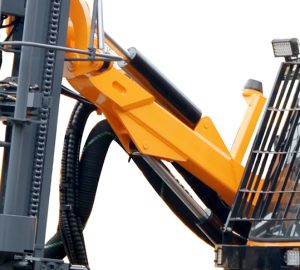

  • Good hydraulic system

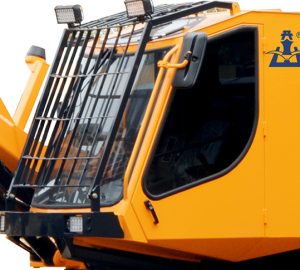

  • Safe & Comfortable Cab

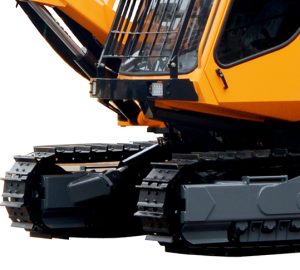

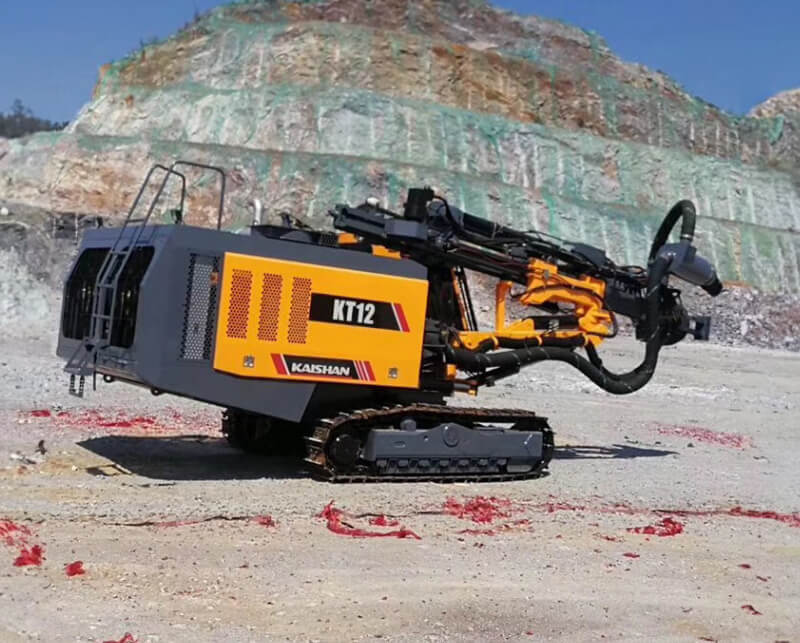

  • High Quality Walking Track


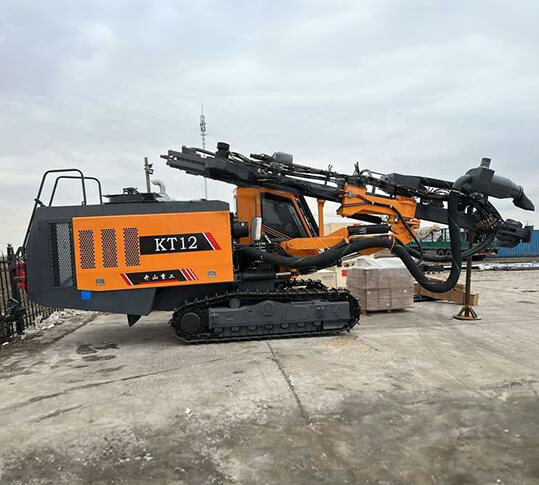

Technical Parameters

Transport dimensions (L×W×H) 9830*2580*3320 mm
Weight 17500Kg
Rock hardness f=6-20
Drilling diameter 115-152mm
Ground clearance 420mm
Leveling angle of track 10°up, 10°down
Travelling speed 0-3Km/h
Climbing capacity 25°
Traction 120KN
Torque 3450Nm
Rotation speed 0-100rpm
Lifting angle of drill boom Up 47°, down 20°
Swing angle of drill boom Right 50°, left 21°
Swing angle of carriage Right 95°, left 35°
Tilt angle of beam 114°
Compensation stroke 1353mm
Feed stroke 4490mm
Maximum propelling force 25KN
Method of propulsion Roller chain
Depth of economical drilling 28m
Number of rods 6+1
Specifications of drilling rod Φ89x4000 mm
DTH hammer K40、K50
Engine Cummins QSL8.9-C360-30
Number of cylinders 6
Output power 265KW/2200rpm
Hydraulic pump 5× gear pump
Screw air compressor Zhejiang Kaishan
Air capacity 20m³/min
Air pressure 22Bar
Traveling control system Hydraulic pilot
Drilling control system Hydraulic pilot
Anti-Jamming Automatic electro-hydraulic anti-Jamming
Voltage 24V,24V, DC
Safe cab Meet the requirements of FOPS & ROPS
Indoor noise Below 85dB(A)
Seat Adjustable
Air-conditioning Standard temperature
Entertainment Mp3 /Radio +Mp3
