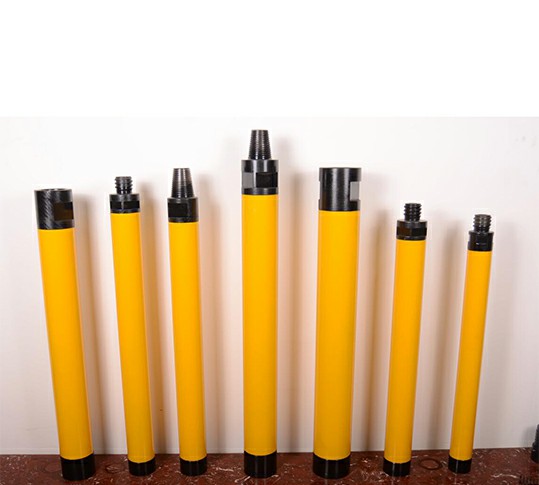

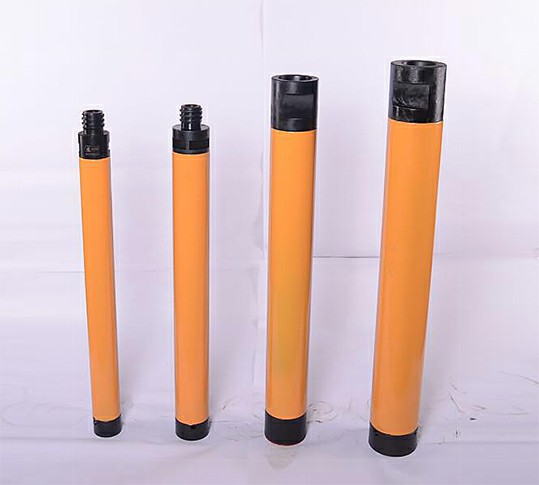

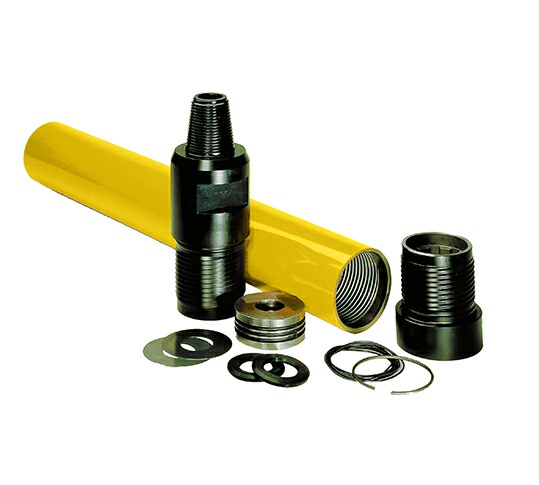

Low Air Pressure DTH Hammers

Overview:

DTH Hammers are rock drilling tools which takes compressed air as power source to partially transfer impact power into drilling holes. An impact device arranged in the front of the top hammer transfers the impact power to a down-the-hole bit to crush rocks.

Product Applications Product Features Technical Parameters Related Products

Applications

The DTH hammers are widely used in open-pit mining, underground mining, anchoring.quarrying, construction, etc.

Features of Low Air Pressure DTH Hammers

1 The operating air pressure are between 0.7Mpa and 1.75Mpa
2 Valveless hammers.
3 Simple structure, easy to assemble and to disassemble, long life span.
4 Higher impact frequency and faster drilling speed.
5 Lower air consumption and lower oil consumption. A hole can be drilled on the check valve to provide more efficient cuttings discharge.
6 Especially suitable for quarrying.

KLD-76A

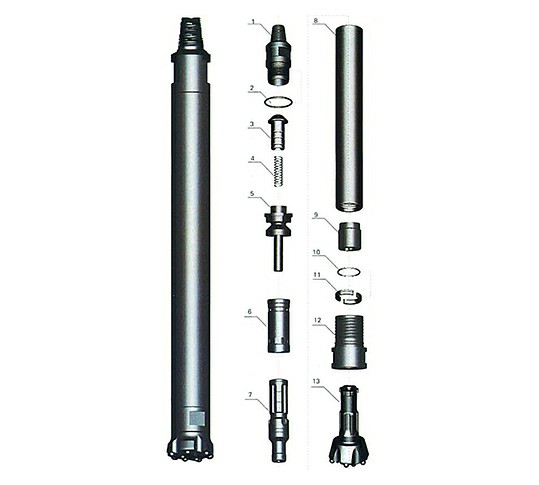

Item Description

Part Number

1.Top Sub

KLD76A-01

2. Cap

KLD76A-02

3. Check Valve

KLD76A-03

4. Spring

KLD76A-04

5. Shim

KLD76A-05

6. Rubber Ring

KLD76A-06

7. Valve Cap

KLD76A-07

8. Valve

KLD76A-08

9. Air Distributor

KLD76A-09

10.Inner Cylinder

KLD76A-10

11. Piston

KLD76A-11

12. Guide Sleeve

KLD76A-12

13. Driver Sub

KLD76A-13

14. Outer Sleeve

KLD76A-14

Hammer Length Without Bit

811mm

Top Sub Thread

F48X10PIN

Outside Diameter

66mm

Weight

13.5kg

Bit Diameter

76mm

Working Pressure

58-145psi (4-10bar)

Air Consumption

214-357cfm (6-10m3/min)

Bit Shank

CIR70



KLD-90A

Item Description

Part Number

1.Top Sub

KLD90A-01

2. Cap

KLD90A-02

3. Check Valve

KLD90A-03

4. Spring

KLD90A-04

5. Shim

KLD90A-05

6. Rubber Ring

KLD90A-06

7. Valve Cap

KLD90A-07

8. Valve

KLD90A-08

9. Air Distributor

KLD90A-09

10.Inner Cylinder

KLD90A-10

11. Piston

KLD90A-11

12. Guide Sleeve

KLD90A-12

13. Driver Sub

KLD90A-13

14. Outer Sleeve

KLD90A-14

Hammer Length Without Bit

855mm

Top Sub Thread

F48X10PIN

Outside Diameter

80mm

Weight

22kg

Bit Diameter

90-120mm

Working Pressure

73-145psi (5-10bar)

Air Consumption

245-420cfm (7-12m3/min)

Bit Shank

CIR90



KLD-110B

Item Description

Part Number

1.Top Sub

KLD110B-01

2. Cap

KLD110B-02

3. Check Valve

KLD110B-03

4. Spring

KLD110B-04

5. Shim

KLD110B-05

6. Rubber Ring

KLD110B-06

7. Valve Cap

KLD110B-07

8. Valve

KLD110B-08

9. Air Distributor

KLD110B-09

10.Inner Cylinder

KLD110B-10

11. Piston

KLD110B-11

12. Guide Sleeve

KLD110B-12

13. Driver Sub

KLD110B-13

14. Outer Sleeve

KLD110B-14

Hammer Length Without Bit

871mm

Top Sub Thread

API 23/8”REG BOX

Outside Diameter

98mm

Weight

33kg

Bit Diameter

110-150mm

Working Pressure

73-145psi (5-10bar)

Air Consumption

245-420cfm (7-12m3/min)

Bit Shank

CIR110



KLD-130B

Item Description

Part Number

1.Top Sub

KLD130B-01

2. Cap

KLD130B-02

3. Check Valve

KLD130B-03

4. Spring

KLD130B-04

5. Shim

KLD130B-05

6. Rubber Ring

KLD130B-06

7. Valve Cap

KLD130B-07

8. Valve

KLD130B-08

9. Air Distributor

KLD130B-09

10.Inner Cylinder

KLD130B-10

11. Piston

KLD130B-11

12. Guide Sleeve

KLD130B-12

13. Driver Sub

KLD130B-13

14. Outer Sleeve

KLD130B-14

Hammer Length Without Bit

890mm

Top Sub Thread

API 23/8”REG BOX

Outside Diameter

112mm

Weight

48.5kg

Bit Diameter

130-175mm

Working Pressure

73-145psi (5-10bar)

Air Consumption

245-420cfm (7-12m3/min)

Bit Shank

CIR110/CIR130



KLD-150A

Item Description

Part Number

1.Top Sub

KLD150A-01

2. Cap

KLD150A-02

3. Check Valve

KLD150A-03

4. Spring

KLD150A-04

5. Shim

KLD150A-05

6. Rubber Ring

KLD150A-06

7. Valve Cap

KLD150A-07

8. Valve

KLD150A-08

9. Air Distributor

KLD150A-09

10.Inner Cylinder

KLD150A-10

11. Piston

KLD150A-11

12. Guide Sleeve

KLD150A-12

13. Driver Sub

KLD150A-13

14. Outer Sleeve

KLD150A-14

Hammer Length Without Bit

904mm

Top Sub Thread

F70X10 BOX

Outside Diameter

136mm

Weight

70kg

Bit Diameter

150-200mm

Working Pressure

73-145psi (5-10bar)

Air Consumption

350-560cfm (10-16m3/min)

Bit Shank

CIR150



KLD-170A

Item Description

Part Number

1.Top Sub

KLD170A-01

2. Cap

KLD170A-02

3. Check Valve

KLD170A-03

4. Spring

KLD170A-04

5. Shim

KLD170A-05

6. Rubber Ring

KLD170A-06

7. Valve Cap

KLD170A-07

8. Valve

KLD170A-08

9. Air Distributor

KLD170A-09

10.Inner Cylinder

KLD170A-10

11. Piston

KLD170A-11

12. Guide Sleeve

KLD170A-12

13. Driver Sub

KLD170A-13

14. Outer Sleeve

KLD170A-14

Hammer Length Without Bit

1030mm

Top Sub Thread

F100X28 PIN

Outside Diameter

156mm

Weight

96kg

Bit Diameter

170-250mm

Working Pressure

73-145psi (5-10bar)

Air Consumption

420-630cfm (12-18m3/min)

Bit Shank

CIR170



KLD-200A

Item Description

Part Number

1.Top Sub

KLD200A-01

2. Cap

KLD200A-02

3. Check Valve

KLD200A-03

4. Spring

KLD200A-04

5. Shim

KLD200A-05

6. Rubber Ring

KLD200A-06

7. Valve Cap

KLD200A-07

8. Valve

KLD200A-08

9. Air Distributor

KLD200A-09

10.Inner Cylinder

KLD200A-10

11. Piston

KLD200A-11

12. Guide Sleeve

KLD200A-12

13. Driver Sub

KLD200A-13

14. Outer Sleeve

KLD200A-14

Hammer Length Without Bit

1058mm

Top Sub Thread

F100X28 PIN

Outside Diameter

182mm

Weight

130kg

Bit Diameter

200-250mm

Working Pressure

73-145psi (5-10bar)

Air Consumption

560-700cfm (16-20m3/min)

Bit Shank

CIR200



KMD-M3''

Item Description

Part Number

1. Top Sub

KMDM3-01

2. О-Ring

KMDM3-02

3. Cap

KMDM3-03

4. Check Valve

KMDM3-04

5. Spring

KMDM3-05

6.Air Distributor

KMDM3-06

7. Inner Cylinder

KMDM3-07

8. Piston

KMDM3-08

9. Jump Ring

KMDM3-09

10. Guide Sleeve

KMDM3-10

11. O-Ring

KMDM3-11

12. Driver Sub

KMDM3-12

13. Bit Retainer Ring

KMDM3-13

14. Driver Sub

KMDM3-14

15. Outer Sleeve

KMDM3-15

Hammer Length Without Bit

870mm

Top Sub Thread

F48X10PIN

Outside Diameter

80mm

Weight

24kg

Bit Diameter

90-120mm

Working Pressure

145-189psi (10-13bar)

Air Consumption

280-350cfm (8-10m3/min)

Bit Shank

CIR90/M3



KMD-M4''

Item Description

Part Number

1. Top Sub

KMDM4-01

2. О-Ring

KMDM4-02

3. Cap

KMDM4-03

4. Check Valve

KMDM4-04

5. Spring

KMDM4-05

6.Air Distributor

KMDM4-06

7. Inner Cylinder

KMDM4-07

8. Piston

KMDM4-08

9. Guide Sleeve

KMDM4-09

10. O-Ring

KMDM4-10

11. Driver Sub

KMDM4-11

12. Bit Retainer Ring

KMDM4-12

13. Driver Sub

KMDM4-13

14. Outer Sleeve

KMDM4-14

Hammer Length Without Bit

848mm

Top Sub Thread

API 23/8” REG BOX

Outside Diameter

104mm

Weight

34kg

Bit Diameter

115-150mm

Working Pressure

145-189psi (10-13bar)

Air Consumption

280-420cfm (8-12m3/min)

Bit Shank

CIR110/M4
