KT5C Integrated Down the hole Drill Rig for Open Use

Overview:

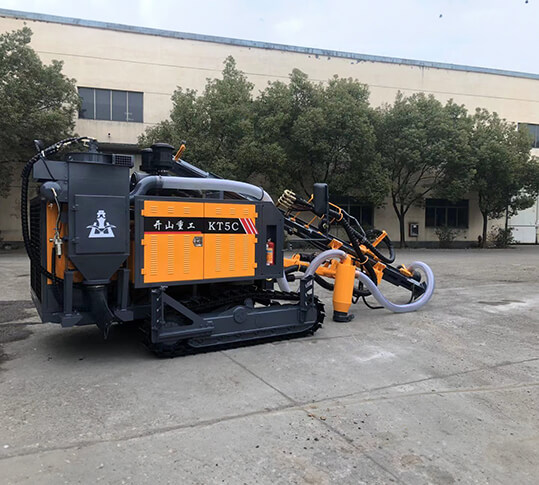

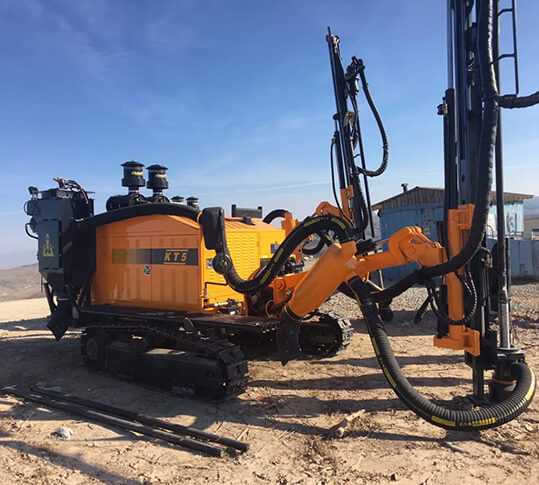

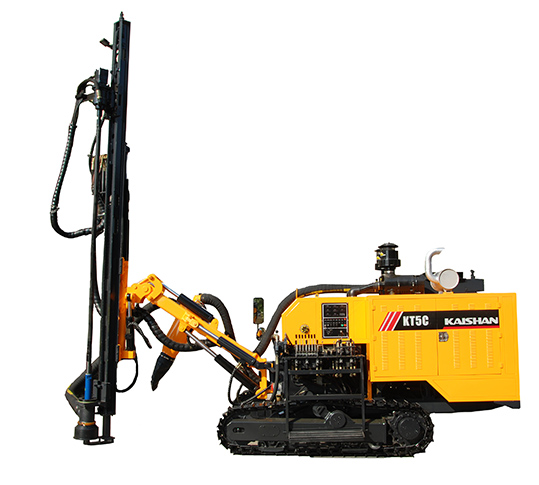

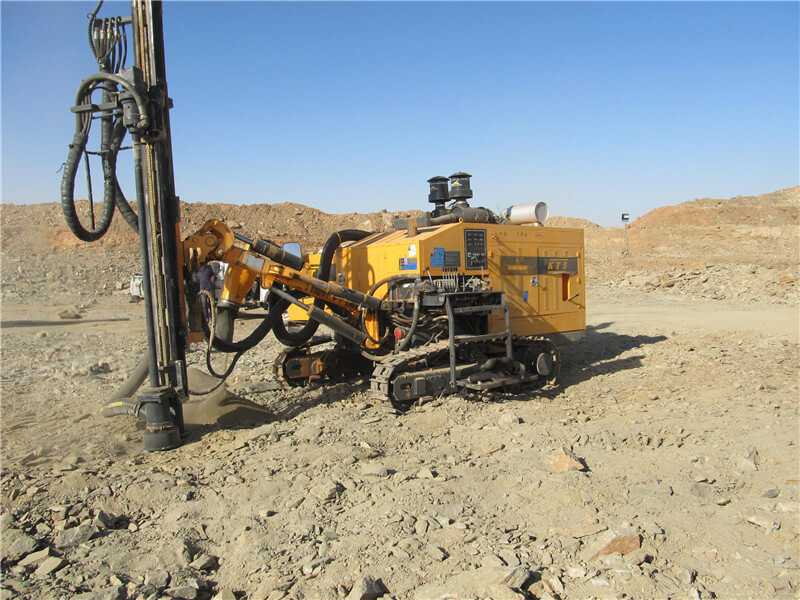

The KT5C Integrated down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system and screw air compressor system, characterized by compact structure, excellent integrity and mobility.

Applications Advantage Parameter Related Products

Applications

The KT5C Integrated down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system and screw air compressor system, characterized by compact structure, excellent integrity and mobility. Equipped with the Yuchai China stage III Engine, the drill rig meets national standards for emissions and environment. It is typical of energy conservation, efficiency, safety, environment-friendliness, flexibility, simple operation and stable performance, etc.

Brief Parameters

Drilling diameter :Φ80-105mm

Depth of economical drilling :25m

Method of Feed:Oil cylinder-leaf chain

Feed stroke: 3000mm

Supporting power:Yuchai power Yuchai YC6J190-T303 (140KW/190HP)

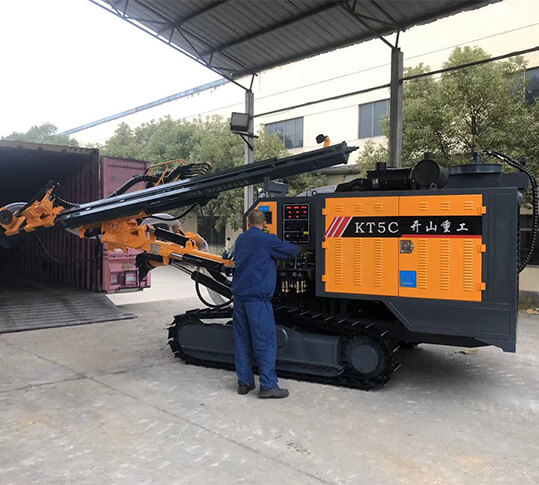

Detail features

Technical Parameters

Model of drill rig KT5C
Drilling hardness f=6-20
Drilling diameter 80-105 mm
Depth of economical drilling 25 m
Travelling speed 2.5/4.0 km/h
Climbing capacity 30°
Ground clearance 430 mm
Power of complete machine 140 kW
Diesel engine YC6J190-T303 /Yuchai YC6J190-T303
Capacity of screw compressor 10 m3/min
Discharge pressure of screw compressor 15 bar
Outer dimensions (L×W×H) 6500×2400×2600 mm
Weight 8000 kg
Rotation speed of gyrator 0-120 r/min
Rotary torque 1400 N*m
Maximum push-pull force 25000 N
Lifting angle of drill boom Up 54°, down 26°
Tilt angle of beam 125°
Swing angle of carriage Right 47 °, left 47°
Lateral horizontal swing angle of carriage Right -15°~97°
Swing angel of drill boom Right 53°, left 15°
Leveling angle of frame Up 10°, down 9°
One-time advance length 3000 mm
Compensation length 900 mm
DTH hammer M3
Drilling rod φ64×3000 mm
Method of dust collecting Dry type (hydraulic cyclonic laminar flow)
