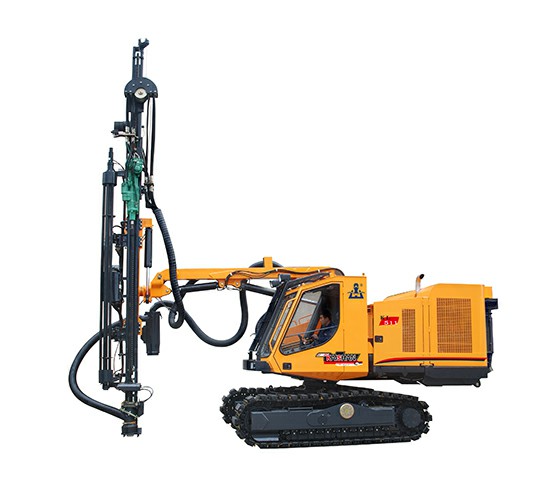

KL511 Hydraulic Drilling Rig

Technical Specifications: KL511

Rock Drill Model: HC170RP 23.4kW

Drilling Diameter: 76-127 mm

Drilling Depth: 25 m

Product Applications Product Features Technical Parameters Related Products

Applications

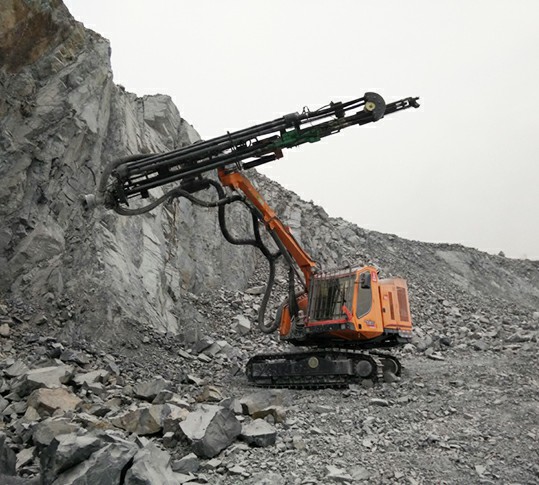

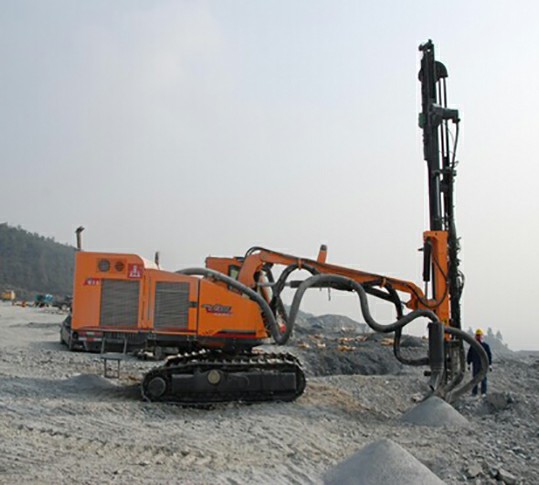

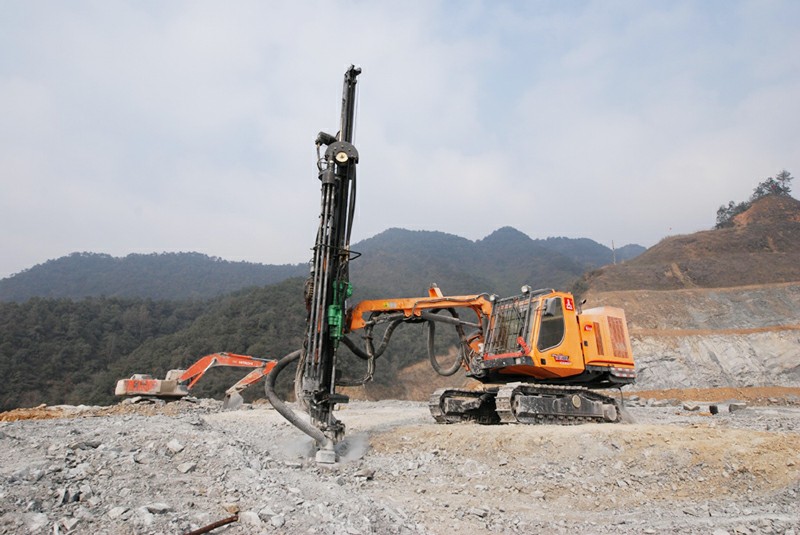

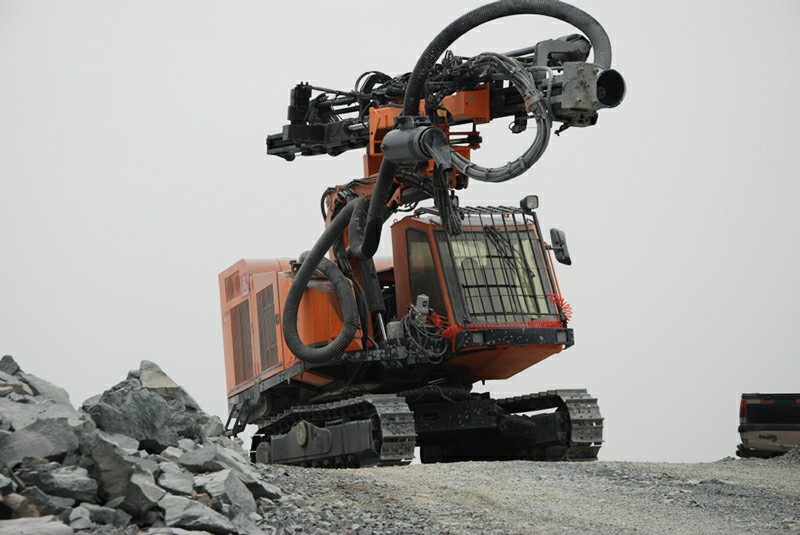

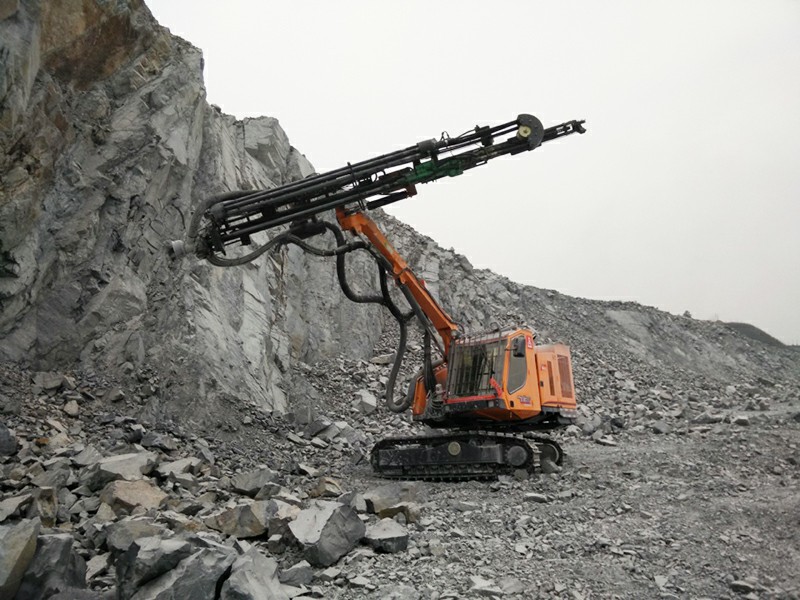

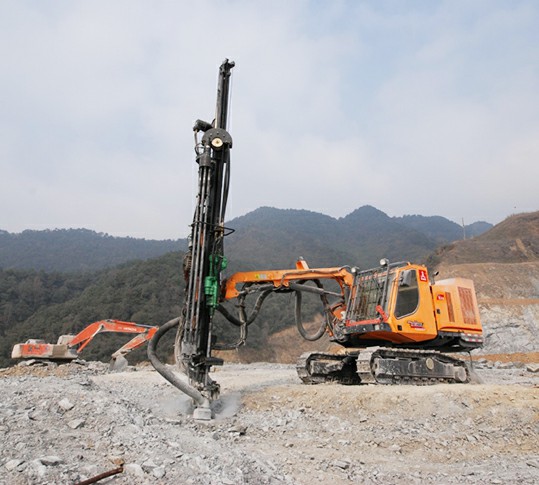

KL511 hydraulic drilling rig for open use is fitted with the standard drill rod whose diameter reaches 45/51mm, which is capable of drilling vertical, inclined and horizontal blast holes in the range of 76 - 127mm. It has a wide range of applications in cutting excavation, pipelining, foundation and open-pit mine drilling.

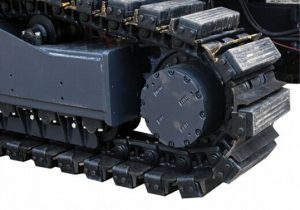

  • Track component

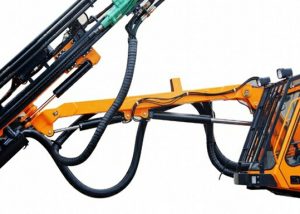

  • Drill arm component

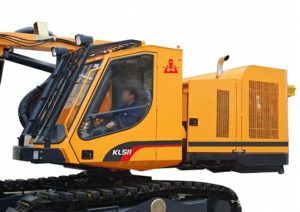

  • Cab

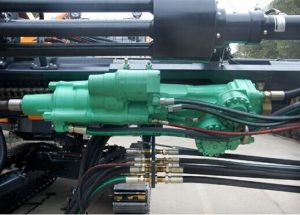

  • Imported full hydraulic rock drill



Features


  • The KL511 drilling rig is equipped with a heavy-duty hydraulic top hammer rock drill (23.4KW). With powerful rotary toque, shock power, adequate hole flushing and advanced control system, make it perfectly capable drilling in complex rock conditions;

  • The frame of the drill rig is capable of  rotating in the range of 0 - 180°. In this way, the drill rig can cover 26.5 square meters with one single positioning, which can considerably improve the efficiency of hole arrangement and its response to complex conditions.

  • The drill rig is fitted with the efficient Kaishan screw air compressor. Characterized by energy conservation and environmental protection,it owns the complete proprietary intellectual property.

  • The power unit is placed at the end of the upper rotary rack, symmetric with drill boom and advancing beam. It is capable of producing an effect of counterbalance, wherever the drill boom and advancing beam are placed.

  • The travelling of drill rig, track leveling and the optional remote control of frame rotation can be operated outside the cab.

Technical Parameters

Technical Parameters
Dimensions and weight Hydraulic rock drill Drill boom, advancing beam and rod changer
Transport dimensions (length*width*height) 11100*2520*3320mm Model HC170RP Lifting of drill boom 83°
Impact  power 23.4KW Lifting of folding boom 87°
Weight 15000kg Impact  pressure 180bar Swing angle of Beam -56°/52°;-20°/94°
Articulated drill boom and chassis Impact  frequency 41HZ Carriage inclination 25°
Ground clearance 420mm Impact  frequency 1590Nm Compensation stroke 1353mm
Rack rotation 120°+60° Maximum rotary pressure 200bar Stroke of rock drill 4150mm
Drilling area 26.5m² Maximum rotary speed 130rpm
Frequency modulation angle of track 10° up,10° down Shank lubrication Air/oil mist Maximum propelling force 19KN
Tramming speed 0-3.5km/h Feed Method Motor-roller chain
Climbing capacity 30° Fuel consumption of lubrication 15drops/min Depth of economical drilling 25m
Traction 120kN
Power unit Drilling  diameter 76-127mm Number of rods 6+1
Engine Cateroillar C7.1 Control system Specification of drill rod T45/T51×3660
Number of cylinders 6 Travelling Hydraulic pilot + remote control (optional)
Output power 186KW/2200rpm Thread lubrication of drill rod Standard
Drive type Gearbox Drill boom Hydraulic direct control
Hydraulic pump 2×variable displacement piston pump+2×gear pump Rock drilling Pilot control(electric/hydraulic) Hydraulic system
Screw air compressor Zhejiang Kaishan Opening control Stepless
Capacity of air compressor 9.7m³/min Impact control Control of shock pressure Travelling, drilling Load sensing
Air pressure 10bar Filter fineness 10µm
Fuel tank 350L Anti-jamming Electric/hydraulic Cooling capacity Ambient temperature: +50°
Dust-collecting system Voltage 24V, DC Hydraulic oil tank 200L
Capacity of dust collector and vacuum degree 23m³/min; 1000mm water column Cab
Filter element/materia 13/fiber Safety cab Meet the requirements of FOPS and ROPS Seat Adjustable
Filtering area 10m² Indoor noise level Below 85dB(A) Air-conditioning Standard temperature
Power of hydraulic motor 12KW Control function Drilling, travelling, movement of drill boom and rod changer Entertainment Radio+MP3
