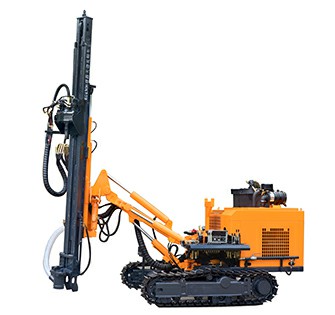

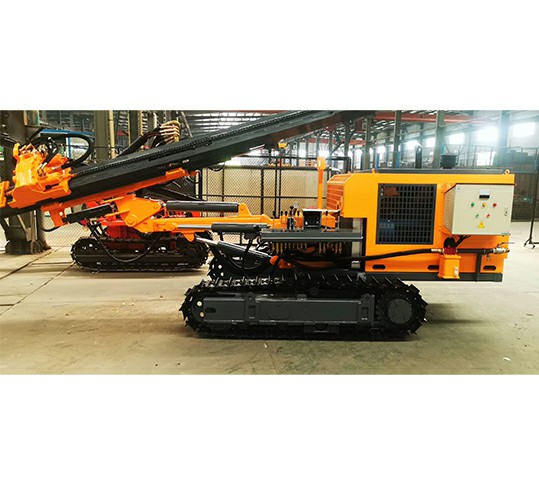

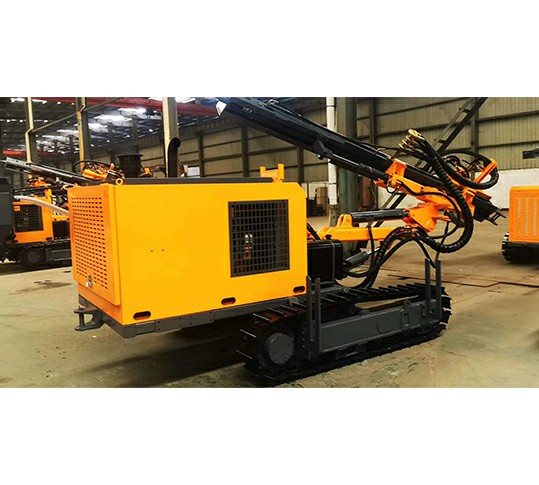

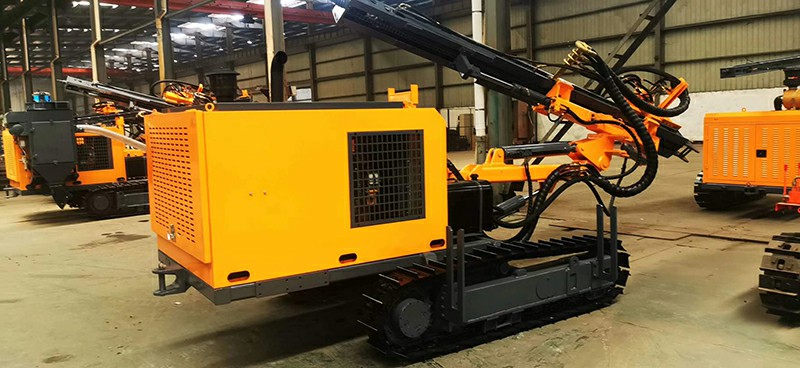

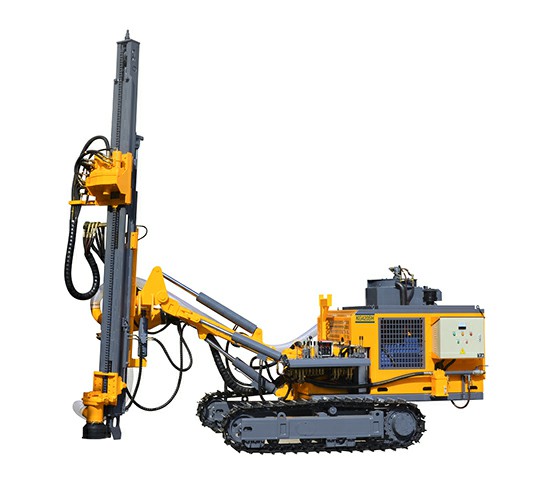

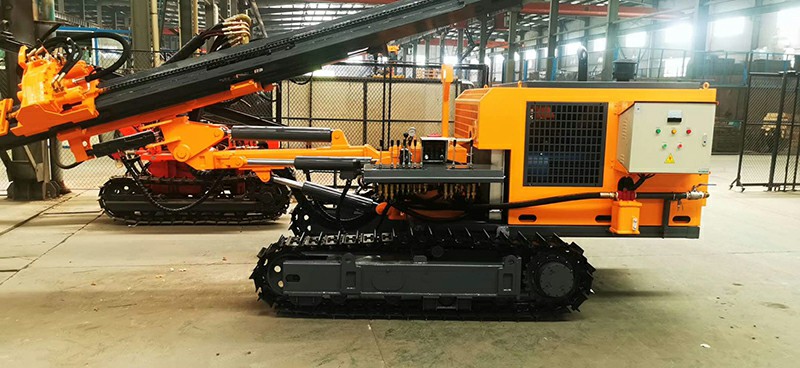

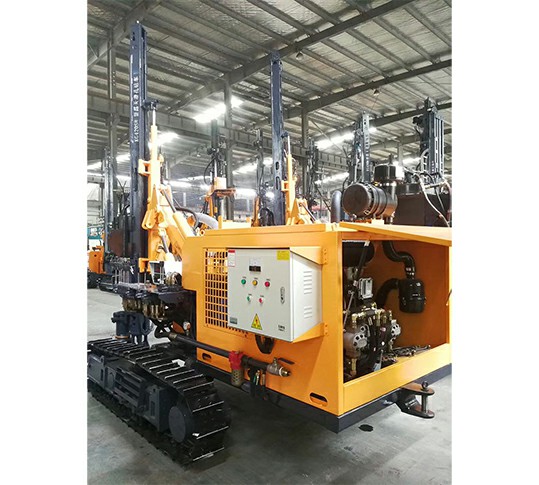

KG420S/KG420SH DTH Drill Rig for Open Use

Technical Specifications: KG420S/KG420SH

Rock Drill Model: 58kW/2200r/min
                         55kW/1460r/min

Drilling Diameter: 90-152 mm

Drilling Depth: 25 m

Product Applications Product Features Technical Parameters Related Products

Applications


The KG420S/KG420SH DTH drill rig for open use is equipped with a dust collector,thus making operation more environment-friendly and reliable.

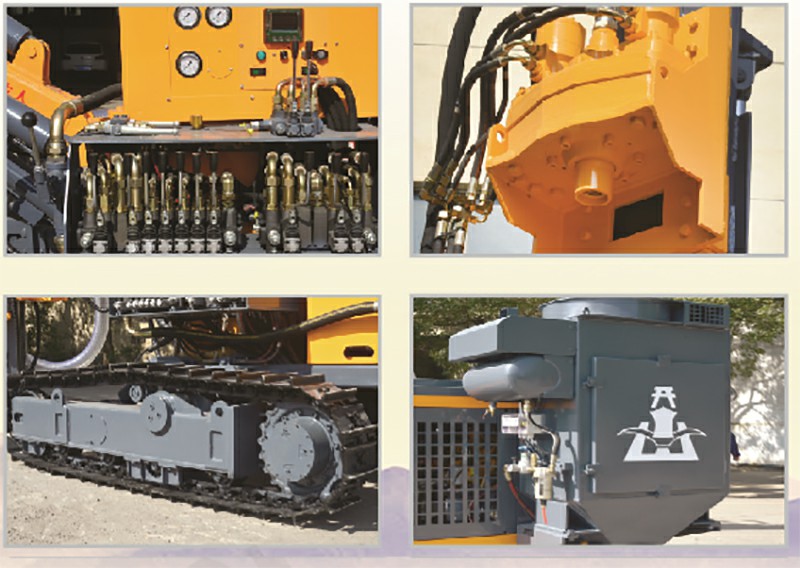

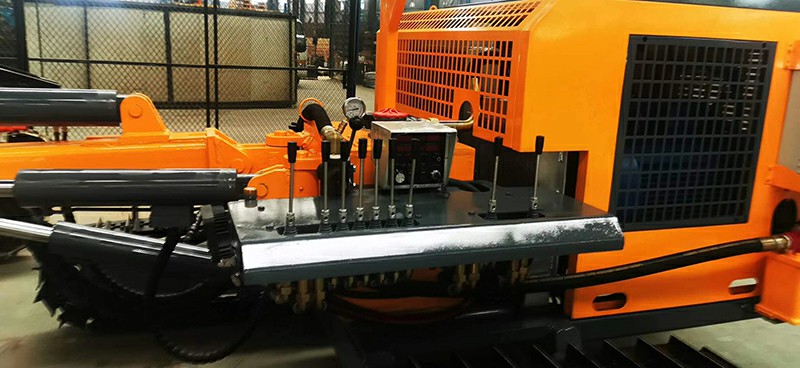

Features


The folding frame track,four-wheel drive and the tramming motor of plunger piston improve the working pressure and climbing capacity.

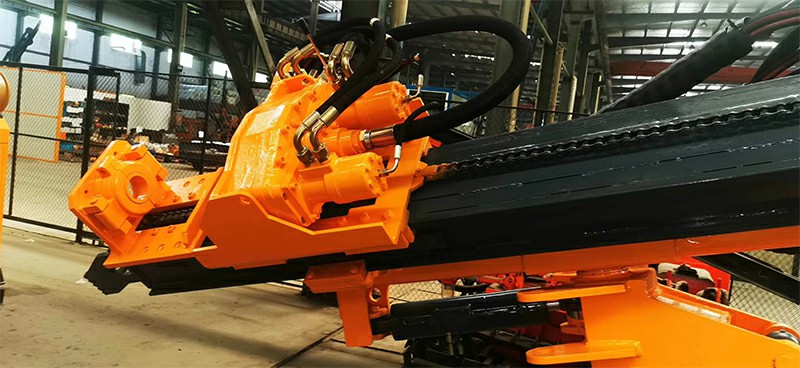

The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on limiting position.The double rotation motor increases the rotary torque and revolving speed, and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability.The thickened profile folder is used for the housing,thus improving its level of intensity and rigidity;and the additional ring make shandling and lifting convenient.

Recommended Air Compressors

Diesel engine portable screw air compressor:

Kaishan LGCY-13/13

Kaishan KSCY-580/13

Kaishan LGCY-18/17

Technical Parameters

Model of drill rig KG420S KG420SH
Weight of complete machine 5800KG 6100KG
Outer dimensions 6400×2250×2700mm 6400×2420×2700mm
Drilling hardness f=6-20
Drilling diameter Φ90-152mm
Depth of economical drilling 25m
Rotary speed 0-90rpm
Rotary torque 5000N·m(Max)
Lifting force 40KN
Method of Feed Oil cylinder+roller chain
Feed stroke 3175mm
Travelling speed 0-2.5km/h
Climbing capacity ≤30°
Ground clearance 515mm
Tilt angle of Beam Down: 110°, up: 35°, total: 145°
Swing angle of boom Left: 91°, right: 5°, total: 96°
Pitch angle of drill boom Down: 55°, up: 15°, total: 70°
Swing angle of drill boom Left: 32°, right: 32°, total: 64°
Compensation length of beam 1220mm
Supporting power Yuchai YC4DK80-T302 (58KW/2200r/min)
Motor(55KW/1460r/min)
DTH hammer K40
Drilling rod Φ76×2m+Φ76×3m
Air consumption 13-20m³/min
Maximum height of horizontal hole 2850mm
Minimum height of horizontal hole 350mm
Recommended Air Compressors
Diesel engine portable screw air compressor: Kaishan LGCY-13/13
Kaishan KSCY-580/13
Kaishan LGCY-18/17
Note: Air compressor selection subject to hole dimameter and air hose length
