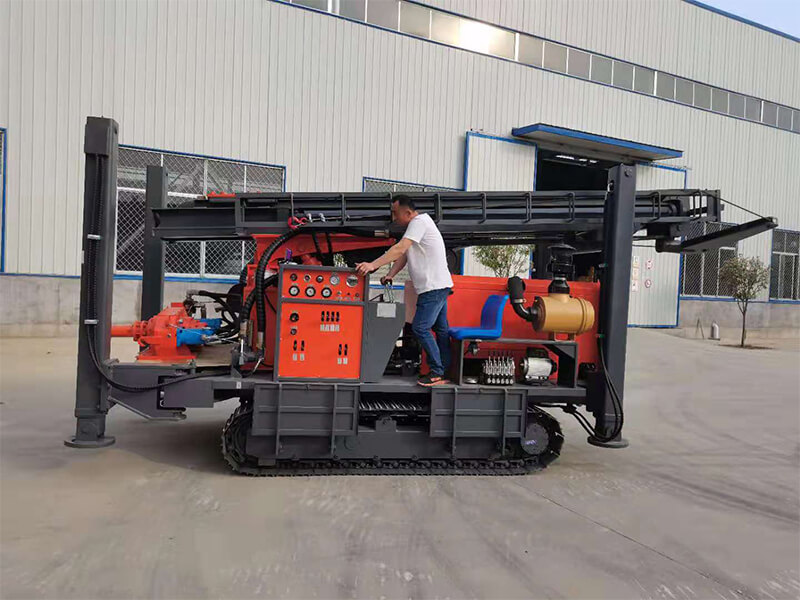

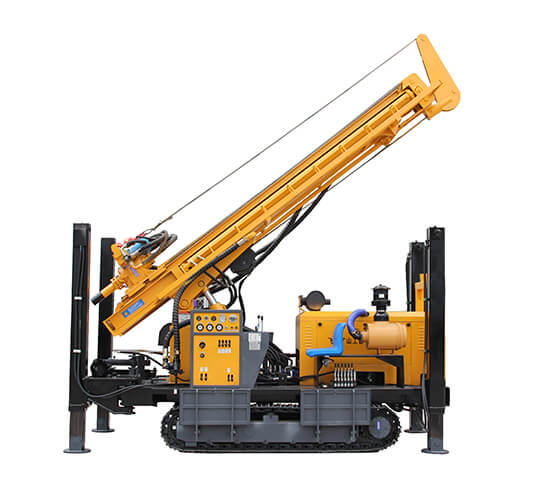

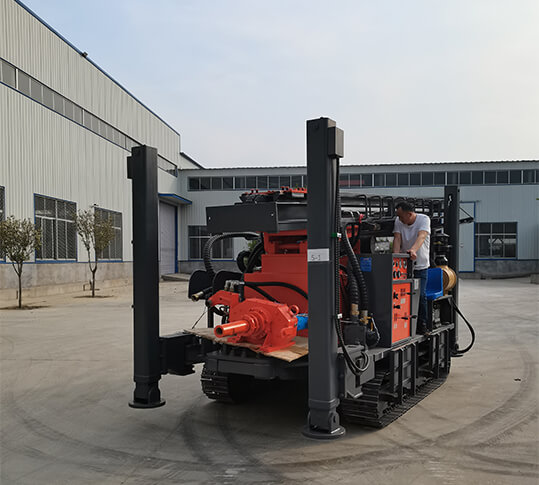

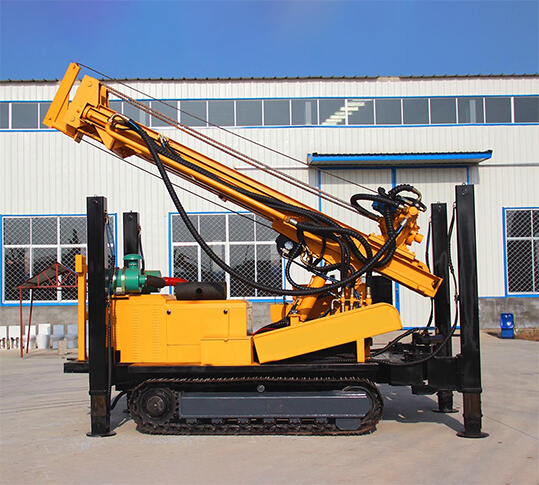

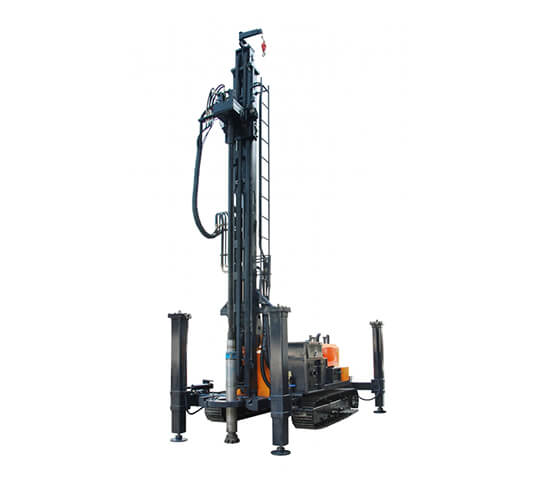

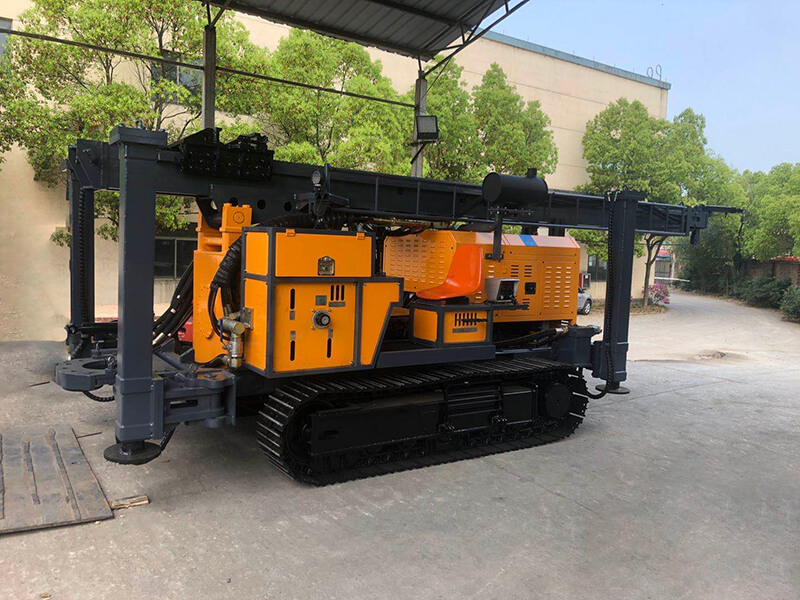

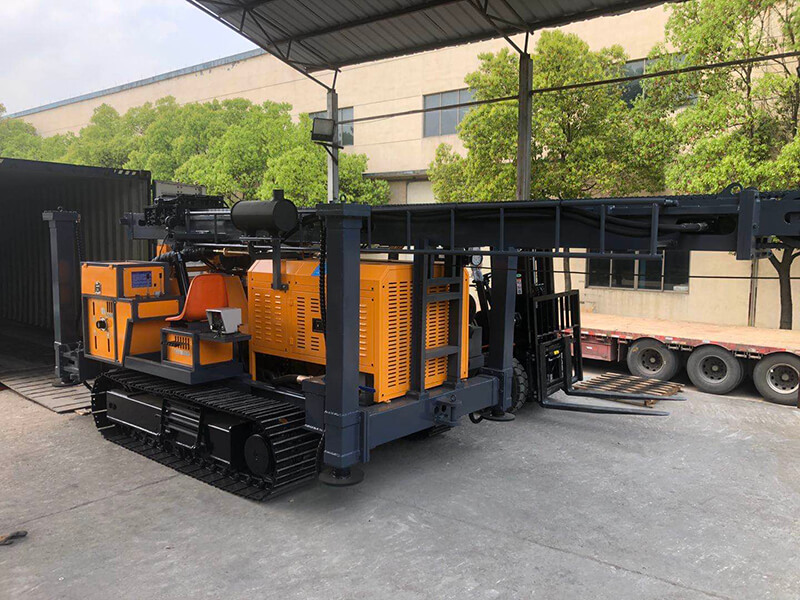

KW400 Water Well Drilling Rig

Technical Specifications: KW400

Equipped Engine: Yuchai 96KW

Drilling Diameter: 140-325mm

Drilling Depth: 400m

Product Applications Product Features Technical Parameters Related Products

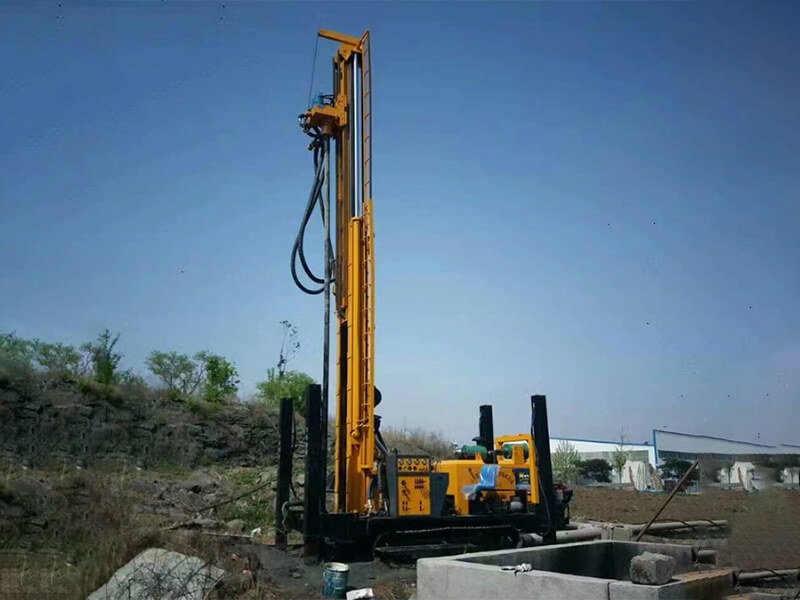

KW400 model Multi-Function Geothermal Water Well Drill Rig is mainly used for drilling water wells ,ground source heat pump wells and other uses of the borehole. The rig can drill work on different Geological formations, drilling hole diameter is larger, the max hole depth of up to 400 meters.


Unique deep hole axial compression adjustable system to Adjust impetus, deep hole drilling reduces the rotation resistance. Have two-stage telescopic /shrink carriage, use 6 m drill pipe, reducing the times of change drill pipe.

The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.

Technical Parameter

Model  KW400
Drilling depth 400m
The hole diameter Φ140--325mm
One-time advance length 6.6m
Working pressure 17-34bar
Air consumption 17-36m³/min
Drilling pipe length 1.5m  2m  3m  6m
Drill pipe diameter Φ89 ,φ102mm
Rig lifting force 24T
Hoisting force of winch 2T
Swing torque 6500-9000N.m
Swing speed 66-135r/min
The penetration efficiency 15-35m/h
High leg stroke 1.6m
The engine brand Yuchai
Equipped capacitor 96KW
Walking speed 0-2.5 Km/h
Climbing angles 30°
The weight 9.2T
Dimension 5950*2100*2550mm
Use Complicated geological conditions: Rock, mud, sand etc.
Drilling mode Superior hydraulic rotation and propulsion & DTH drilling or mud pumping
Equipped with Hammer  5'',6", 7",8" Medium and high wind pressure series
Tool Winch, Welding machines,Foam pump
