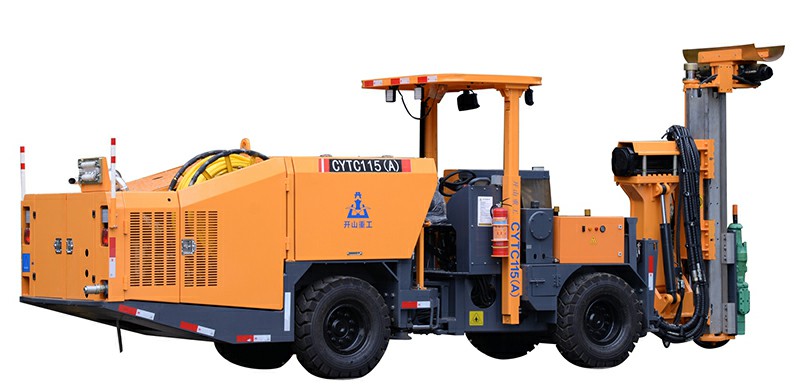

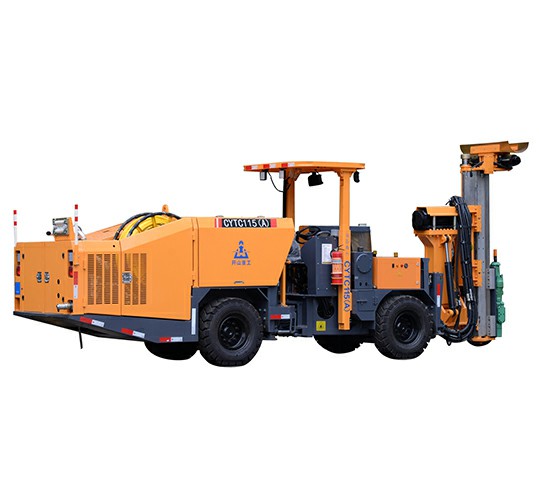

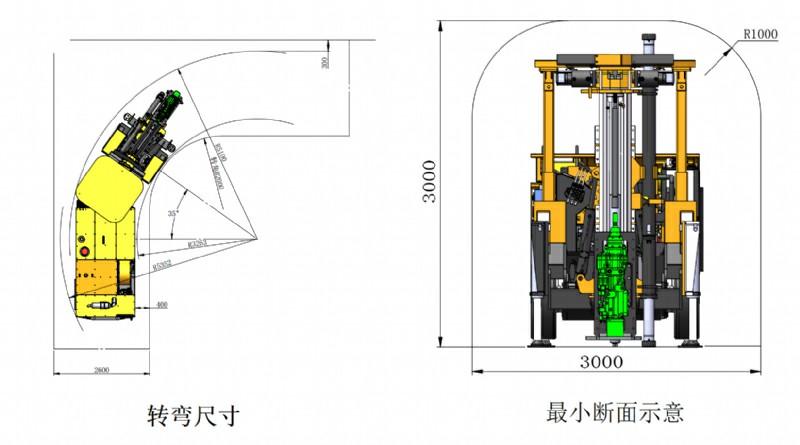

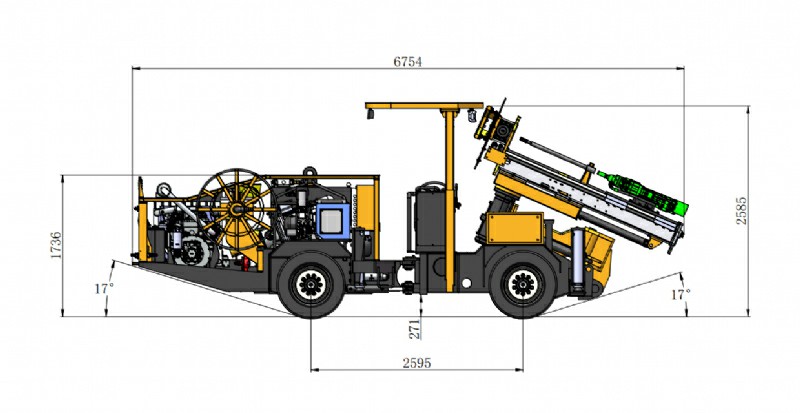

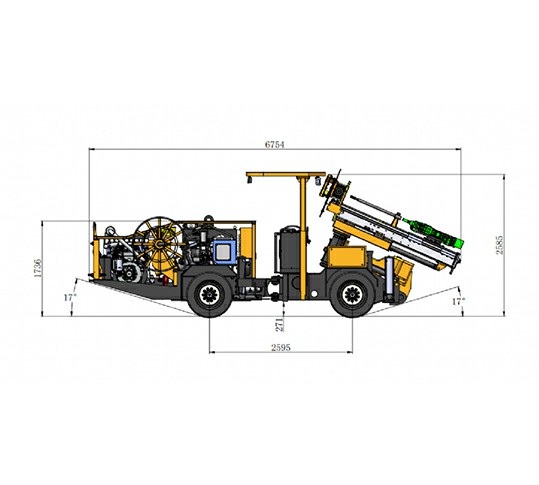

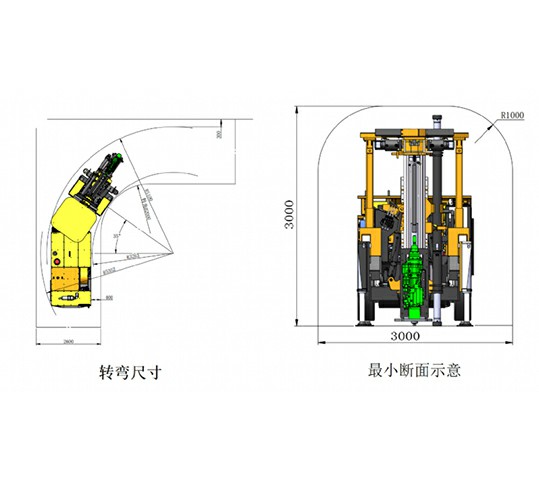

KSJ21-CYTC115 Hydraulic Mining Drilling Rig

Model: KSJ21-CYTC115

Climbing capacity: ≤14°

Width of tunnel: 3.5-5 m

Height of tunnel: 3.5-5 m

Drilling depth: 42 m

Product Applications Product Features Technical Parameters Related Products


KSJ21-CYTC115 Hydraulic mining drilling rig is mainly used for blast drilling of medium-length hole mining and supporting drilling of anchor cable. Both the applicable height and width of tunnels fall in the range of 3.5m-5m.


  • The automatic rod-changing system has a storing capacity of 27 drill rods and the drilling depth can reach as far as 42 meters.
  • The front and rear of the advancing beam are fitted with hydraulic supporting cylinders for smooth drilling. It is fitted with the hydraulic guiding cylinders and thus ensures the drilling straightness as good as possible.
  • The trolley-type workbench with a good sight is adopted; and the wireless remote controller can serve as an option.
  • The articulated mining chassis of closed hydraulic drive is suitable for small and medium-sized tunnels.
  • The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of ipacct wave and drilling speed and reduce the consumption of drilling tools and make it in good condition.

Technical Parameters

Technical parameters Air & water system
Length 9700mm Air compressor 1×JN5.5 Oil Consumption of lubrication 180-250 g/h
Width 2300mm Capacity of air compressor 0.75 m3/min
Height 3300 mm Pressure 6-8bar Power of water pump 5.5kW
Weight Appr. 16000㎏ Device of shank lubrication Electronic pulse lubrication pump
Tramming speed on flat ground 10km/h Air consumption of lubrication 0.3 m 3/min Capacity of water pump 8m3/h
Maximum climbing capacity 25% (14°) Chassis
Safety protection Diesel engine Cummins QSB3.9-C80/60kW/2200rpm Steering mechanism Articulated steering: ±40°
Noise level <100dB(A)
Exhaust purification Exhaust catalyst Travelling braking Double-circuit hydraulic brake
Lifting safety roof FOPS and ROPS certificate
Drive system Closed travelling system of four-wheel drive Parking braking Wet multidisc brake of reducer
    Swing angle Swing of rear axle:±10° Fuel tank 60L
Tires 12.00-20
Drilling system Electric hydraulic power unit
Model of rock drill HC95LQW/RD 22U Motor 75kW three-phase motor
Impact power 24kW/ 22kW Impact /Feed/ Positioning Axial variable displacement piston pump
Impact Frequency 57Hz/ 53Hz
Torque 955Nm/ 1550Nm Rotation Gear pump
Shank thread T38、T45 Filter fineness 10μ
Hole diameter 64-76 89-102 Hydraulic oil tank 240 L
Thread of drill rod T38 T45 Hydraulic cooler water cooler
Drilling depth 42m 42m Working voltage 380V
Pitch angle of advancing beam Front: 20°, back: 65° Frequency 50HZ
Ring angle 360° Starting method Star-triangle
Rang of Parallel holes 1500mm each side Cable specifications 3×50+3G10
Length of drill rod 1525mm 1830mm
Length of advancing beam 3500mm 3800mm
Feed extension 1200mm 1200mm
