Model: PDS400S
Rated output (kW[HP]/rpm): 75.2 [100.8] / 2600
L×W×H (mm): 3680×1975×1820
Engine oil capacity (L):13
PDS400S Mobile Diesel Screw Air Compressor is designed to provide reliable and continuous compressed air for demanding outdoor applications. With a mobile design and diesel-powered operation, it offers easy transportation and flexible use in drilling, construction, mining, and other field operations.

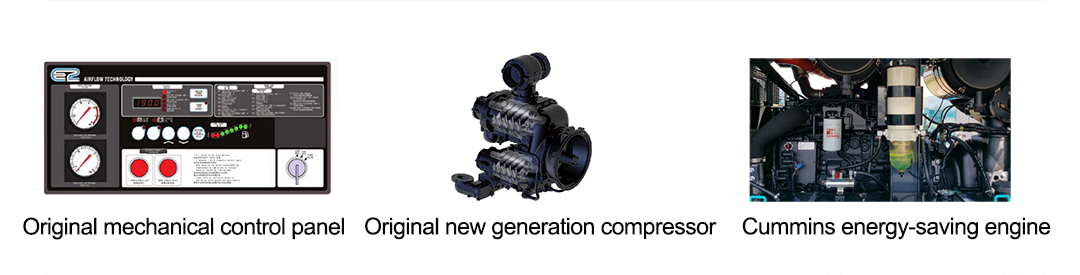

New generation of high‑efficiency and energy‑saving compressor, with higher heat resistance, wear resistance and pressure resistance.
A new generation of energy‑saving and environment‑friendly engine, which is fuel efficient and durable.
The control system, which is upgraded again iteratively, can more perfectly achieve accurate fuel supply, real‑time speed adjustment, significantly reduce fuel consumption and emissions.
Automatic preheating and other functions ensure normal startup and operation in cold regions.
|
COMPRESSOR |
|
|
Type |
Rotary Twin Screw, Single‑Stage, Oil‑Injected |
|
Free air delivery (m3/min [CFM]) |
11.3 [399] |
|
Rated operating pressure (MPa)[kgf/cm2][psi] |
0.7 [7.14] [102] |
|
Compressor oil capacity (L) |
40 |
|
Air outlet valve |
3/4"×2, 2"×1 |
|
ENGINE |
|
|
Brand |
KUBOTA |
|
Model |
V3800DI‑TI‑E2B |
|
Type |
Direct‑Injection, Turbo‑Charged, Intercooled |
|
Fuel injection / control method |
Mechanical In‑line Pump |
|
Emission stage |
US Tier 2 |
|
Rated output (kW[HP]/rpm) |
75.2 [100.8] / 2600 |
|
Engine oil capacity (L) |
13 |
|
Fuel tank capacity (L) |
177 |
|
Coolant capacity (L) |
15.6 |
|
Battery |
120Ah×1 |
|
DIMENSION & WEIGHT, etc. |
|
|

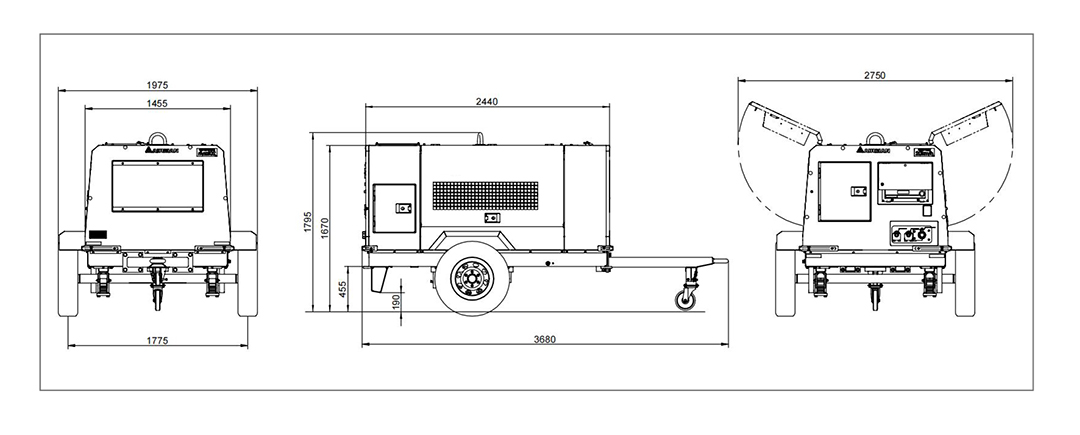

L×W×H (mm) |
3680×1975×1820 |
|
Dry (Operating) weight (kg) |
1735 (1935) |
|
Tire Size |
6.50‑R16 10PR×2 |
|
Sound power level in decibels (dB) |
99 |
|
Sound pressure level (dB[A]) |
71 |
