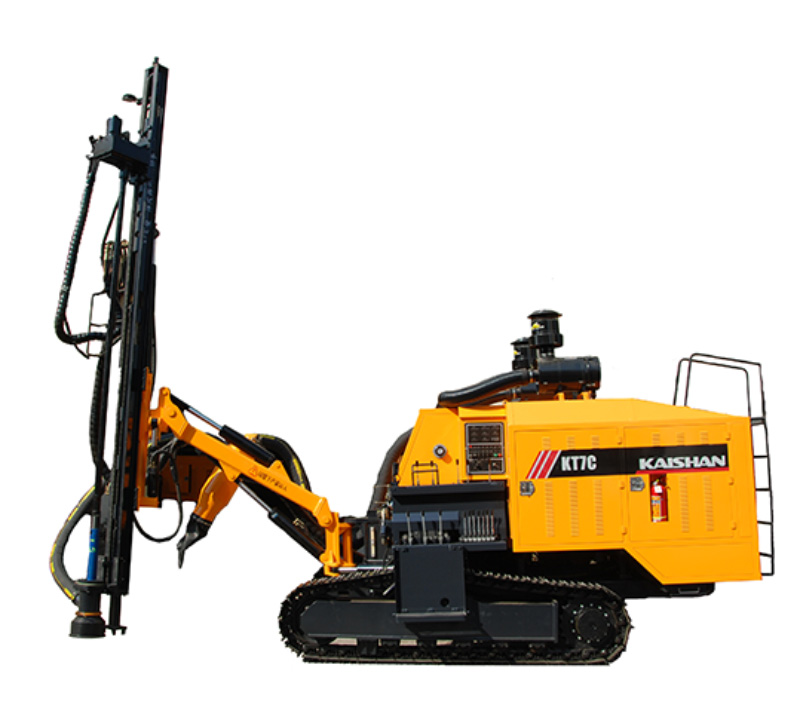

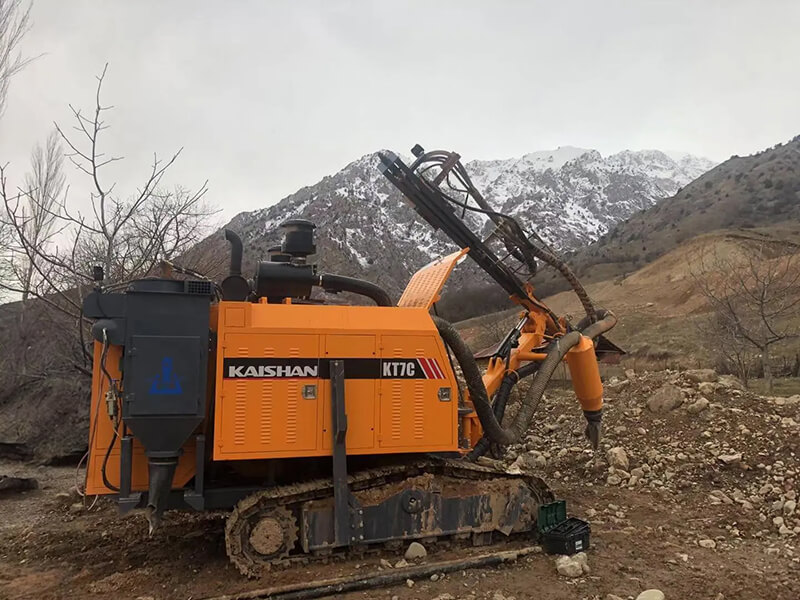

KT7C Integrated Down the hole Drill Rig for Open Use

Overview:

The KT7C high air-pressure down the hole drill rig for open use is an advanced drilling device integrating down the hole drilling system and screw air compression system, typical of compact structure, excellent integrity and mobility.

Product Applications Product Features Technical Parameters Related Products

Applications

The KT7C high air-pressure down the hole drill rig for open use is an advanced drilling device integrating down the hole drilling system and screw air compression system, typical of compact structure, excellent integrity and mobility. Equipped with the single-stage high air-pressure screw host, the flow stands at 13m3/min and air pressure at 1.7MPa, thereby proving high-valued parameters. The drill rig provides strong power for the high air-pressure down the hole hammer and the drilling speed is higher than that of middle air-pressure drill rig by 20%-50%. It is characterized by energy conservation, efficiency, safety, environment-friendliness, flexibility, simple operation and stable performance, etc. Equipped with the Yuchai China stage III engine, the drill rig meets national standards for emissions and environment.

Performance Characteristics

  • 1.The drilling rig is equipped with screw air compressor and adopts the high air pressure pneumatic impact. The drilling rig is with high efficiency, low energy consumption.
  • 2. The drilling rig is equipped with hydraulic dry integrator to collect dust and reduces the pollution of the environment.
  • 3. The drilling rig is equipped with hydraulic manipulator, the drill pipe warehouse which disassemble the drill pipe and the floating joint which protect thread of drill pipe .One can disassemble the drill pipe.

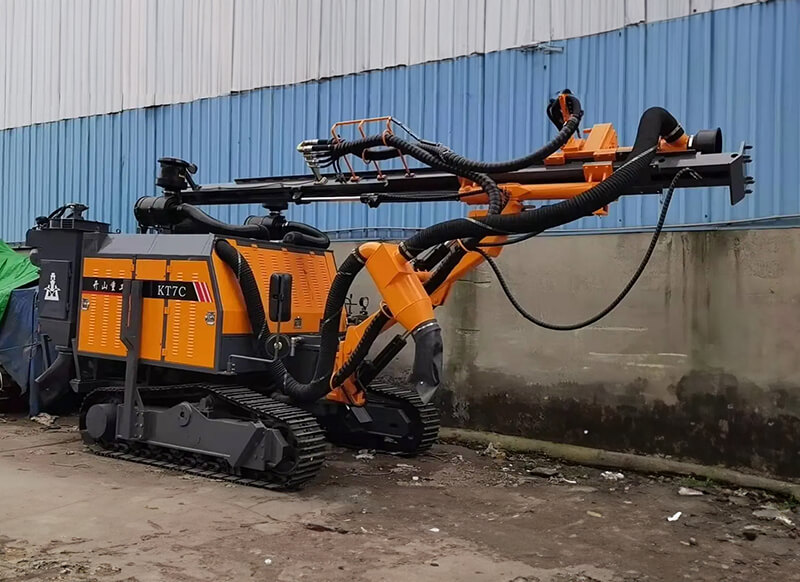

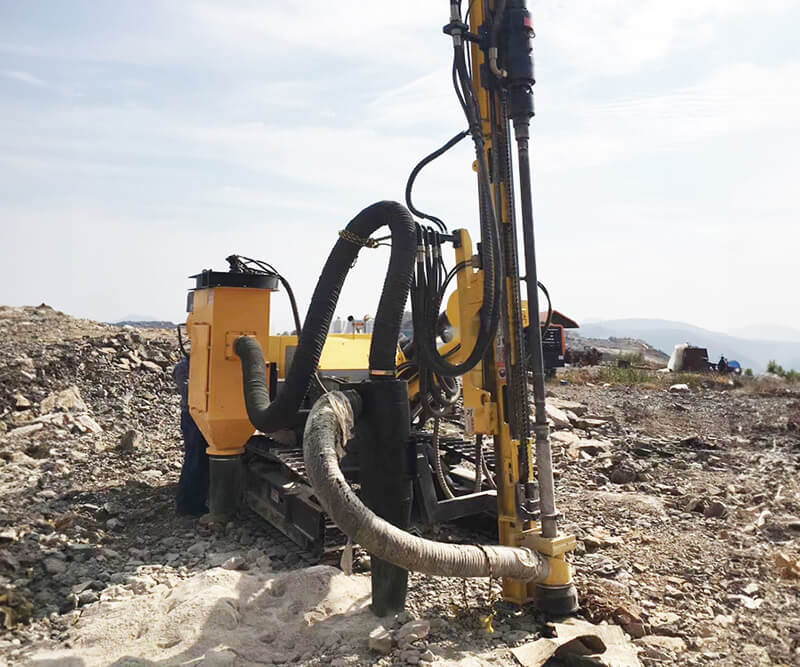

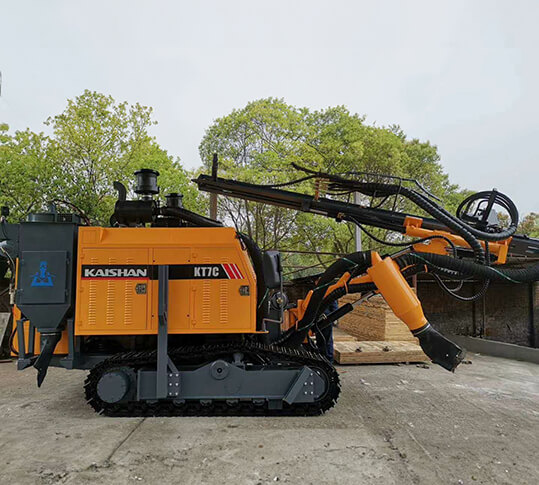

Detail features

Technical Parameters

Model of drill rig KT7C
Drilling hardness f=6-20
Drilling diameter 80-105 mm
Depth of economical drilling 25 m
Travelling speed 2.5/4.0 km/h
Climbing capacity 30°
Ground clearance 430 mm
Power of complete machine 195 kW
Diesel engine Yuchai YC6A260-T303
Capacity of screw compressor 13 m3/min
Discharge pressure of screw compressor 17 bar
Outer dimensions (L×W×H) 8000×2260×2800 mm
Weight 9500 kg
Rotation speed of gyrator 0-120 r/min
Rotary torque 1900 N*m
Maximum push-pull force 25000 N
Lifting angle of drill boom Up 28°, down 42°
Tilt angle of beam 129°
Swing angle of carriage Right 38 °,left 35°
Lateral horizontal swing angle of carriage Right 42°~89°
Swing angel of drill boom Right 39°, left 60°
Leveling angle of frame Up 10°, down 9°
One-time advance length 3000 mm
Compensation length 900 mm
DTH hammer K3
Drilling rod φ64×3000 mm
Method of dust collecting Dry type (hydraulic cyclonic laminar flow)
