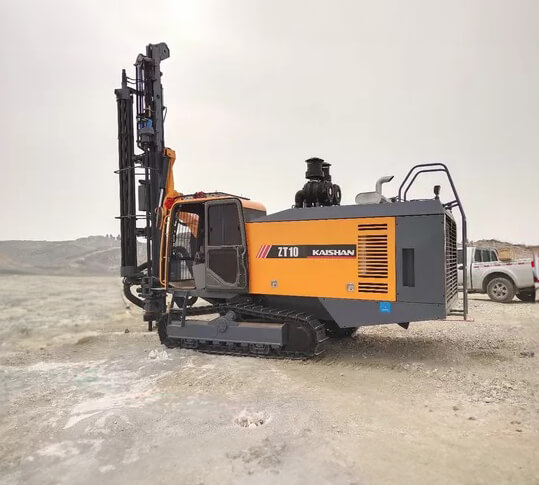

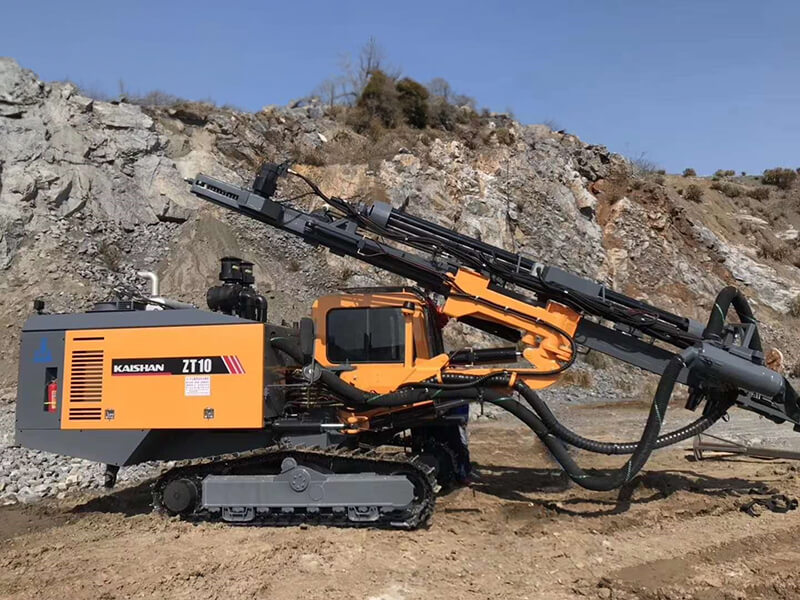

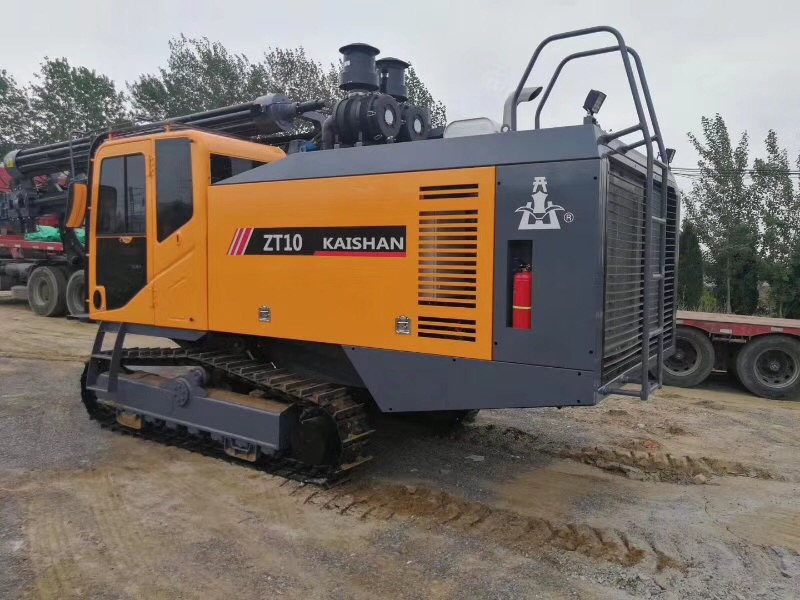

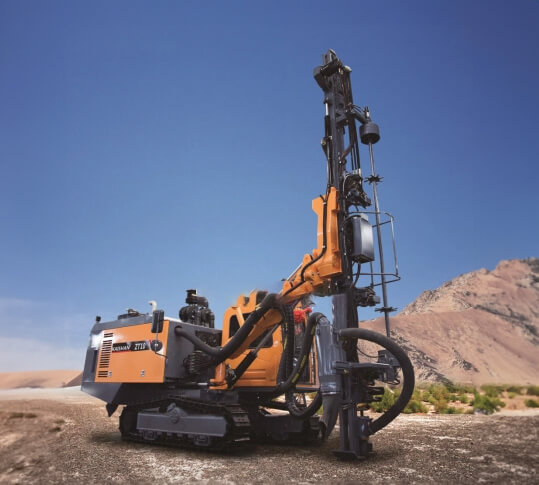

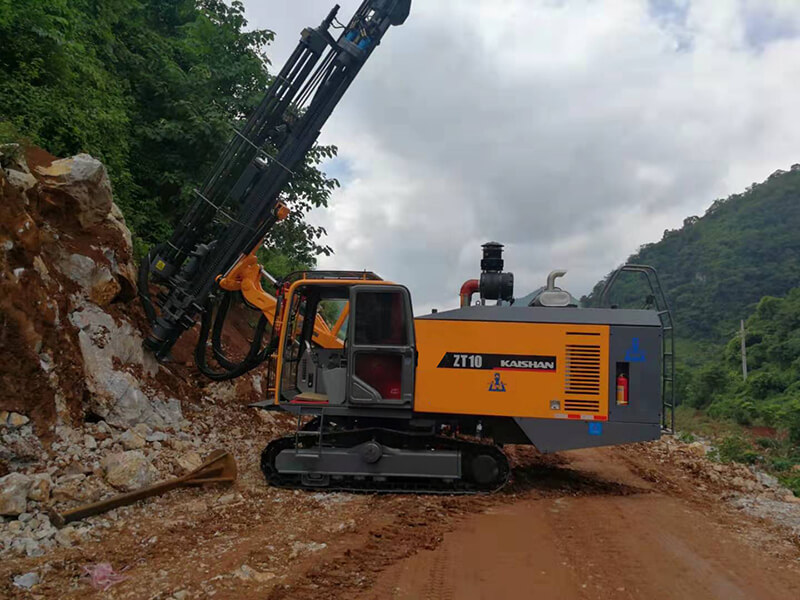

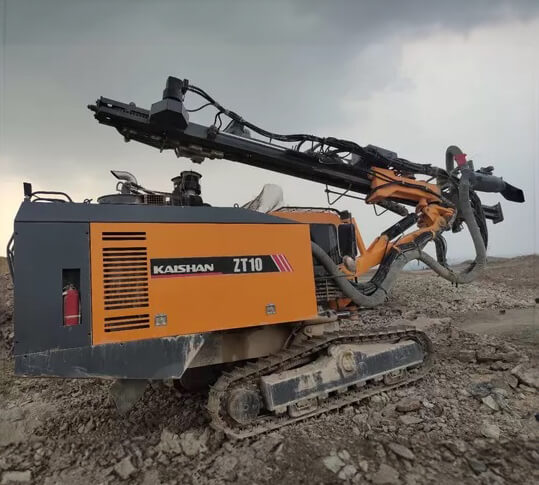

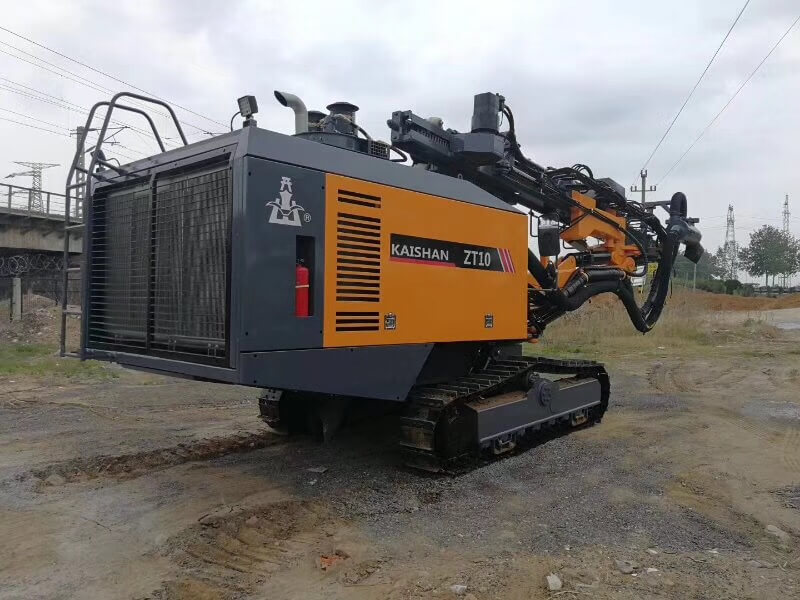

ZT10 Integrated Down the hole Drill Rig for Open Use

Technical Specifications: ZT10

Power: 228 kW /2200r/min

Drilling Diameter: 105-130 mm

Drilling Depth: 32 m

Product Applications Product Features Technical Parameters Related Products

Applications


The ZT10 integrated down the hole drill rig for open use is a new drilling device developed by Kaishan Group after years of development and production of down the hole drill rig to meet the needs of large open-pit mines.

Features


Its travelling, propulsion, rotation and angle adjustments are based on hydraulic drive, thereby proving its powerfulness. The high air-pressure screw nose and high air-pressure pneumatic Hammer contribute to efficient drilling. It is equipped with the dry hydraulic dust collector, thus reducing pollution. The hydraulic mechanism is used to dismount the drilling rod, the floating joint to protect the thread of drilling rod, the automatic unloading rod device to relieve labor intensity, the air-conditioned cab provides comfortable space and the anti-Jamming valve with automatic control reduces the possibility of sticking. And what is more, the drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc.

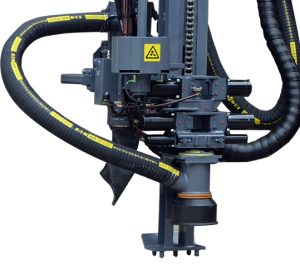

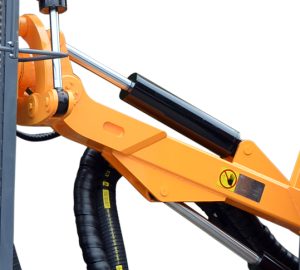

  • High torque gyrator drill rig rig rig rig



  • Stable hydraulic system drill rig rig



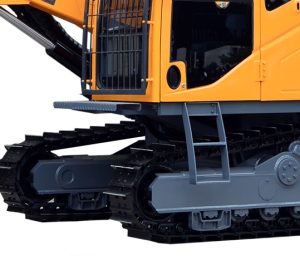

  • Steel track adaptable to all terrains



  • Automatic loading and unloading drill pipe



Technical Parameters

Transport dimensions(L*W*H) 9230*2360*3260mm
Weight 15000Kg
Rock hardness f=6-20
Drilling diameter 105-130mm
Ground clearance 430mm
Leveling angle of track 10ºUP. 10ºDOWN
Travelling speed 0-3Km/h
Climbling capacity 25º
Traction 120KN
Rotary torque(Max) 2800N*m ( Max)
Rotation speed 0-120rpm
Lifting angle of drill boom UP47º,Down20º
Swing angle of drill boom Right50º,Left20º
Swing angle of carriage Right95º,left35º
Tilt angle of beam 114º
Compensation stroke 1353mm
Feed stroke 4490mm
Maximum propelling force 25KN
Method of propulsion Motor+Roller chain
Depth of economical drilling 32m
Number of rods 7+1
Specifications of drilling rod 76*4000mm
DTH hammer  K40
Engine YUCHAI YC6L310-H300
Output power 228KW/2200rpm
Screw air compressor Zhejiang Kaishan
Air capacity 18m³/min
Air pressure 17Bar
Travelling control system Hydraulic pilot
Drilling control system Hydraulic pilot
Anti-Jamming Automatic electro-hydraulic anti-jamming
Voltage 24V.DC
Safe cab Meet the requirements of FOPS&ROPS
Indoor noise Below 85dB(A)
Seat  Adjustable
Air-conditioning Standard temperature
Entertainment Radio+Mp3
