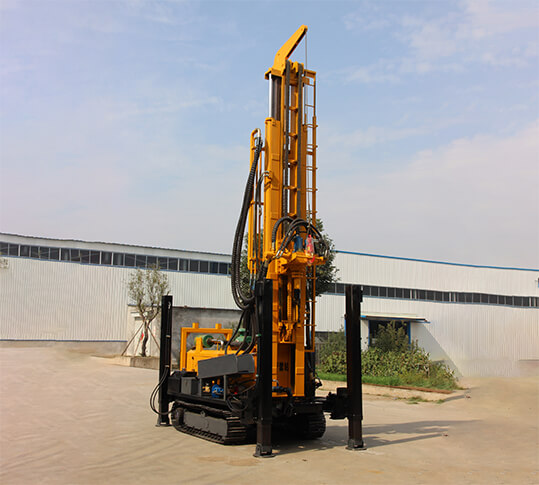

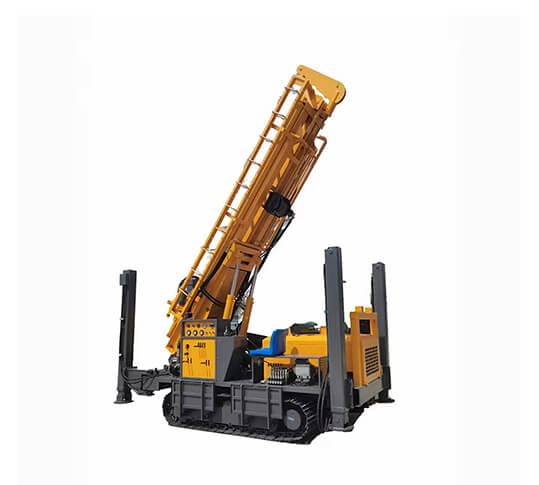

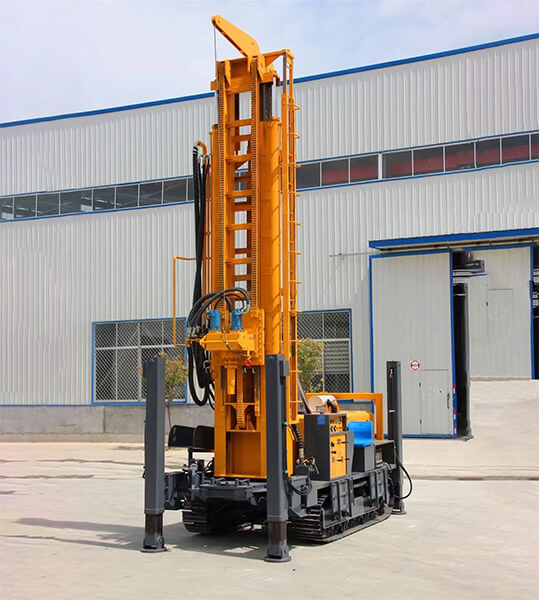

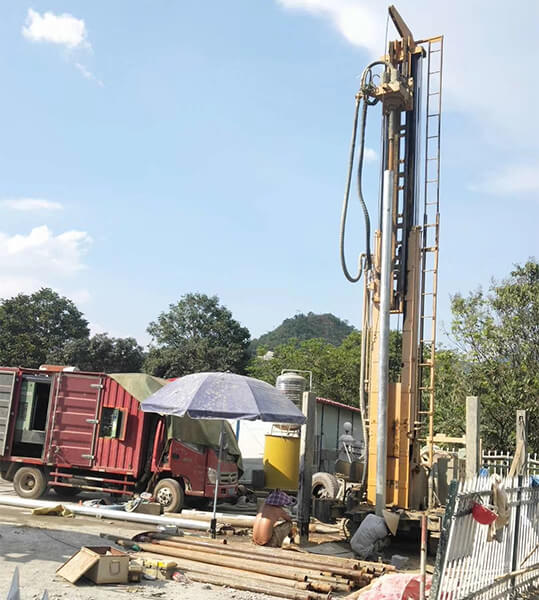

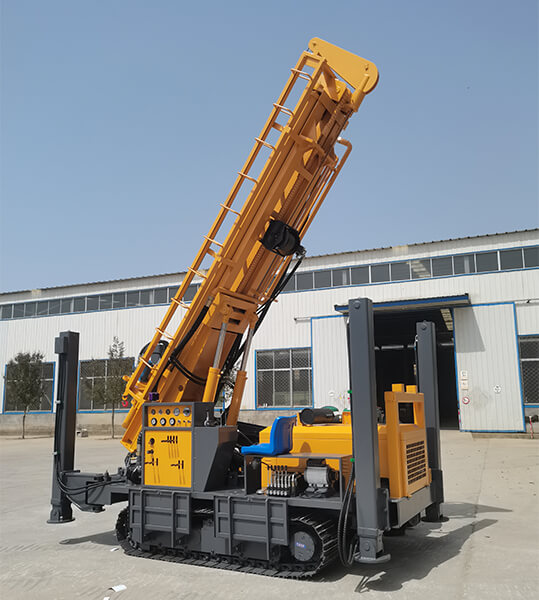

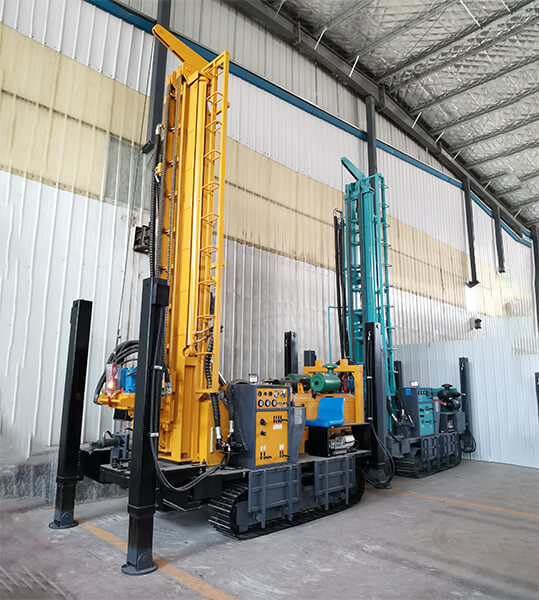

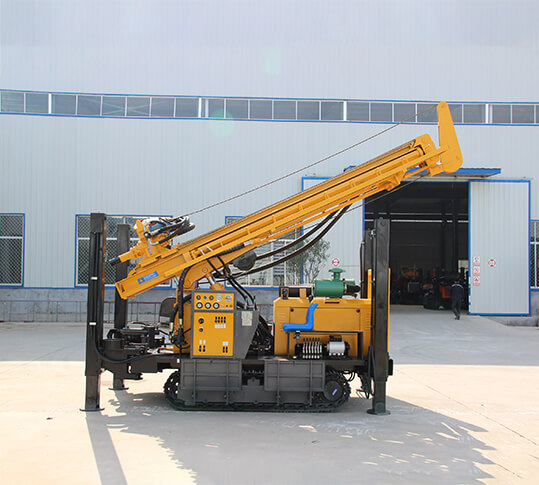

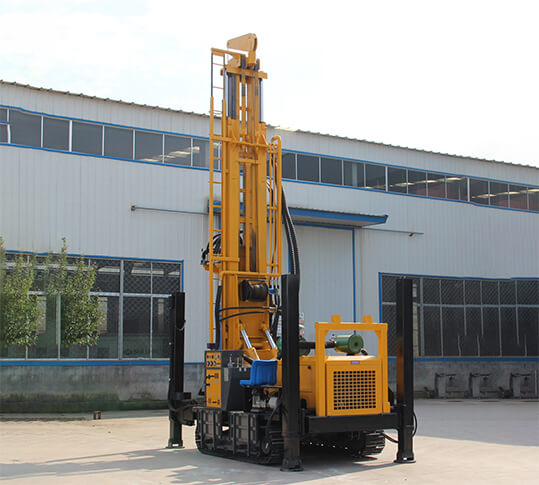

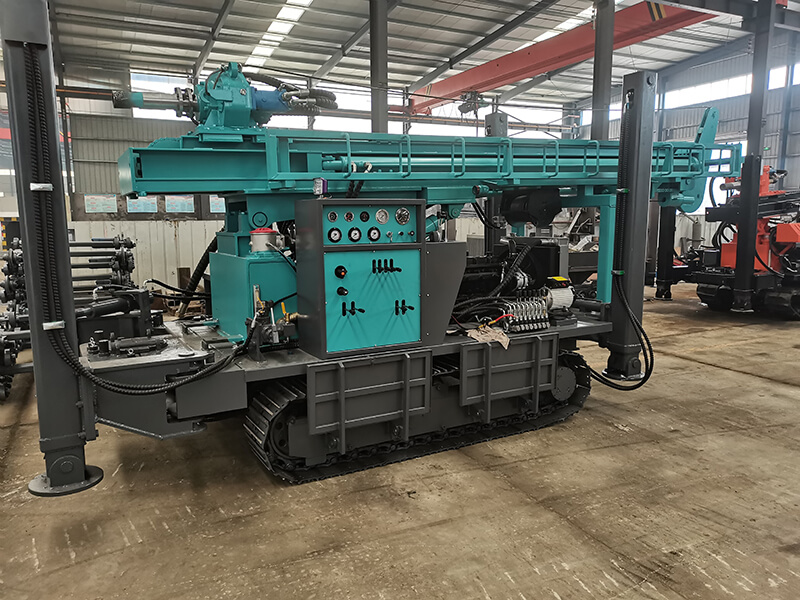

KW350 Water Well Drilling Rig

Overview:

KW350 model Multi-Function Geothermal Water Well Drill Rig is mainly used for drilling water wells ,ground source heat pump wells and other uses of the borehole. The rig can drill work on different Geological formations, drilling hole diameter is larger, the max. hole depth of up to 350 meters.

Product Applications Product Features Technical Parameters Related Products

Applications

KW350 model Multi-Function Geothermal Water Well Drill Rig is mainly used for drilling water wells ,ground source heat pump wells and other uses of the borehole. The rig can drill work on different Geological formations, drilling hole diameter is larger, the max hole depth of up to 350 meters. Unique deep hole axial compression adjustable system to Adjust impetus, deep hole drilling reduces the rotation resistance. Have two-stage telescopic /shrink carriage, use 6 m drill pipe, reducing the times of change drill pipe.

The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.



Performance Characteristics

  • Equipped with 92KW Yuchai brand turbocharged engine, strong power.
  • Patented design composite boom, double cylinder lift, long stroke, large tonnage.
  • The main boom of each rig is equipped with a stopper to protect the cylinder.
  • Drilling machine chassis: professional excavator chassis ,durable,heavy bearing capacity,wide chain plate, less damage to hard road.
  • Parallel gearbox design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost.
  • The travel motor is equipped with reducer, durable and long service life.
  • Fast distribution valve: the speed of three gears up to 66-135 rpm, basically achieve the dual-use function of water and air.
  • Each hydraulic hose is covered with soft management set to make the hose last longer.
  • The rig power is driven by the diesel engine, and the rig's walking, turning, propulsion, lifting, outriggers, and unloading rods are all controlled by hydraulic pressure.
  • The rig's walking is a crawler-type self-structure, which is easy to move. Its rubber crawler-type chassis makes it easy to walk in the city and the courtyard, and it is not easy to damage the ground.
  • High and Strong hydraulic legs allow quick and stable adjustment of the rig's body level for easy loading and unloading and shifting positions.
  • Dedicated wellhead setting provide a the certain center for drilling to ensure the  vertical opening and positioning accuracy.
  • Mechanical positioning of the carriage and frame improves the stability of the carriage.
  • The pneumatic system has a custom oil injector that lubricates the impactor, effectively increasing the life of the impactor.

Technical Parameter

Model  KW350
Drilling depth 350m
The hole diameter Φ140--325mm
One-time advance length 6.6m
Working pressure 17-34bar
Air consumption 17-36m³/min
Drilling pipe length 1.5m  2m  3m  6m
Drill pipe diameter Φ89 ,φ102mm
Rig lifting force 22T
Hoisting force of winch 2T
Swing torque 6200-8500N.m
Swing speed 66-135r/min
The penetration efficiency 15-35m/h
High leg stroke 1.4m
The engine brand Yuchai
Equipped capacitor 92KW
Walking speed 0-2.5 Km/h
Climbing angles 30°
The weight 8.6T
Dimension 6000*2000*2550mm
Use Complicated geological conditions: Rock, mud, sand etc.
Drilling mode Superior hydraulic rotation and propulsion & DTH drilling or mud pumping
Equipped with Hammer  5'',6", 7",8" Medium and high wind pressure series
Tool Winch, Welding machines,Foam pump
