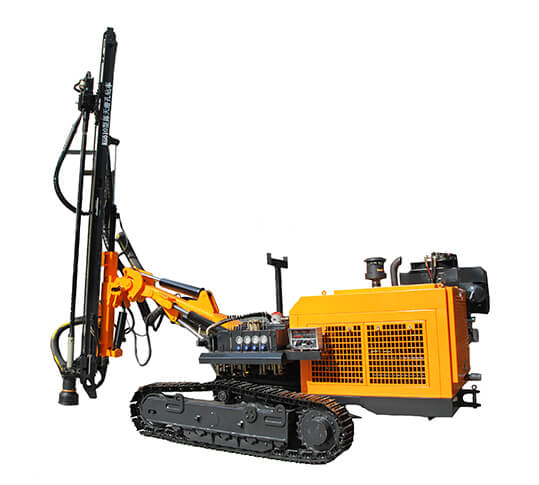

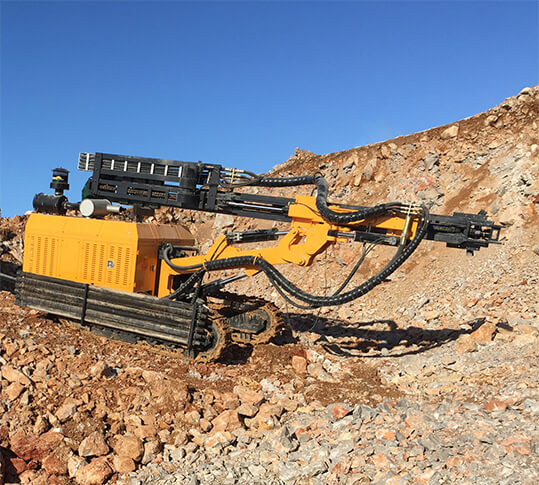

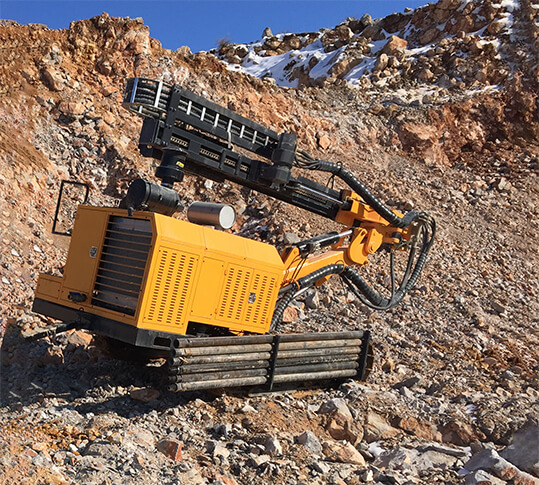

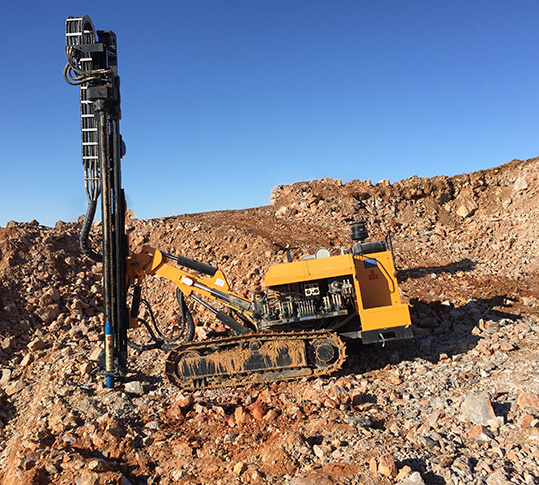

KG510/KG510H Down the hole Drill Rig for Open Use

Overview:

The KG510/KG510H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China III), the drill rig meets national standards for emissions and environment.

Product Applications Product Features Technical Parameters Related Products

Applications

The KG510/KG510H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China III), the drill rig meets national standards for emissions and environment. The folding frame track and four-wheel drive are adopted; and track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The dust collector is enlarged to produce a better effect on dust collection. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

The KG510H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters

Drilling diameter :Φ105-152mm
Depth of economical drilling :25m
Method of Feed:Oil cylinder-leaf chain
Feed stroke: 3000mm
Supporting power:YC4DK80-T302(58KW/2200r/min)/Yuchai
YC4DK80-T302(58KW/2200r/min)

Detail features

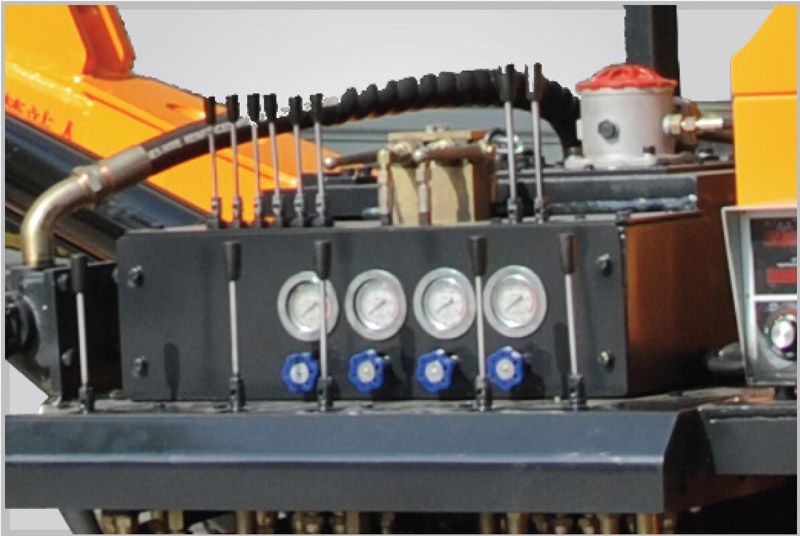

(Easy Used Control Panel)

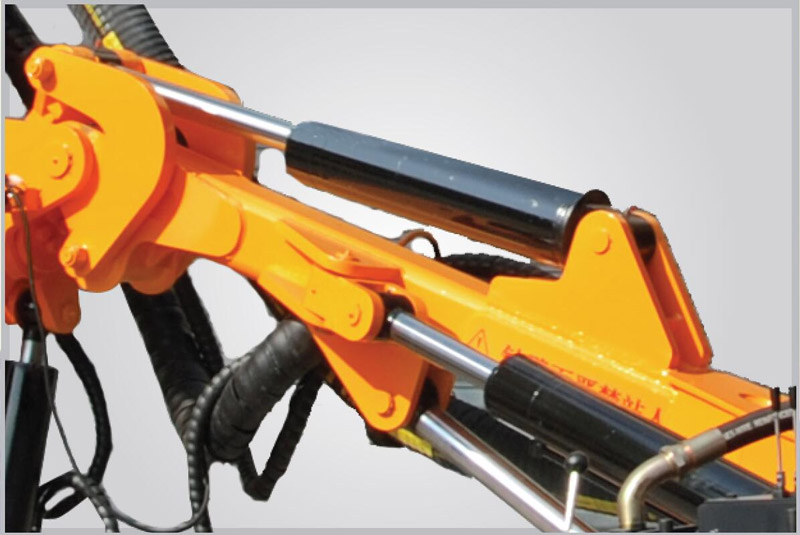

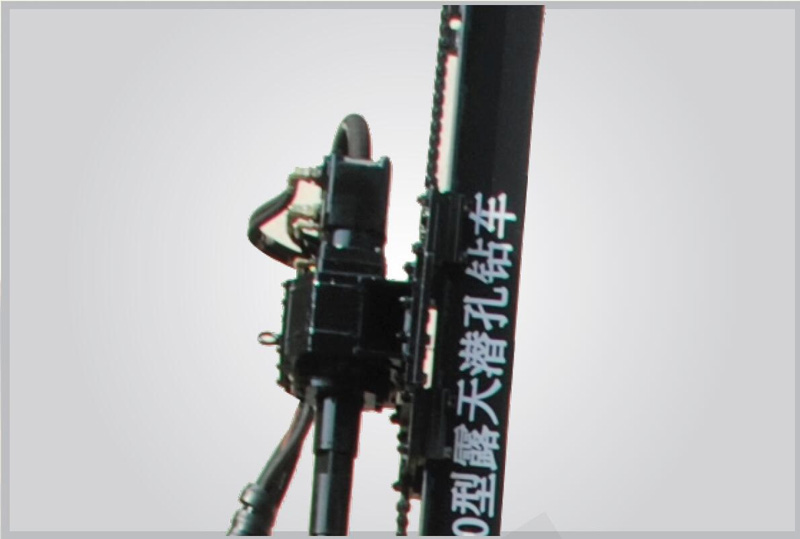

(High torque gyrator)

(Stable hydraulic system)

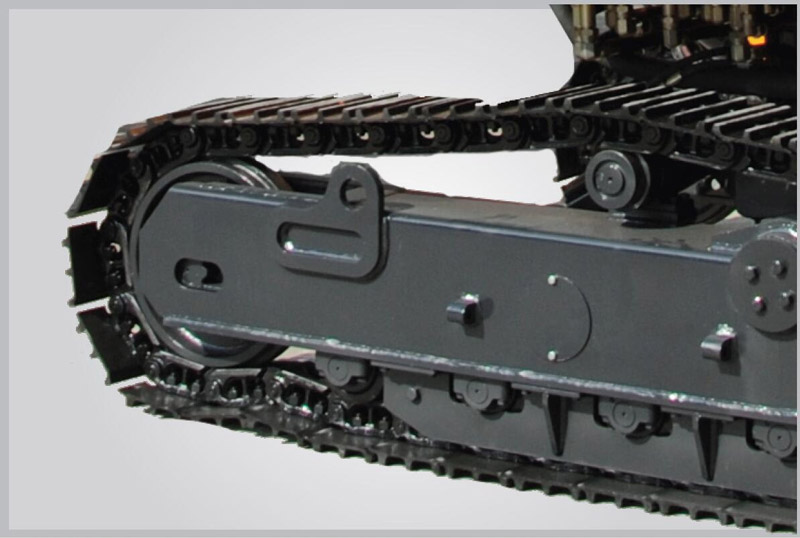

(Steel track adaptable to all terrains)

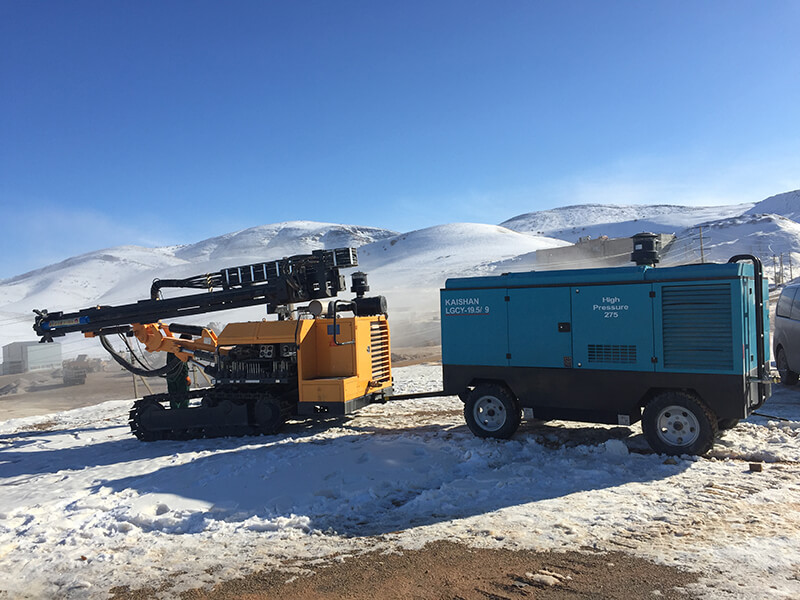

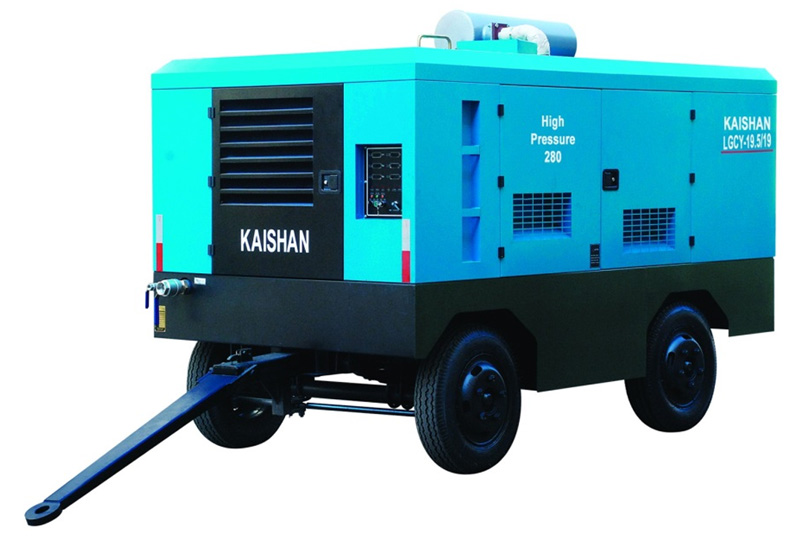

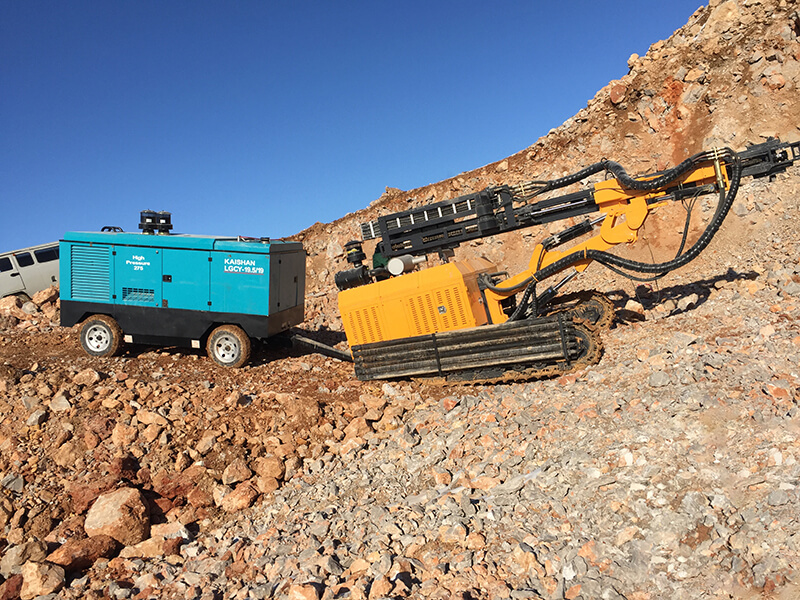

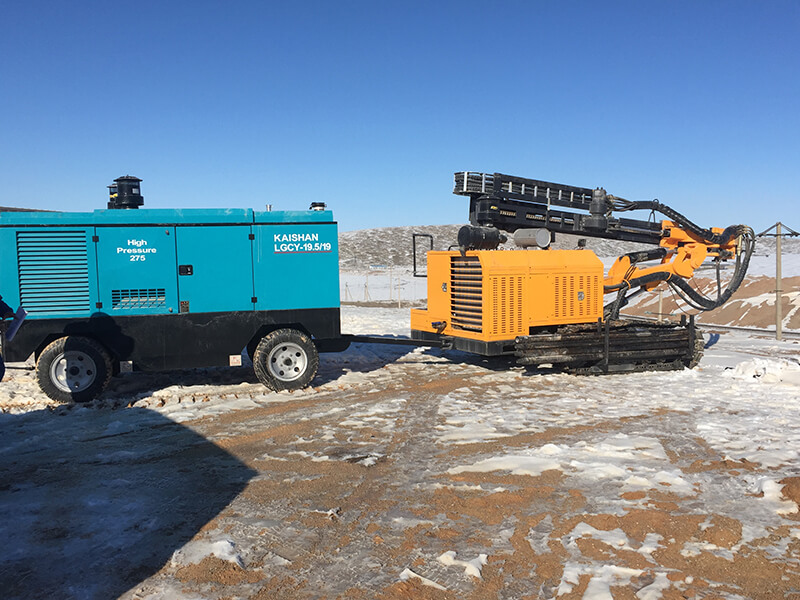

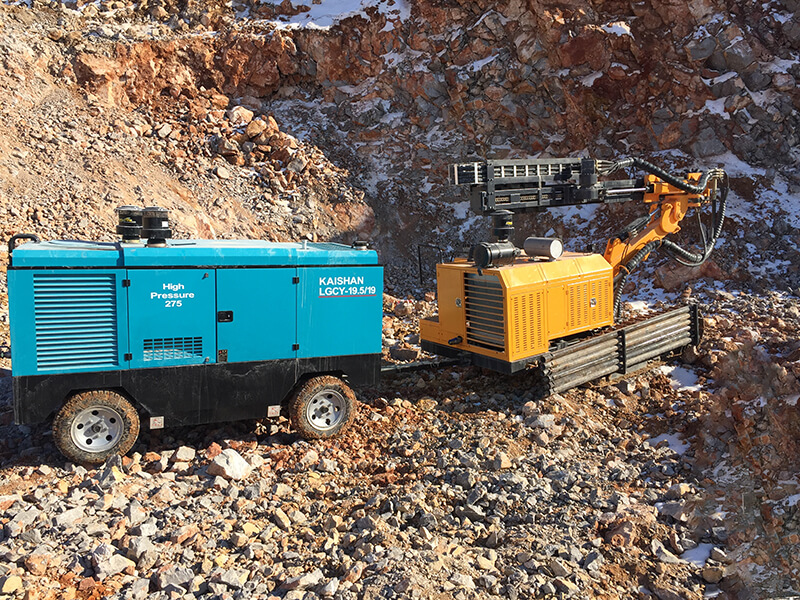

Recommended Air Compressors Kaishan LGCY-18/17 Kaishan LGCY-19.5/19

Technical Parameters

YC4DK80-T302(58KW/2200r/min) KG510 KG510H
Weight of complete machine 6500KG 7000KG
Outer dimensions 6800×2200×2850mm 6800×2450×2850mm
Drilling Hardness f=6-20
Drilling diameter Φ105-152mm
Depth of economical drilling 25m
Rotary speed 0-100rpm
Rotary torque(Max) 3500N·m(Max)
Lifting force 40KN
Method of Feed Oil cylinder-Roller chain
Feed strock 3000mm
Travelling speed 0-3.5km/h
Climbing capacity ≤30°
Ground clearance 440mm
Tilt angle of boom Down: 135°, up: 50°, total: 185°
Swing angle of boom Left: 50°, right: 50°, total: 100°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Swing angle of drill boom Left: 45°, right: 45°, total: 90°
Leveling angle of track ±10°
Compensation length of beam 900mm
Supporting power Yuchai YC4DK80-T302(58KW/2200r/min)
DTH hammer K40
Drilling rod Φ76×3m or Φ89×3m
Air consumption 13-22m3/min
Maximum height of horizontal hole 3700mm
Minimum height of horizontal hole 350mm
