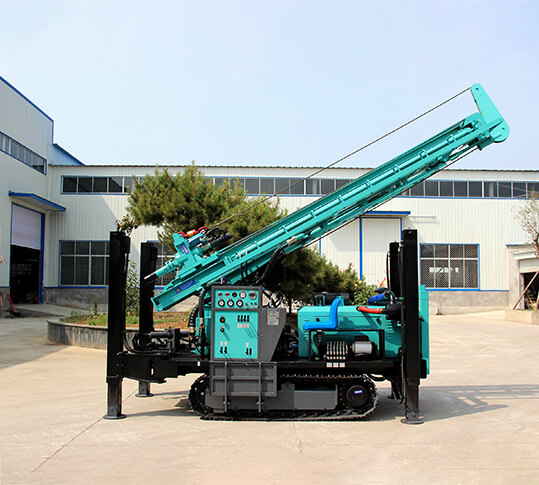

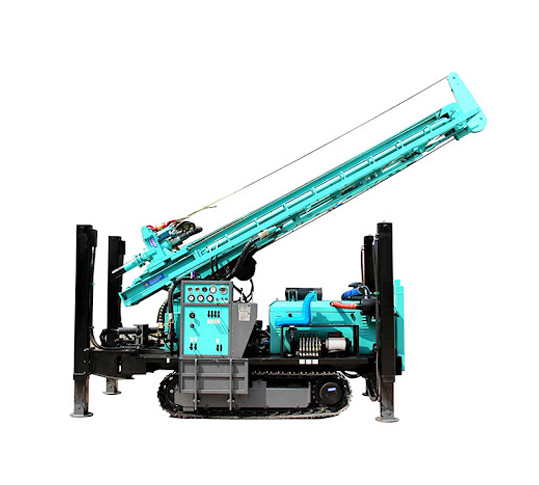

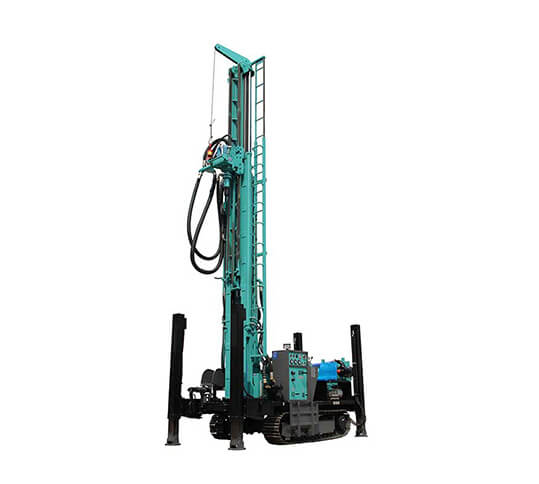

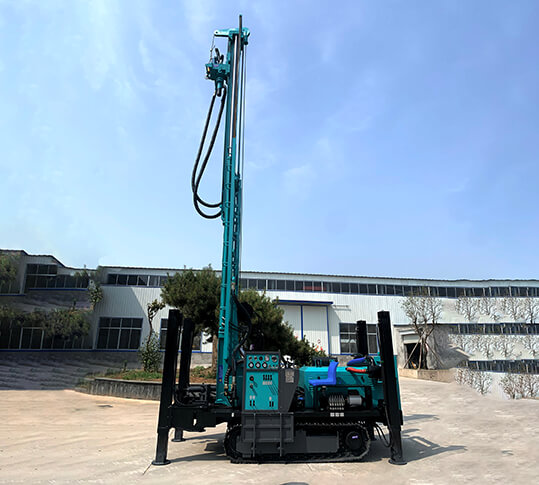

KW280 Water Well Drilling Rig

Overview:

High Quality, Low Price.
Easy Maintenance, Long Service Life,
Single propulsion stroke reaches 6.6 meters
Four legs lifting height reach to 1.5 meters
The Drilling Depth can reach to 280 meters

Product Applications Product Features Technical Parameters Related Products

Applications

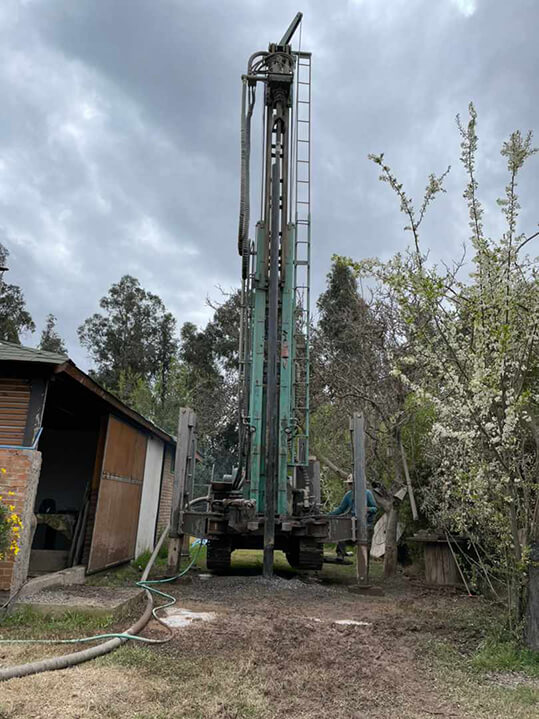

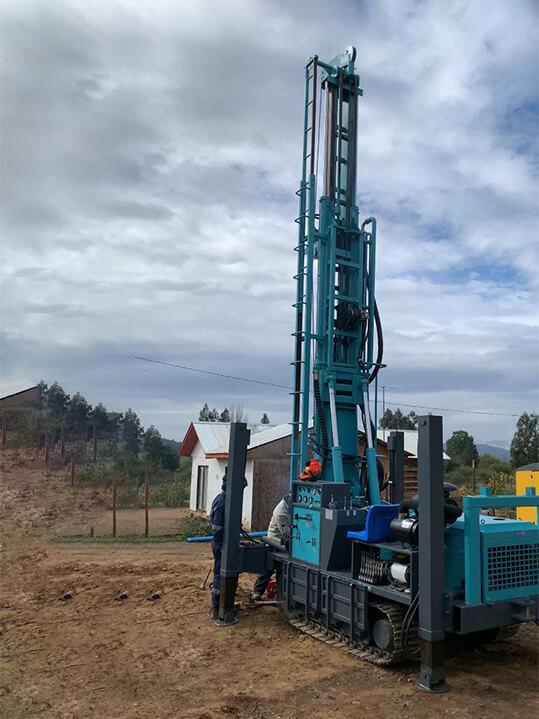

KW280 Water well drill rig is our hot sale products and have a very good reputation in our customers, in real drilling test, we drill a 203mm diameter , the depth reached to 250 meters, we believe the final depth can reach to 280 meters.



The Main Technical Advantages of KW280 as follow:

The drilling depth for one time can reach 6.6 meters, which save the time to load the drill pipes and also save the human resources; Adopting double cylinder to lifting, lifting force can reach 17 tons.

The four strong legs can lift 1.5meters, and the real ground clearance can reach 1.45 meters, which easy to stable the machine and convenient for the loading during the transportation.

More Features:

  • Equipped with 75KW Yuchai brand turbocharged engine, strong power.
  • Patented design composite boom, double cylinder lift, long stroke, large tonnage.
  • The main boom of each rig is equipped with a stopper to protect the cylinder.
  • Drilling machine chassis: professional excavator chassis ,durable,heavy bearing capacity,wide chain plate, less damage to hard road.
  • Parallel gearbox design, separate oil pump, sufficient power supply, reasonable distribution, unique design of hydraulic system, simple maintenance and low cost.
  • The travel motor is equipped with reducer, durable and long service life.
  • Fast distribution valve: the speed of three gears up to 130 rpm, basically achieve the dual-use function of water and air.
  • Each hydraulic hose is covered with soft management set to make the hose last longer.
  • The rig power is driven by the diesel engine, and the rig's walking, turning, propulsion, lifting, outriggers, and unloading rods are all controlled by hydraulic pressure.
  • The rig's walking is a crawler-type self-structure, which is easy to move. Its rubber crawler-type chassis makes it easy to walk in the city and the courtyard, and it is not easy to damage the ground.
  • High and Strong hydraulic legs allow quick and stable adjustment of the rig's body level for easy loading and unloading and shifting positions.
  • Dedicated wellhead setting provide a the certain center for drilling to ensure the vertical opening and positioning accuracy.
  • Mechanical positioning of the carriage and frame improves the stability of the carriage.
  • The pneumatic system has a custom oil injector that lubricates the impactor, effectively increasing the life of the impactor.

Technical Parameter

Model  KW280
Drilling depth  280m
Dia.hole φ140-305mm
Advance Length one time  6.6m
Working pressure  1.7-3.0MPa
Air consumption  17-30m³/min
Length of rod  1.5m,2m,3m,6m
Dia. Of rod  φ76, φ89,φ102,φ114
Lifting power  17T
Rotation torque  3700-5000N.m
Rotation Speed  45-130r/min
Diesel Engine  Yuchai
Engine Power 75Kw/2200rpm
Travelling speed  0-2.5 Km/h
Climb capacity  30°
Weight  7500kgs
Dimension 5900x1750x2450mm
Application  Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way  Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer  4",5",6",8" Drill hammer
