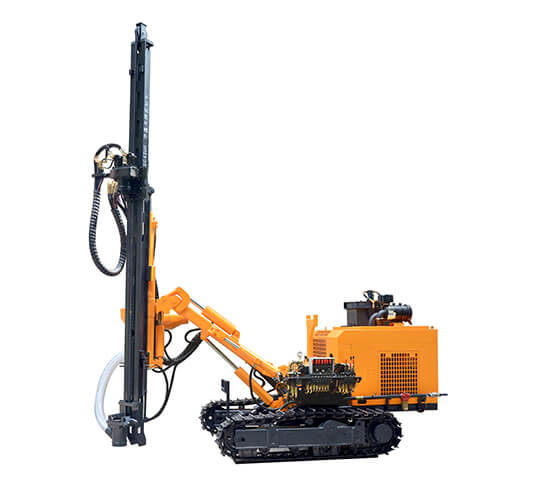

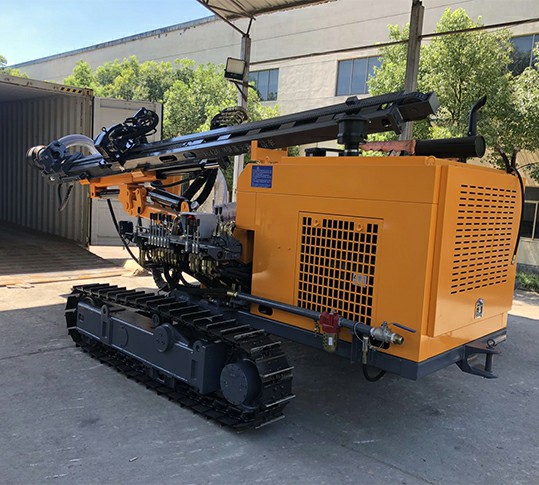

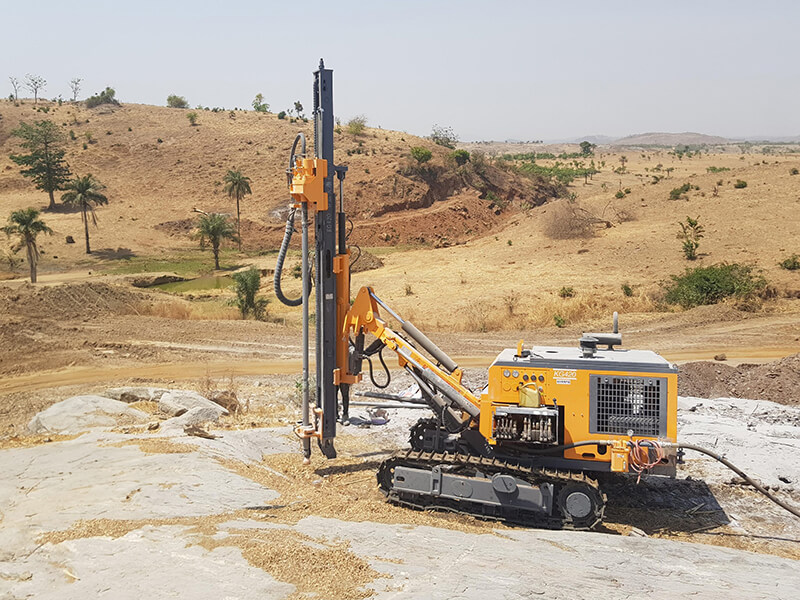

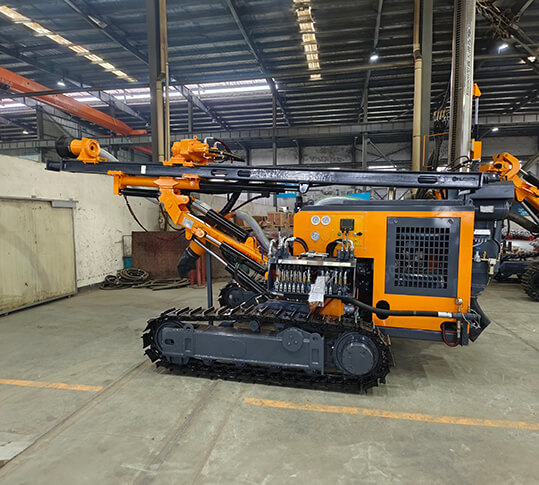

KG420/KG420H Down the hole Drill Rig for Open Use

Overview:

The KG420H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Product Applications Product Features Technical Parameters Related Products

Applications

The KG420/KG420H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China III), the drill rig meets national standards for emissions and environment.The folding frame track and four-wheel drive are adopted; Add track leveling cylinders and the plunger piston tramming motor improves the working pressure and increase the rotary torque and revolving speed; and the lifting oil cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

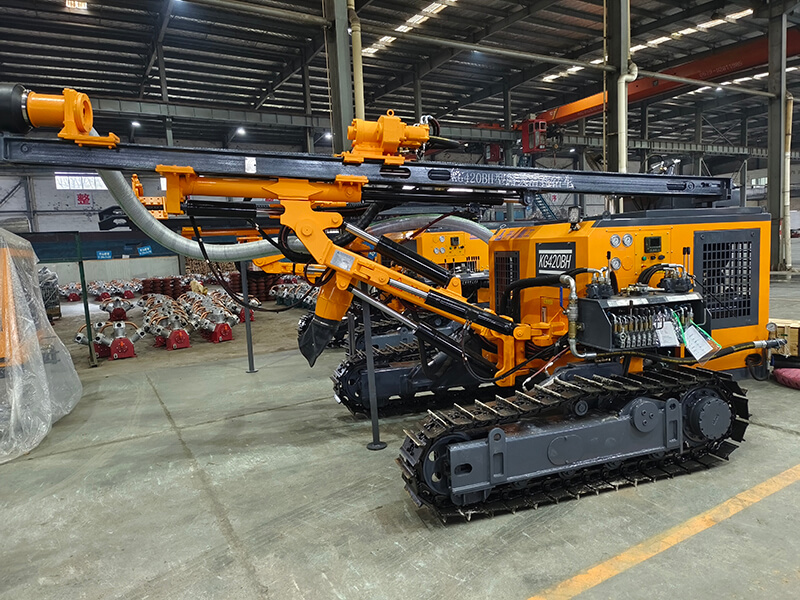

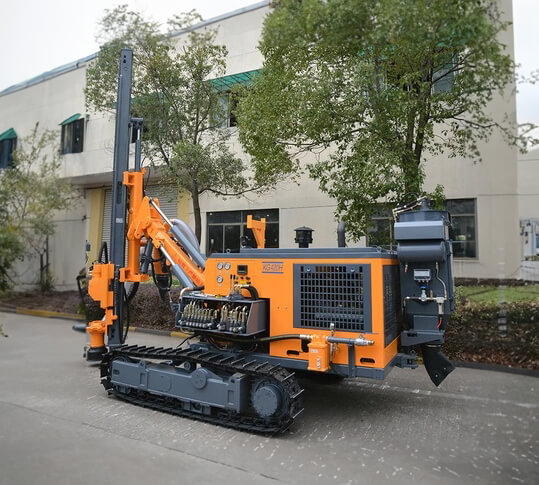

The KG420H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters

Drilling diameter :Φ90-115mm

Depth of economical drilling :25m

Method of Feed:Oil cylinder-leaf chain

Feed stroke: 3980mm

Supporting power:Yuchai YCD4R23T8-80 (59KW/2400r/min)

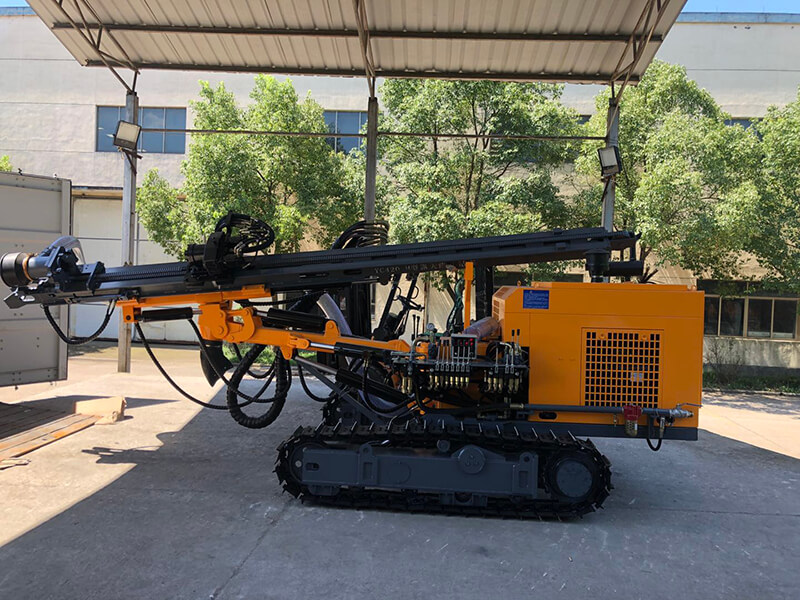

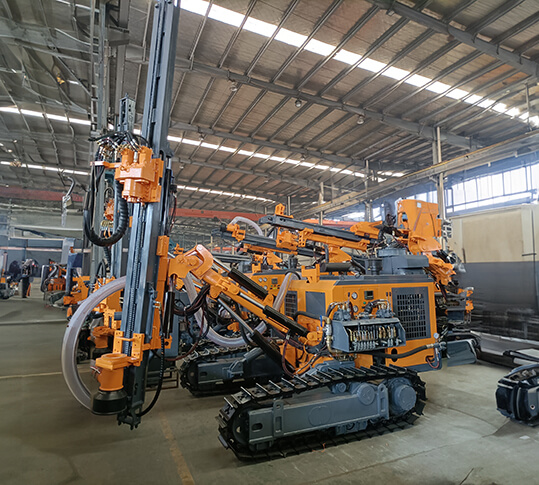

Detail features

(Easy Used Control Panel)

(High torque gyrator)

(Stable hydraulic system)

(Steel track adaptable to all terrains)

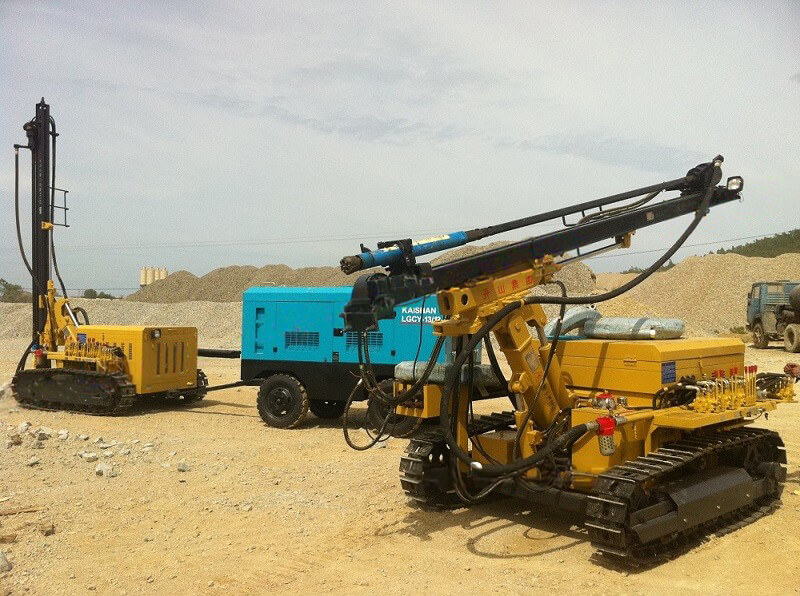

Recommended Air Compressors

Diesel engine portable screw air compressor:

Kaishan LGCY-13/13

Kaishan LGCY-15/13

Kaishan LGCY-13/17

Kaishan LGCY-18/17

Technical Parameters

Model of drill rig KG420 KG420H
Weight of complete machine 5200KG 5400KG
Outer dimensions 6000×2150×2500mm 6000×2250×2500mm
Drilling hardness f=6-20
Drilling diameter Φ90-115mm
Depth of economical drilling 25m
Rotary speed 0-120rpm
Rotary torque 1800N·m
Lifting force 40KN
Method of Feed Oil cylinder-leaf chain
Feed stroke 3980mm
Travelling speed 0-2.5km/h
Climbing capacity ≤30°
Ground clearance 500mm
Tilt angle of Beam Down: 135°, up: 50°, total: 185°
Swing angle of boom Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Swing angle of drill boom Left: 44°, right: 45°, total: 89°
Leveling angle of track ±10°
Compensation length of beam 900mm
Supporting power Yuchai YCD4R23T8-80 (59KW/2400r/min)
DTH hammer M3
Drilling rod Φ64×3m
Air consumption 10-17m3/min
Maximum height of horizontal hole 2750mm
Minimum height of horizontal hole 750mm
Recommended Air Compressors
Diesel engine portable screw air compressor: Kaishan LGCY-13/13
Kaishan LGCY-15/13
Kaishan LGCY-13/17
Kaishan LGCY-18/17
Note: Air compressor selection subject to hole dimameter and air hose length
