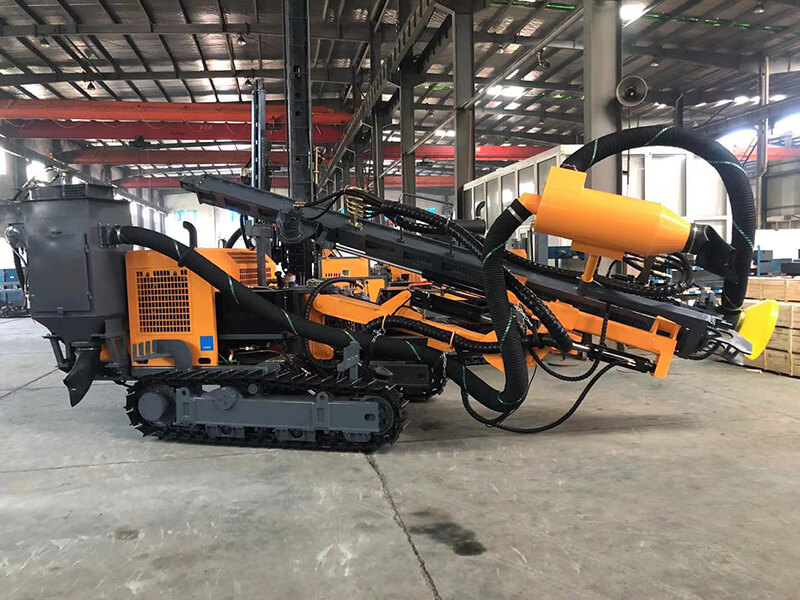

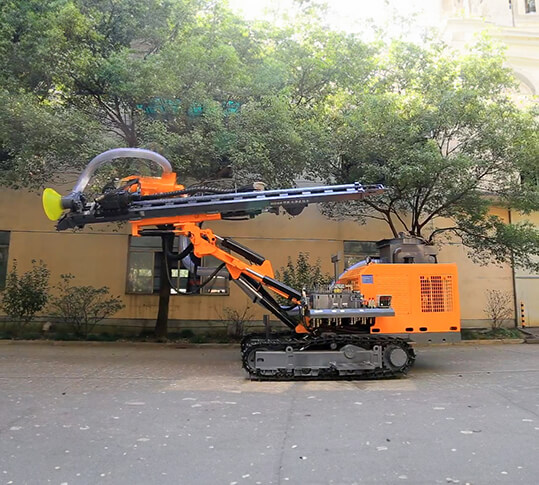

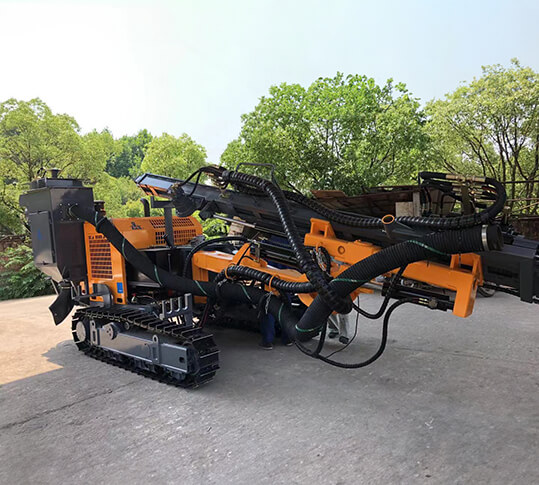

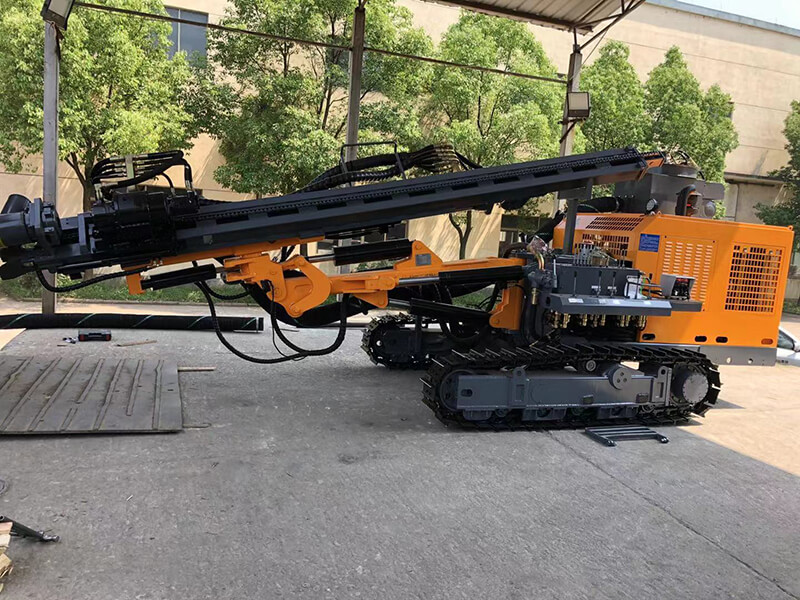

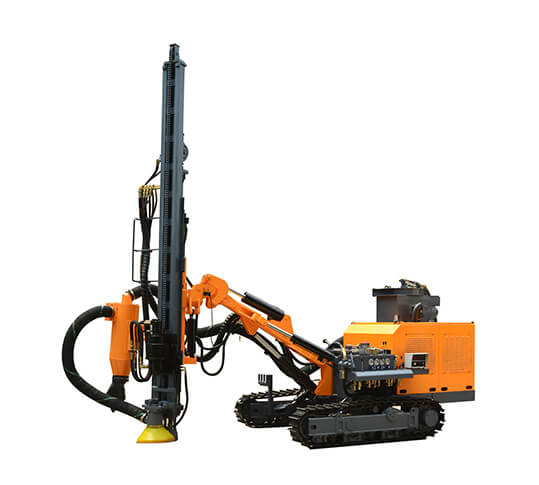

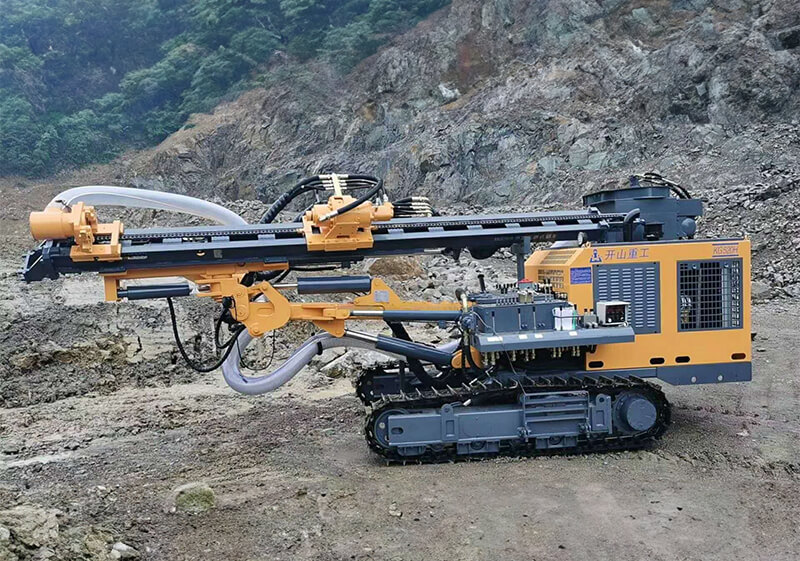

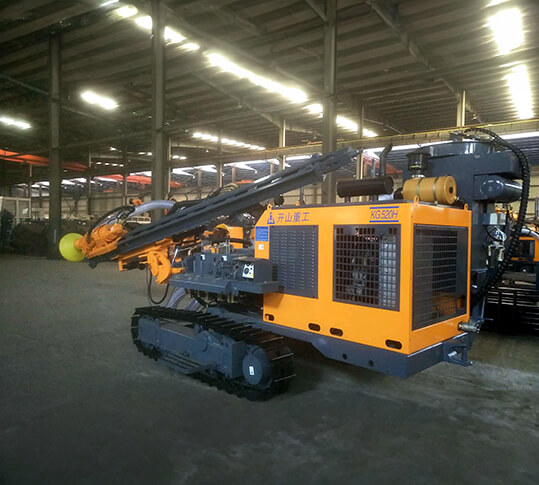

KG520/KG520H Down the hole Drill Rig for Open Use

Overview:

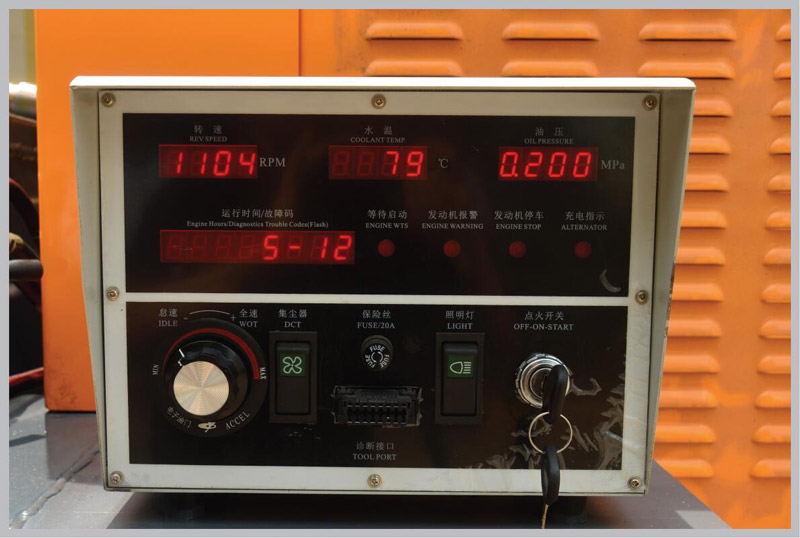

The KG520/KG520H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China III), the drill rig meets national standards for emissions and environment.

Product Applications Product Features Technical Parameters Related Products

Applications

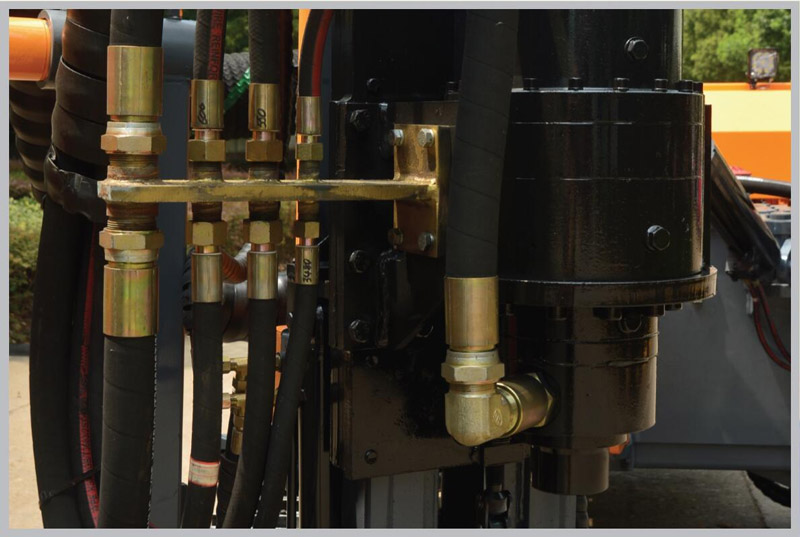

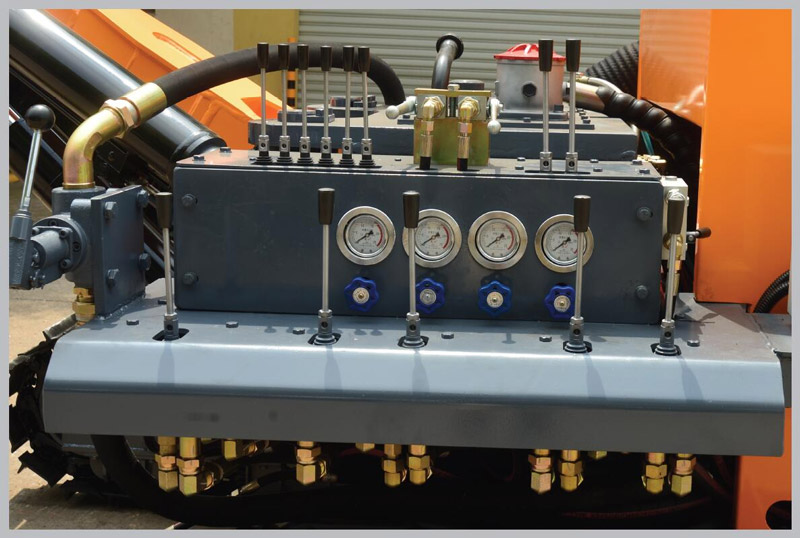

The KG520/KG520H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China III), the drill rig meets national standards for emissions and environment. The folding frame track and four-wheel drive are adopted; and track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The rotary torque and revolving speed are raised; the propulsion motor and chain are used to raise the lifting force and reliability. The dust collector is enlarged to produce a better effect on dust collection. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

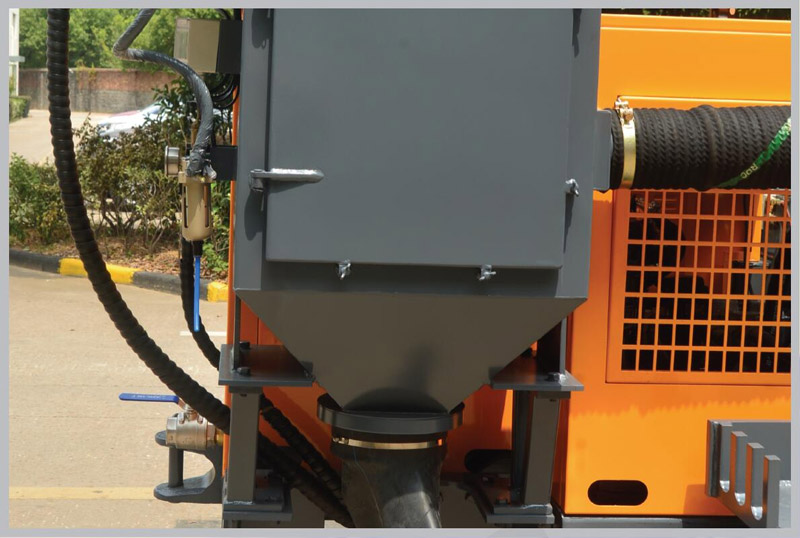

The KG520H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters

Drilling diameter :Φ105-152mm
Depth of economical drilling :25m
Method of Feed:Motor-roller chain
Feed stroke: 4150mm
Supporting power:Yuchai 4DKC4G3-100(70KW/2200r/min)

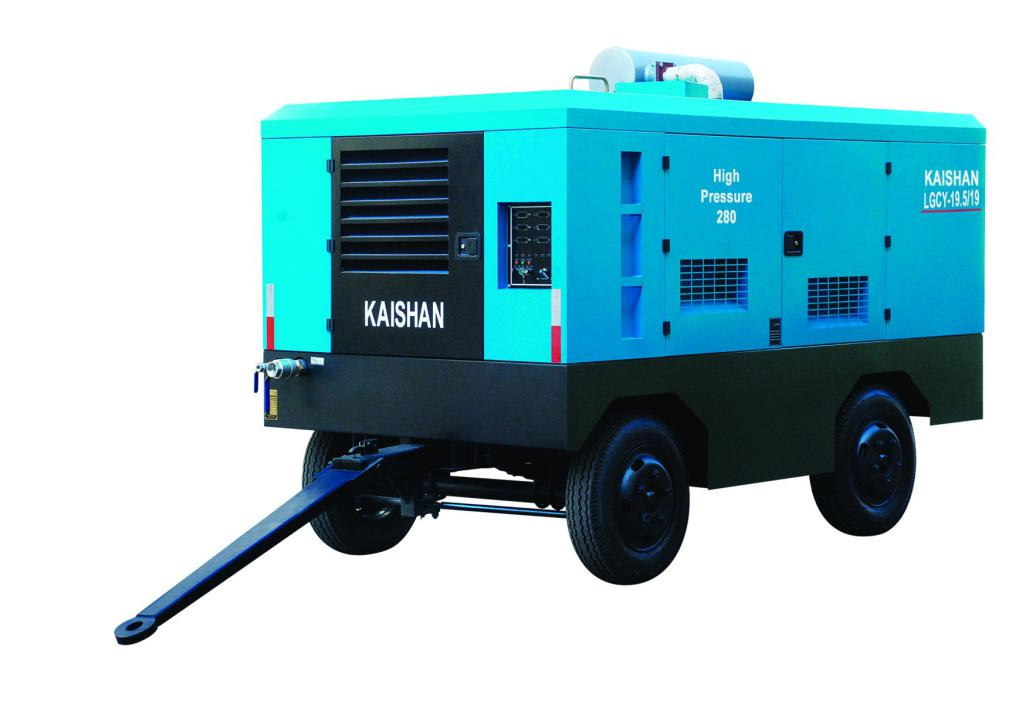

Recommended Air Compressors

Kaishan LGCY-18/17

Kaishan LGCY-19.5/19

Kaishan LGCY-22/20

Technical Parameters

Model of drill rig KG520 KG520H
Weight of complete machine 6500KG 7000KG
Outer dimensions 6800×2200×2850mm 6800×2250×2850mm
Drilling Hardness f=6-20
Drilling diameter Φ105-152mm
Depth of economical drilling 25m
Rotary speed 0-100rpm
Rotary torque (Max) 4000N·m (Max)
Lifting force 25KN
Method of Feed Motor-roller chain
Feed strock 4150mm
Travelling speed 0-4km/h
Climbing capacity ≤30°
Ground clearance 440mm
Tilt angle of boom Down: 135°, up: 50°, total: 185°
Swing angle of boom Left: 50°, right: 50°, total: 100°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Swing angle of drill boom Left: 45°, right: 45°, total: 90°
Leveling angle of track ±10°
Compensation length of beam 900mm
Supporting power Yuchai 4DKC4G3-100(70KW/2200r/min)
DTH hammer K40
Drilling rod Φ76×3m or Φ89×3m
Air consumption 15-22m3/min
Maximum height of horizontal hole 3500mm
Minimum height of horizontal hole 350mm
