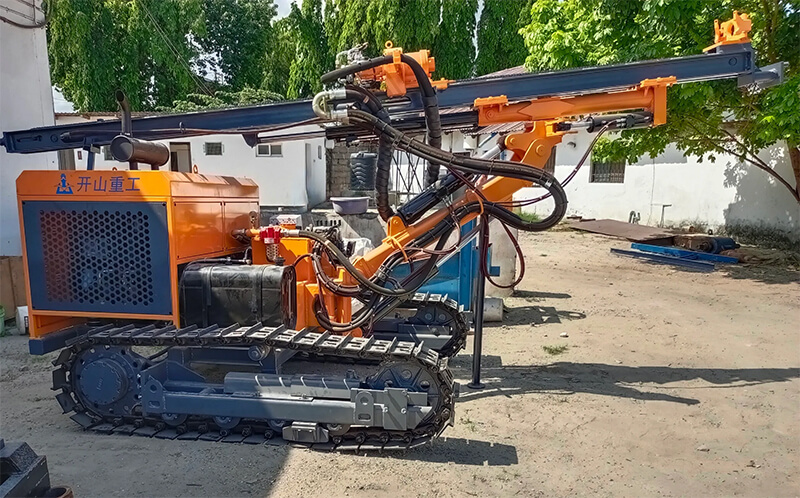

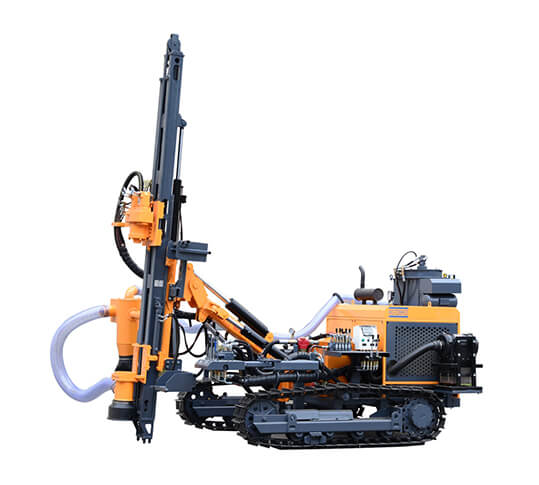

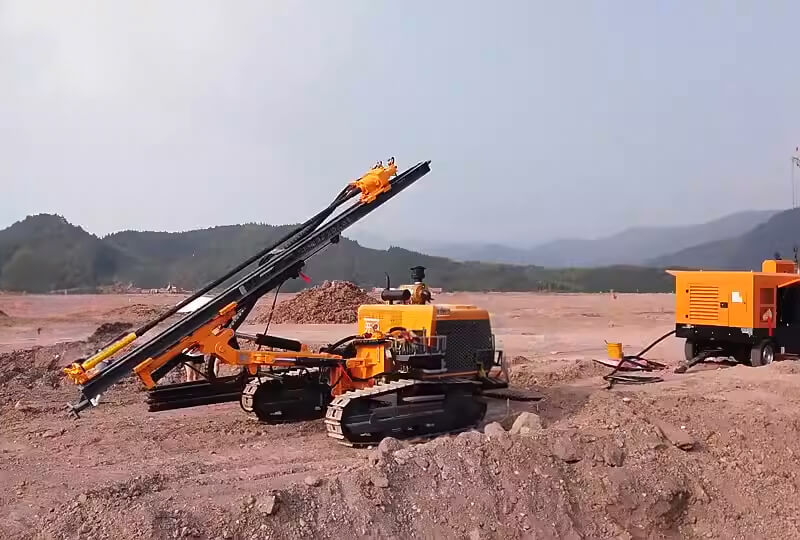

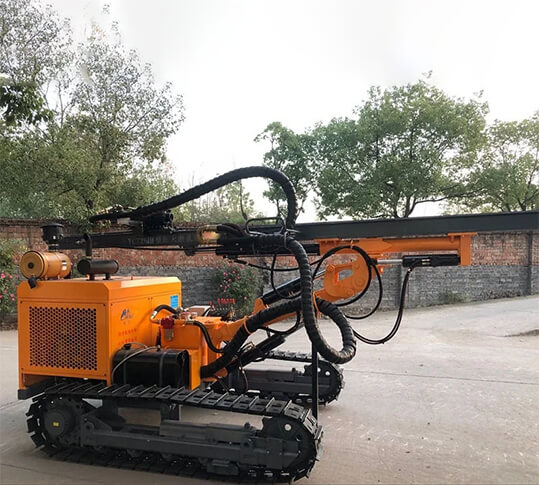

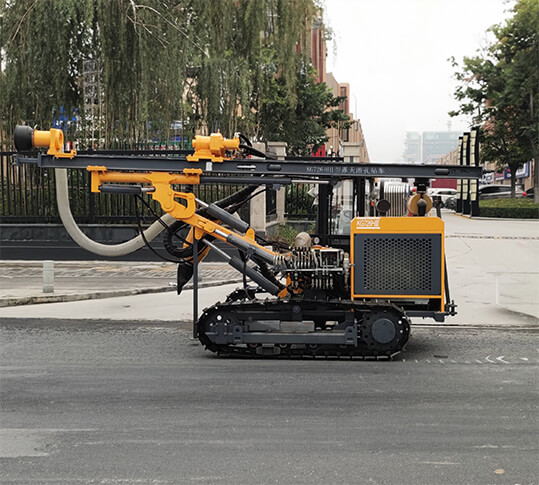

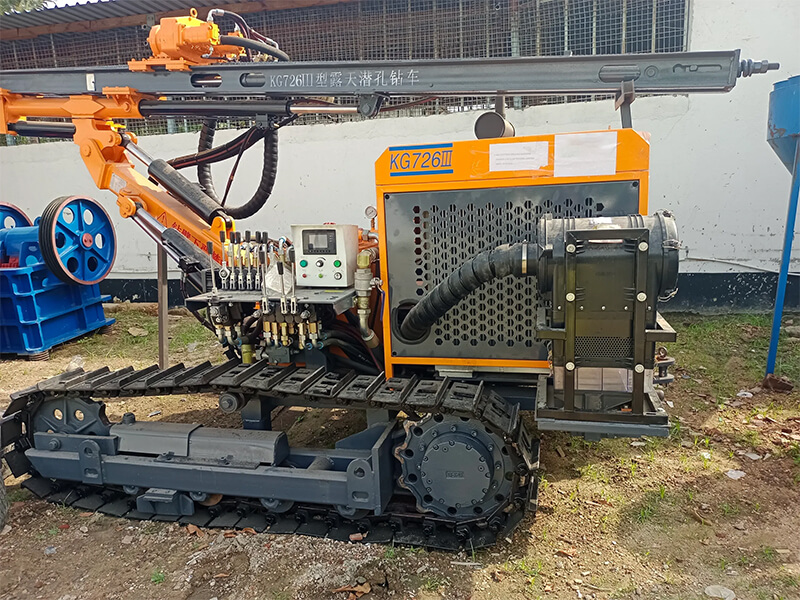

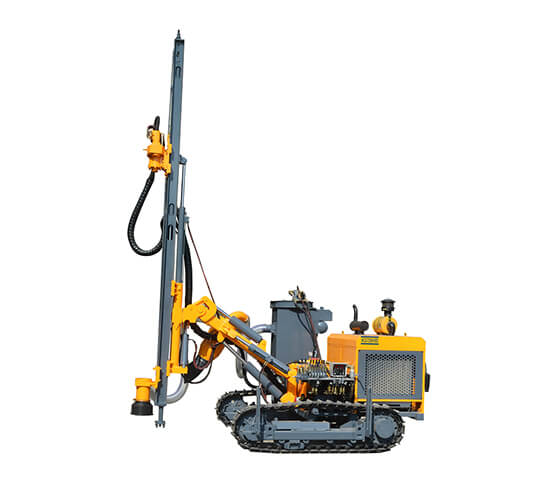

KG726/KG726HIII DTH Drill Rig for Open Use

Technical Specifications: KG726III/KG726HIII

Supporting Power: 59 kW /2400r/min

Drilling Diameter: 90-115 mm

Drilling Depth: 25 m

Product Applications Product Features Technical Parameters Related Products

Applications

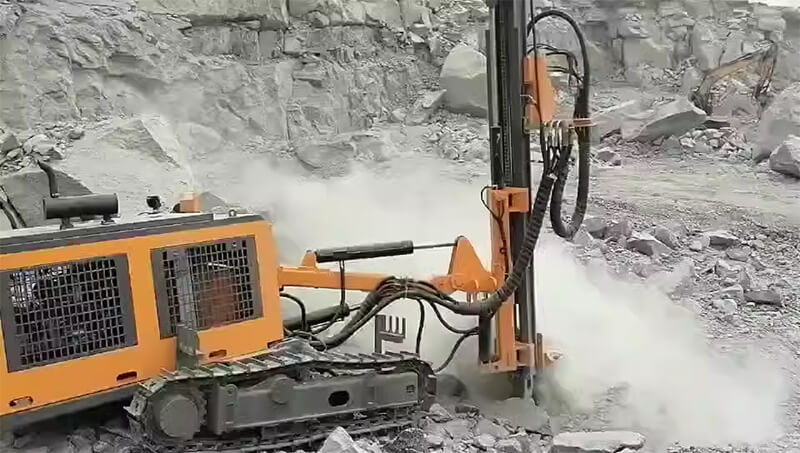

The KG726III/KG726HIII dth drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Features


The KG726III/KG726HIII DTH drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine (China lll), the drill rig meets national standards for emissions and environment. The ramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved, thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.

Recommended Air Compressors

Diesel engine portable screw air compressor:

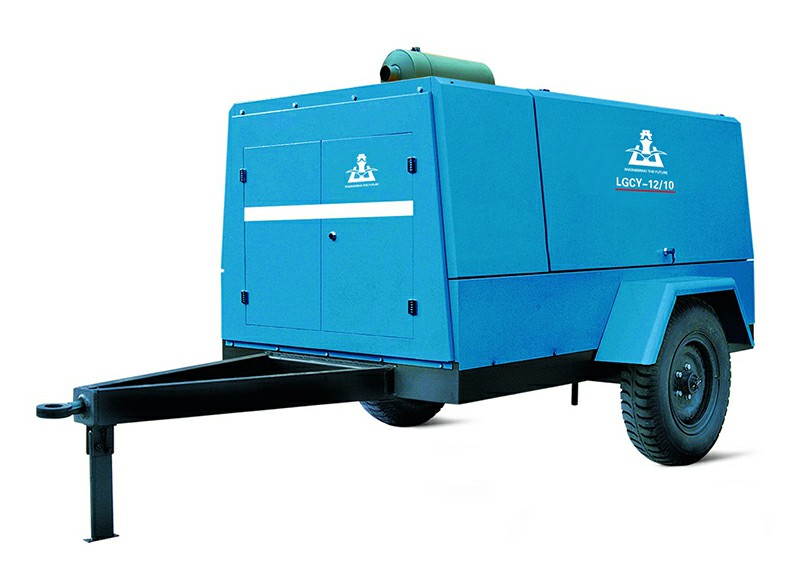

Kaishan LGCY-12/10

Kaishan KSCY-580/13

Technical Parameters

Model of drill rig KG726III KG726HIII
Weight of complete machine 4200KG 4400KG
Outer dimensions 5600×2400×2300mm 5600×2600×2300mm
Drilling Hardness f=6-20
Drilling diameter Φ90-115mm
Depth of economical drilling 25m
Rotary speed 0-120rpm
Rotary torque(Max) 2000N·m(Max)
Lifting force 18KN
Method of Feed Oil cylinder-leaf chain
Feed strock 3780mm
Travelling speed 0-2.5km/h
Climbing capacity ≤30°
Ground clearance 350mm
Tilt angle of boom Down: 135°, up: 50°, total: 185°
Swing angle of boom Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Swing angle of drill boom Left: 44°, right: 45°, total: 89°
Compensation length of beam 900mm
Supporting power Yuchai YCD4R23T8-80(59KW/2400r/min)
DTH hammer M30
Drilling rod Φ64×3m
Air consumption 9-17m³/min
Maximum height of horizontal hole 2750mm
Minimum height of horizontal hole 350mm
Recommended Air Compressors
Diesel engine portable screw air compressor: Kaishan LGCY-12/10
Kaishan KSCY-580/13
Note: Air compressor selection subject to hole dimameter and air hose length
