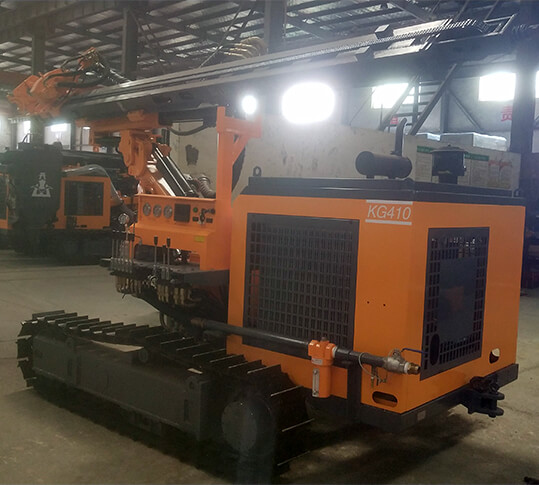

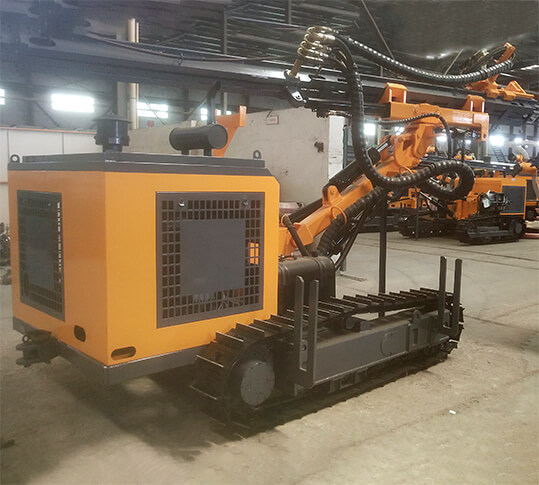

KG410/KG410H Down the hole Drill Rig for Open Use

Overview:

The KG410/KG410H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China III), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity.

Product Applications Product Features Technical Parameters Related Products

Applications

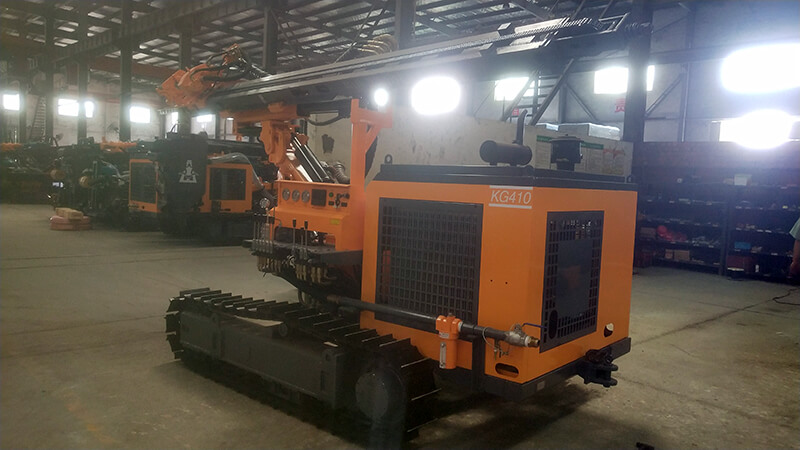

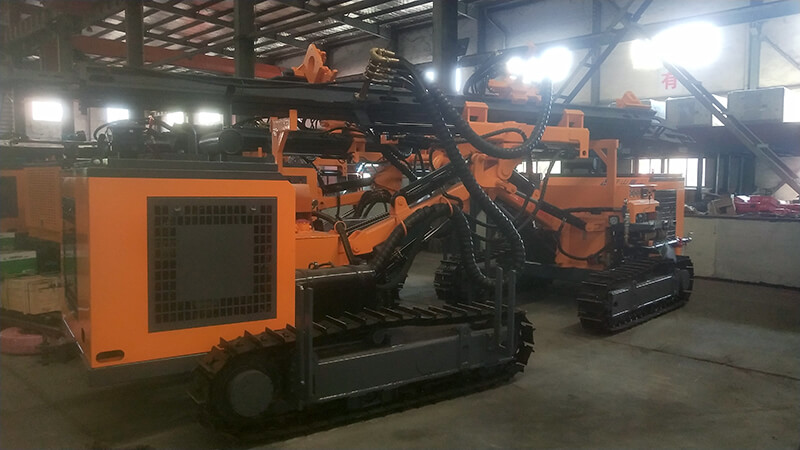

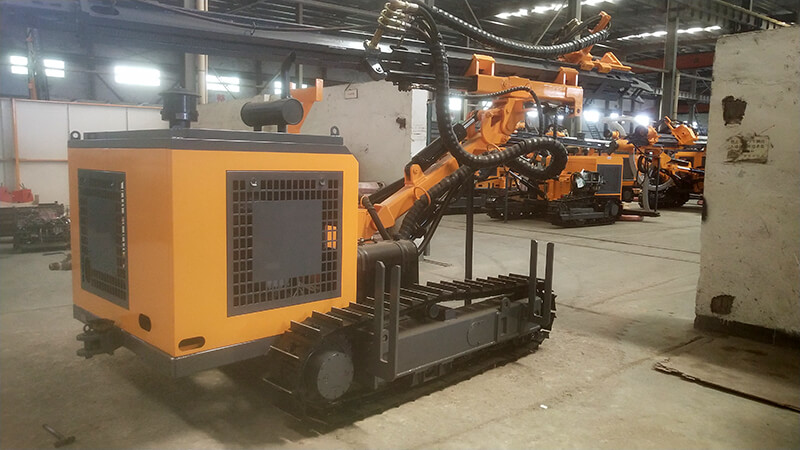

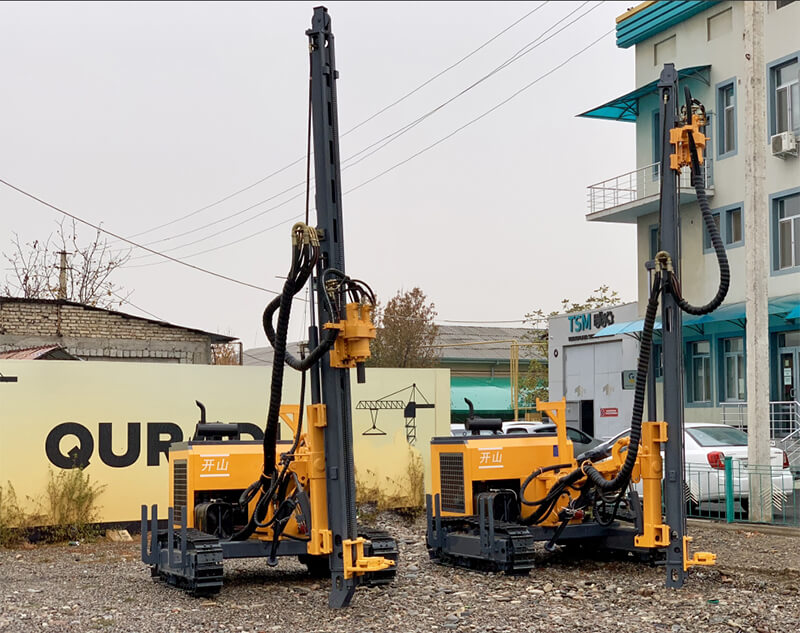

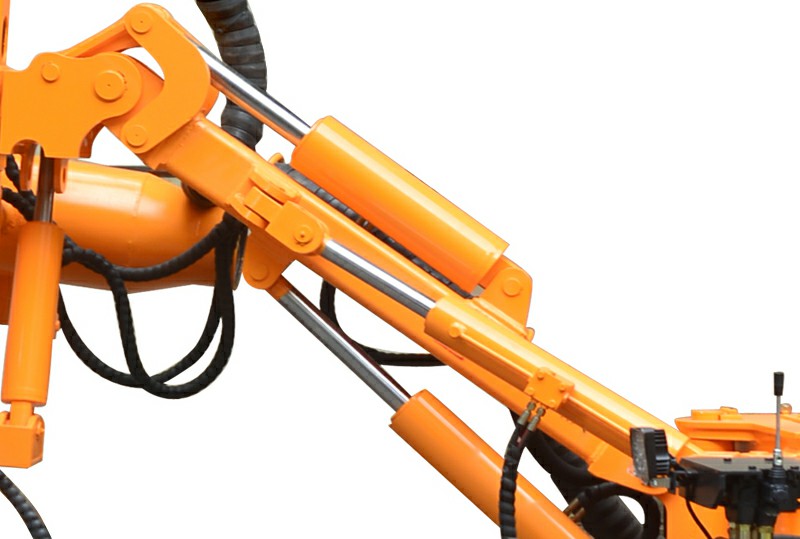

The KG410/KG410H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China III), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position. The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

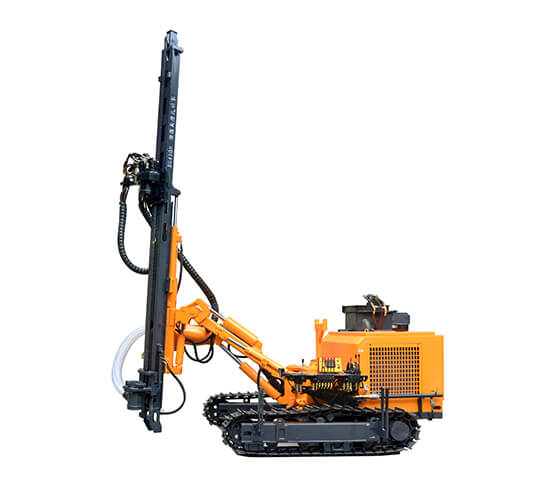

The KG410H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters

Drilling diameter :Φ90-115mm

Depth of economical drilling :25m

Method of Feed:Oil cylinder-leaf chain

Feed stroke: 3980mm

Supporting power:Yuchai YCD4R23T8-80(59KW/2400r/min)

Detail features

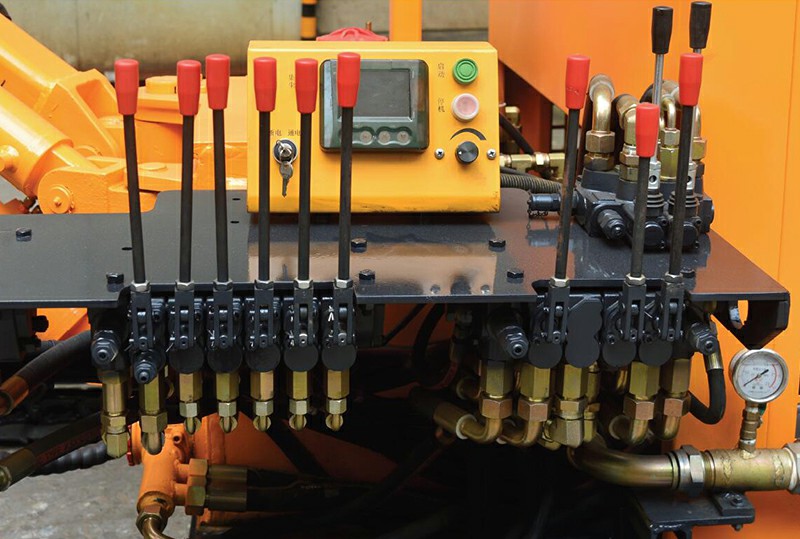

(Easy Used Control Panel)

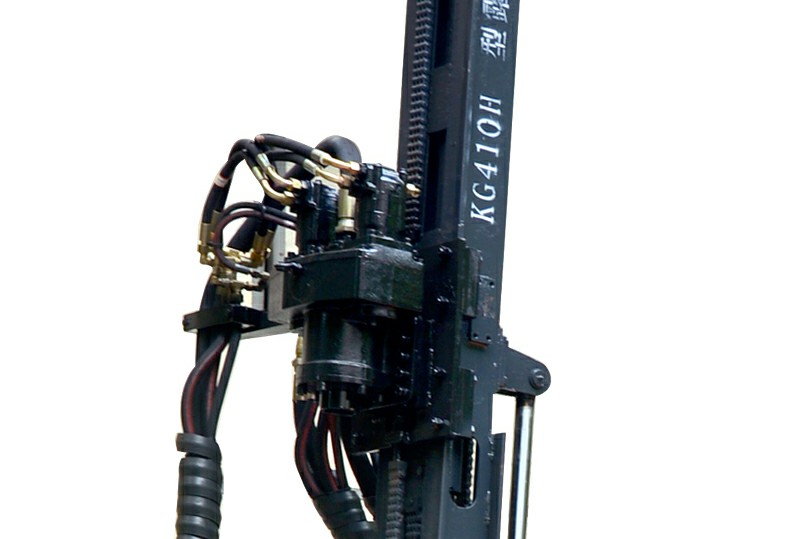

(High torque gyrator)

(Stable hydraulic system)

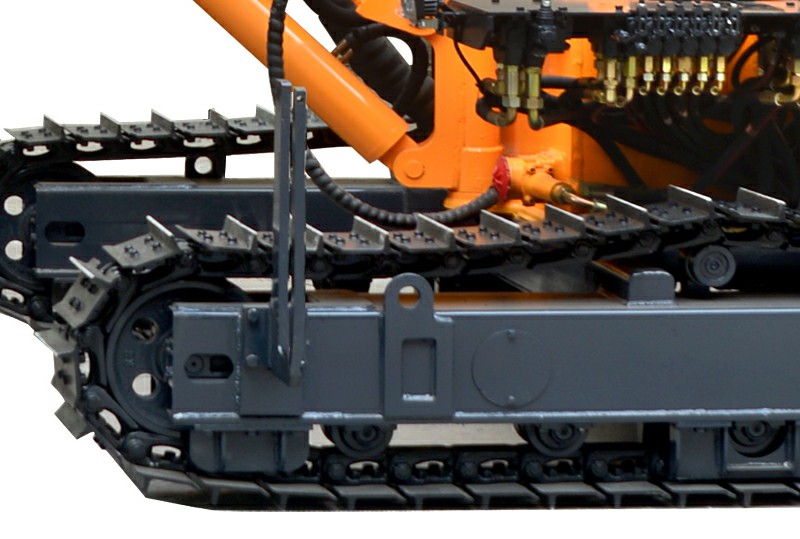

(Steel track adaptable to all terrains)

Recommended Air Compressors

Diesel engine portable screw air compressor:

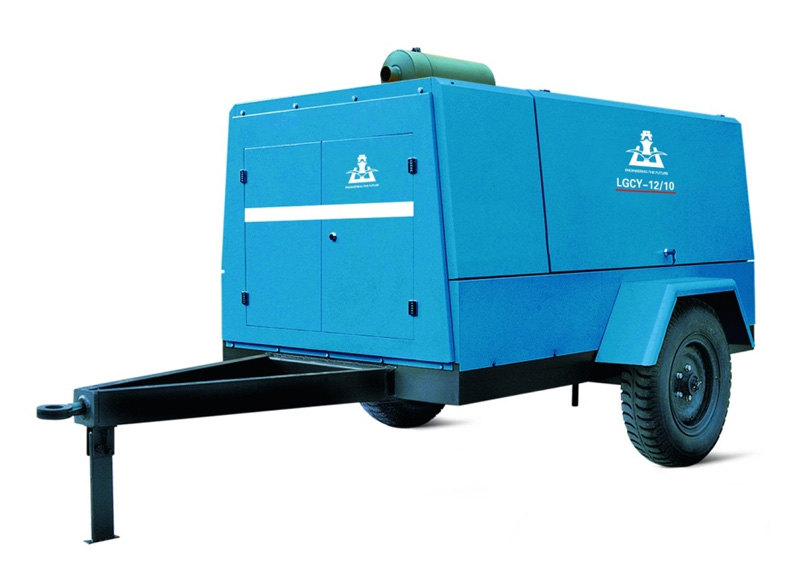

Kaishan LGCY-12/10

Kaishan LGCY-13/13

Technical Parameters

Model of drill rig KG410 KG410H
Weight of complete machine 4500KG 4700KG
Outer dimensions  6000×2100×2000mm 6000×2350×2000mm
Drilling hardness  f=6-20
Drilling diameter   Φ90-115mm
Depth of economical drilling   25m
Rotary speed   0-120rpm
Rotary torque  1800N·m
Lifting force 40KN
Method of Feed Oil cylinder-leaf chain
Feed stroke 3980mm
Travelling speed 0-2.5km/h
Climbing capacity ≤30°
Ground clearance 280mm
Tilt angle of beam  Down:135°, up: 50°, total: 185°
Swing angle of beam Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Swing angle of boom Left: 44°, right: 45°, total: 89°
Compensation length of beam 900mm
Supporting power  Yuchai power YCD4R23T8-80 (59KW/2400r/min)
Drilling rod Φ64×3m
DTH hammer M3
Air consumption 10-17m3/min
Maximum height of horizontal hole  2950mm
Minimum height of horizontal hole  750mm



Recommended Air Compressors
Diesel engine portable screw air compressor:  Kaishan LGCY-12/10
Kaishan LGCY-13/13
Note: Air compressor selection subject to hole dimameter and air hose length
