Model: PDSG900VR
Rated output (kW[HP]/rpm): 201.9 [274.5] / 2000
L×W×H (mm): 4015×1800×2385
Engine oil capacity (L):38

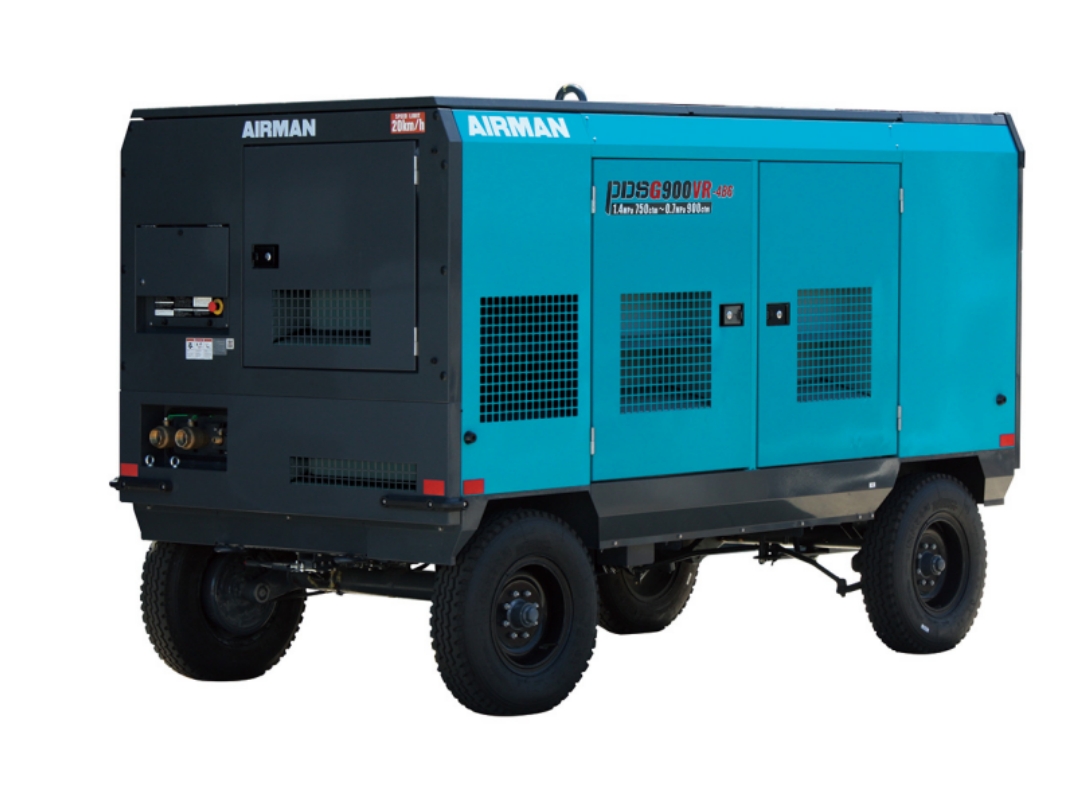

PDSG900VR Mobile Diesel Screw Air Compressor provides a reliable source of compressed air for drilling, mining, construction, and other demanding field applications, combining strong air supply capacity with flexible mobility and stable operation.
A newly developed compressor delivers improved energy efficiency while offering enhanced resistance to heat, wear, and high pressure for more reliable operation.
The upgraded engine combines lower fuel consumption with dependable durability, making it suitable for continuous operation in demanding working conditions.
An improved control system enables more precise fuel delivery and real-time engine speed adjustment, helping reduce unnecessary fuel consumption and emissions.
Automatic preheating and related functions help the compressor start smoothly and maintain stable operation even in low-temperature environments.
|
COMPRESSOR |
|
|
Type |
Rotary Twin Screw, Single‑Stage, Oil‑Injected |
|
Free air delivery (m3/min [CFM]) |
25.5 [900] - 21.2 [750] |
|
Rated operating pressure (MPa)[kgf/cm2][psi] |
0.7 [7.14] [102] - 1.4 [14.3] [203] |
|
Compressor oil capacity (L) |
87 |
|
Air outlet valve |
3/4"×1, 2"×2 |
|
ENGINE |
|
|
Brand |
ISUZU |
|
Model |
6HK1 |
|
Type |
Direct-Injection, -Charged, Intercooled |
|
Fuel injection / control method |
Common Rail + ECU |
|
Emission stage |
- |
|
Rated output (kW[HP]/rpm) |
201.9 [274.5] / 2000 |
|
Engine oil capacity (L) |
38 |
|
Fuel tank capacity (L) |
390 |
|
Coolant capacity (L) |
41.5 |
|
Battery |
6-QW-120D×2 |
|
DIMENSION & WEIGHT, etc. |
|
|
L×W×H (mm) |
4015×1800×2385 |
|
Dry (Operating) weight (kg) |
3585 (3985) |
|
Tire Size |
7.00R16LT-14PR×4 |
|
Sound power level in decibels (dB) |
101 |
|
Sound pressure level (dB[A]) |
73 |
