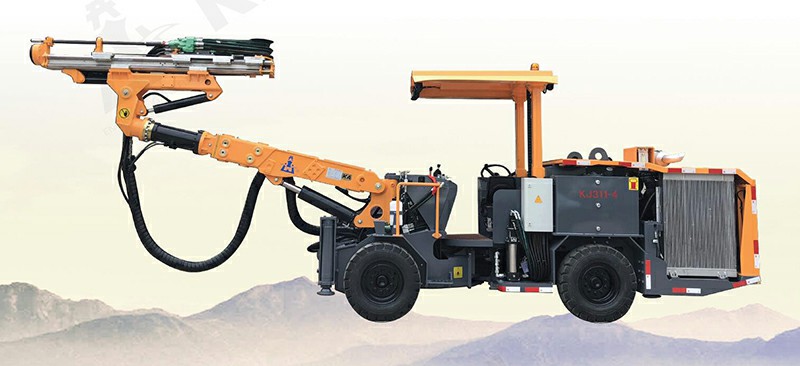

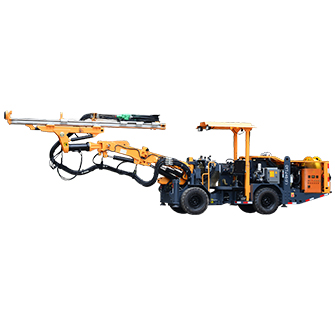

KJ311-CYTJ45(D) (Second crushing) Hydraulic Tunneling Drilling Rig

Overview:

KJ311-CYTJ45(D) (Second crushing) Hydraulic Tunneling Drilling Rig is specially designed for short time and multi-station rock drilling. The drill ring is powered by diesel engine and has air compressor on board.

Product Applications Product Features Technical Parameters Related Products

Applications

KJ311-CYTJ45(D) (Second crushing) Hydraulic Tunneling Drilling Rig is specially designed for short time and multi-station rock drilling. The drill ring is powered by diesel engine and has air compressor on board. It uses water tank for water supply and does not need extemal water, air and power supply. The drill rig can realize rapid rock drilling and rapid sites transfer, especially suitable for processing large pieces of ore in which mines that using natural block caving method.

Detail features

Technical Parameters

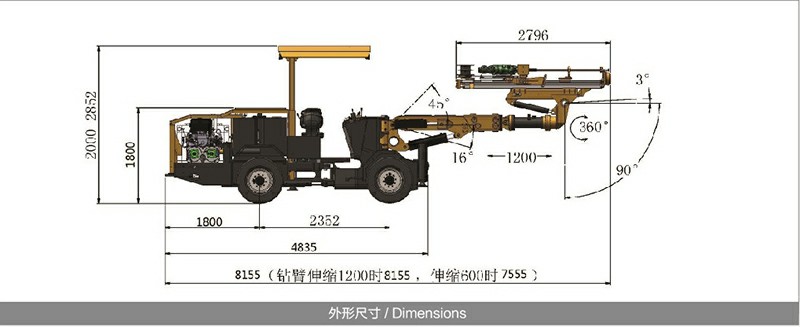

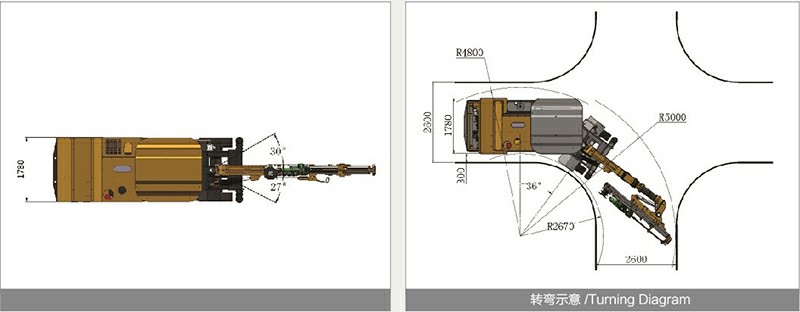

Dimensions and weight Air & water system
Length 8200mm Air compressor CP9952 Oil Consumption of lubrication 180-250g/h
Width 1780mm Capacity of air compressor 0.3m³/min
Height 2000/3000 mm Pressure 3-5bar Capacity of water pump 3m3/h
Weight Appr. 12000㎏ Device of shank lubrication Electronic pulse
lubrication pump
Tramming speed on flat ground 10km/h
Maximum climbing capacity 25%(14°) Chassis
Safety protection Diesel engine Cummins QSB3.9-C125/93KW,2200rpm Tires 11.00-20
Noise level <100dB(A) Exhaust purification Exhaust catalyst Steeringmechanism Articulated steering: ±40°
Lifting safety roof Meet the requirements
of FOPS and ROPS
Drive system Closed hydraulic system for four-wheel driving Travelling braking Two-circuit hydraulic brake
    Swing angle Swing of rear axle: ±6° Parking braking Wet multidisc brake of reducer
    Fuel tank 170L
Drilling system Drill boom
Rock drill 1×HC50/R38 Model of drill boom K25
Impact power 13kW Form of drill boom Telescopic
Impact flow 105L/min Boom extension 1200mm
Impact pressure 130bar Electric hydraulic power unit
Maximum rotary pressure 150bar Impact /Feed/ Positioning Axial variable displacement piston pump
Impact Frequency 62 Hz
Torque 325Nm Rotation Gear pump
Hole diameter Φ32-76mm Filter fineness 10μ
Beam rotation 360° Hydraulic oil tank 240L
Feed extension 850mm Hydraulic cooler Water cooler
Drilling depth 1000mm 1500mm
Drill rod R38-H35-R32-1350 R38-H35-R32-1850
