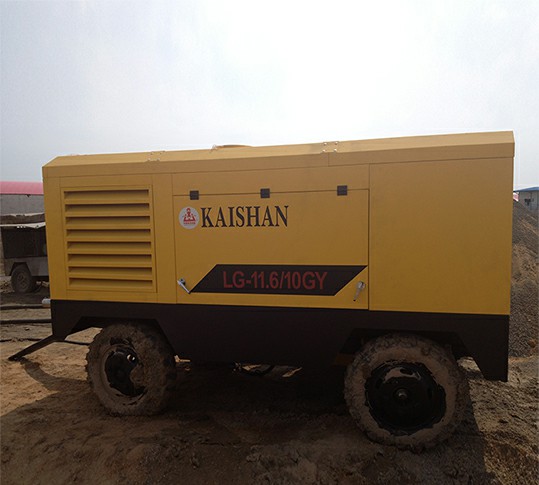

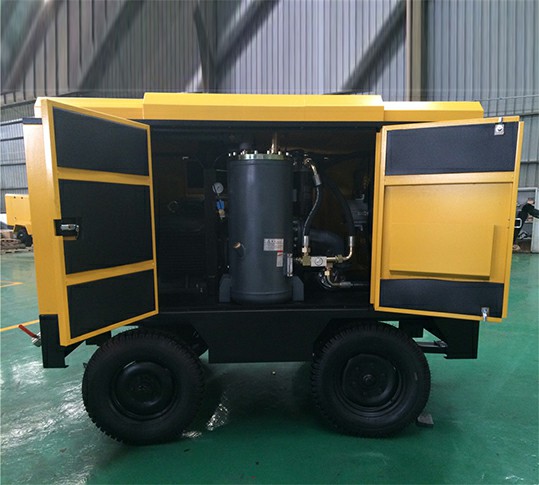

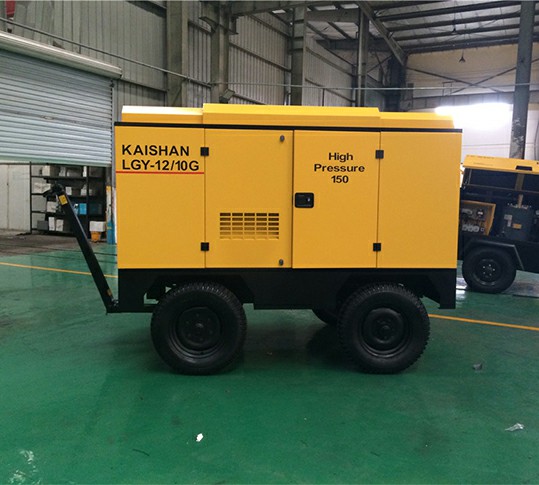

LGY Series Portable Screw Air Compressor

Overview:

LGY series portable screw air compressor is suitable for the applications in mining, water conservancy project, transport, shipbuilding, urban construction, energy project, military project, etc. As a professional supplier of screw air compressor, KAISHAN also provides custom products to satisfy customers’ different demands.

Product Applications Product Features Technical Parameters Related Products

Applications

Portable screw air compressor is widely applied in the industries, such as, mine, water conservancy, transportation, shipbuilding, urban construction, energy and war industry, etc.

The power range of Kaishan brand of power-driven portable screw air compressor is within 11KW - 250KW and the discharge range can reach up to 40m3/min at maximum. It can meet different gas usage demands of customer.

Features of LGY Series Portable Screw Air Compressor

    1. High reliability

    Kaishan patent SKK, SKY air compressor head, less compressor parts and no quick-wear parts. Therefore, it operates reliably, with long service life. The overhaul interval can reach up to 40,000-80,000 hours.

    2. Convenient for operation and maintenance

    High automatic degree can achieve unattended operation.

    3. Good power balance

    It has no unbalance inertia force, can operate steadily with high speed, and can achieve no-base operation. It is specially suitably to act as portable compressor, with little volume, light weight and little occupied area.

    4. High adaptability

    It is featured with compulsory gas input. And the volume flow is almost not affected by the discharge pressure, and high efficiency can be kept within wide range of speed.

    Technical Parameter of LGY Series Portable Screw Air Compressor

    Model Working Pressure Free Air Delivery            Power Connector Dimension Weight
    Bar Psi m³/min CFM (KW/HP) mm KG
    LG-6.2/8GY 8 116 6.2 219 37 / 50 1-G¾, 1-G1½ 3120*1445*1480 1120
    LG-7.0/8GY 8 116 7 247 45 / 60 1-G¾, 1-G1½ 3423*1445*1480 1200
    LG-10/8GY 8 116 10 371 55 / 75 1-G¾, 1-G1½ 3390*1585*1550 1200
    LG-13/8GY 8 116 13 458 75 / 100 1-G2, 1-G1¾ 2700*1700*1700 1750
    LG-11.6/10GY 10 145 11.6 410
    LG-9.3/13GY 13 190 9.3 328
    LG-16/8GY 8 116 16 583 90 / 125 1-G2, 1-G1¾ 2730*1680*1800 1910
    LG-13/10GY 10 145 13 459
    LG-11.6/13GY 13 190 11.6 410
    LG-20/8GY 8 116 20 706 110 / 150 1-G2, 1-G1¾ 3065*1835*2000 3115
    LG-16/10GY 10 145 16 565 3070
    LG-13.5/13GY 13 190 13.5 476 3030
    LG-22/8GY 8 116 22 775 132 / 180 1-G2, 1-G1¾ 3065*1835*2000 3150
    LG-20/10GY 10 145 20 706 3115
    LG-16/13GY 13 190 16 565 3070
    LG-13/17GY 17 247 13 459 132 / 180 1-G2, 1-G1¾ 3445*1600*2030 3450
    LG-27/8GY 8 116 27 954 160 / 220 1-G2, 1-G1¾ 3950*1820*2285 5000
    LG-23/10GY 10 145 23 811 3910*1820*2285 3660
    LG-20/13GY 13 190 20 705 3630
    LG-30/8GY 8 116 30 1057 185 / 250 1-G2, 1-G1¾ 4050*1950*2440 5000
    LG-21/13GY 13 190 21 740 3910*1820*2285 3900
    LG-17/18GY 18 261 17 599 185 / 250 1-G2, 1-G1¾ 4115*1820*2295 4200
    LG-30/8GBY 8 116 30 1057 200 / 265 1-G2, 1-G1¾ 4050*1950*2440 5000
    LG-22/13GBY 13 190 22 775 3910*1820*2285 3900
    LG-22/17Y 17 246 22 775 200 / 265 1-G2, 1-G1¾ 3950*1820*2250 5000
    LG-35/8GY 8 116 35 1234 200 / 265 1-G2, 1-G1¾ 4050*1950*2440 5000
    LG-30/10GY 10 145 30 1057
    LG-27/13GY 13 189 27 952
    LG-40/8GY 8 116 40 1410 220 / 295 1-G2, 1-G1¾
    LG-40/8GBY 8 116 40 1410 250 / 335 1-G2, 1-G1¾
    LG-35/10GY 10 145 35 1234 250 / 335 1-G2, 1-G1¾
    LG-46/8GY 8 116 46 1621
    LG-40/10GY 10 145 40 1410
